Tractor · 2013Unverified
Mahindra mForce 100
Mahindra mForce 100 — mFORCE Series · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
3685 kg
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerTYMReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
100SshuttleReference
100Ppower shiftReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank126.0 LReference
Engine74.9 kWReference
PerkinsReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power74.9 kWReference
Fuel systemdirect injectionReference
Compression18.2:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shiftReference
12-speed power shuttleReference
Typepower shiftReference
Gears24 forward and reverseReference
Typepower shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)65.8 kWReference
Typeopen centerReference
Rear valves1 to 3Reference
Pump flow59.0 lpmReference
Steering flow26.9 lpmReference
Rear TypeIIReference
Controlposition and draftcontrolReference
Rear lift3109 kgReference
Rear Armstelescopic stabilizersReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/750/1000Reference
Engine RPM540@2220Reference
Engine RPM750@2208Reference
Engine RPM1000@2227Reference
Dimensions
Weight3685 kgReference
Front tire13.6R24Reference
Rear tire18.4R34Reference
Standard tires (ag)Front: 13.6R24. Rear: 18.4R34Reference
Length411 cmReference
Width214 cmReference
Height (cab)271 cmReference

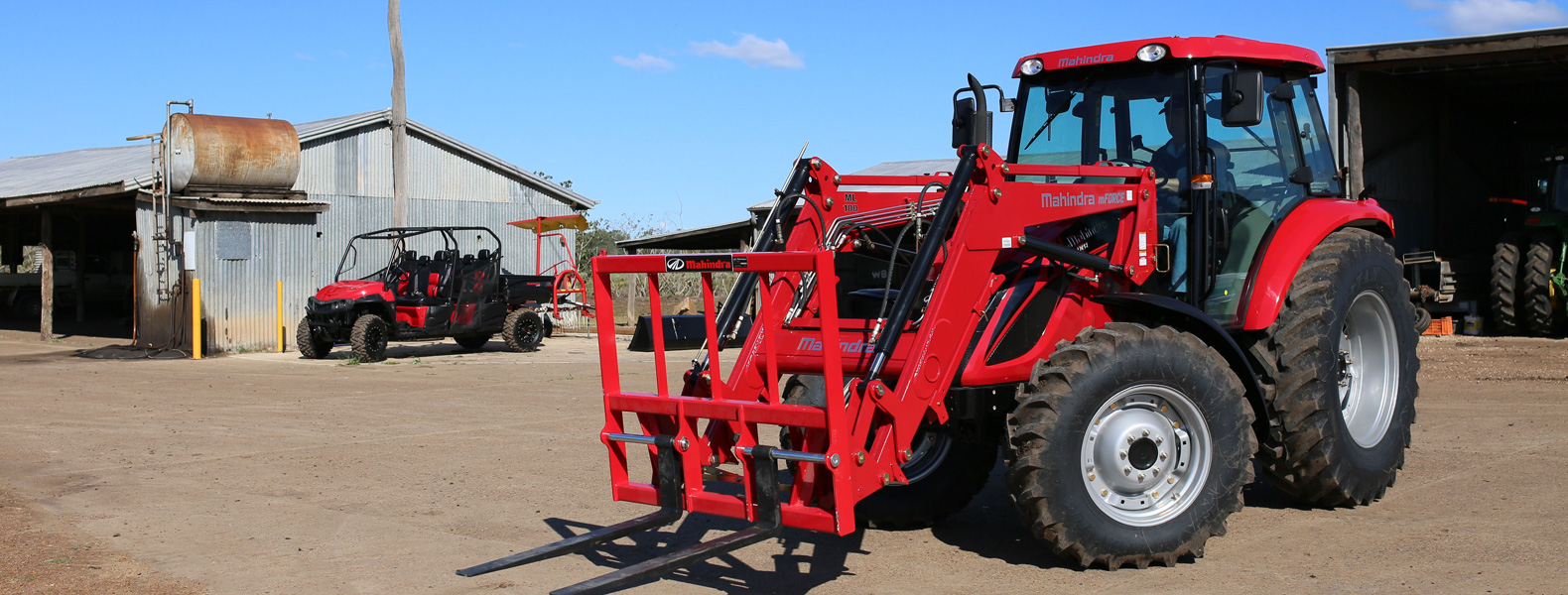

Mahindra mForce 100 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps85Reference
Charging volts12Reference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
