Tractor · 2016Unverified

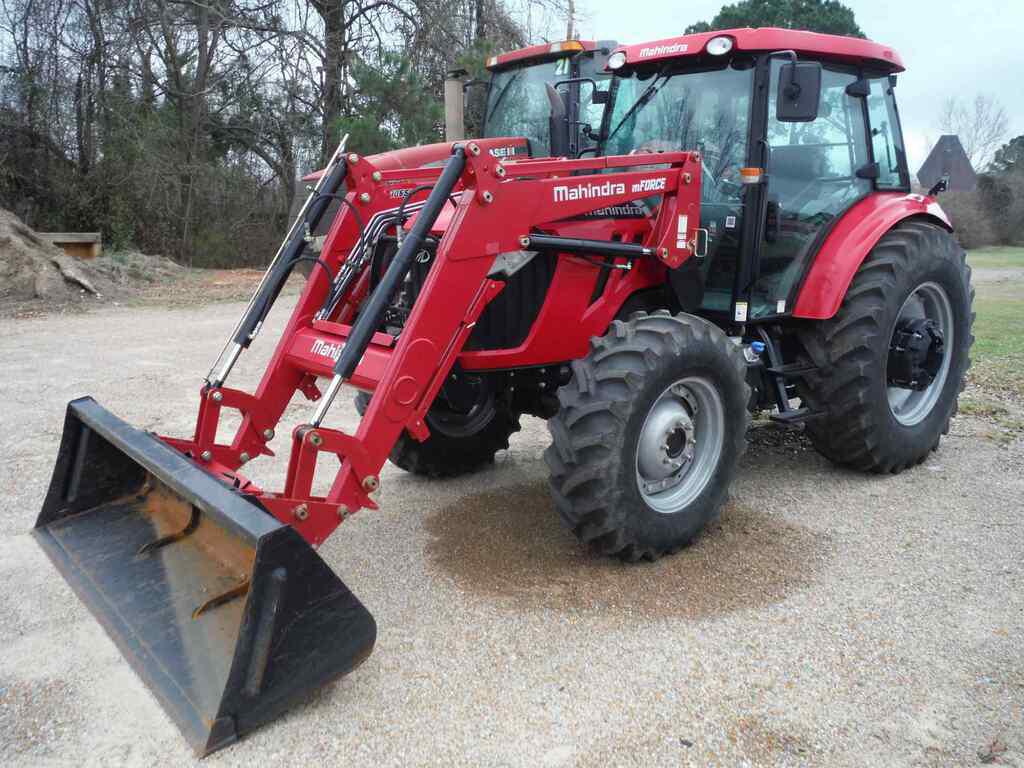

Mahindra mForce 105
Mahindra mForce 105 — mFORCE Series · 96 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Weight
3930 kg
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerTYMReference
Utility tractorReference
Original price$63,438 (2016 shuttle )Reference
Original price$69,125 (2016 power shift )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
105SshuttleReference
105Ppower shiftReference
Engine
Doosan 3.4L 4-cyl dieselReference
Fuel tank126.0 LReference
Exhaust fluid (DEF)18.9 LReference
Engine78.3 kWReference
DoosanReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke98 x 113 mmReference
EmissionsTier IVReference
Emission controldiesel exhaust fluidReference
Power78.3 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2300Reference
Torque430.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shiftReference
12-speed power shuttleReference
Typepower shiftReference
Gears24 forward and reverseReference
Clutchwet discReference
Typepower shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)71.2 kWReference
Typeopen centerReference
Rear valves2 to 4Reference
Pump flow59.0 lpmReference
Steering flow26.9 lpmReference
Rear TypeIIReference
Controlposition and draftcontrolReference
Rear lift3111 kgReference
Rear Armstelescopic stabilizersReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/750/1000Reference
Engine RPM540@2220Reference
Engine RPM750@2208Reference
Engine RPM1000@2227Reference
Dimensions
Weight3930 kgReference
Front tire13.6R24Reference
Rear tire18.4R34Reference
Standard tires (ag)Front: 13.6R24. Rear: 18.4R34Reference
Length411 cmReference
Width214 cmReference
Height (cab)271 cmReference
Mahindra mForce 105 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps85Reference
Charging volts12Reference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
