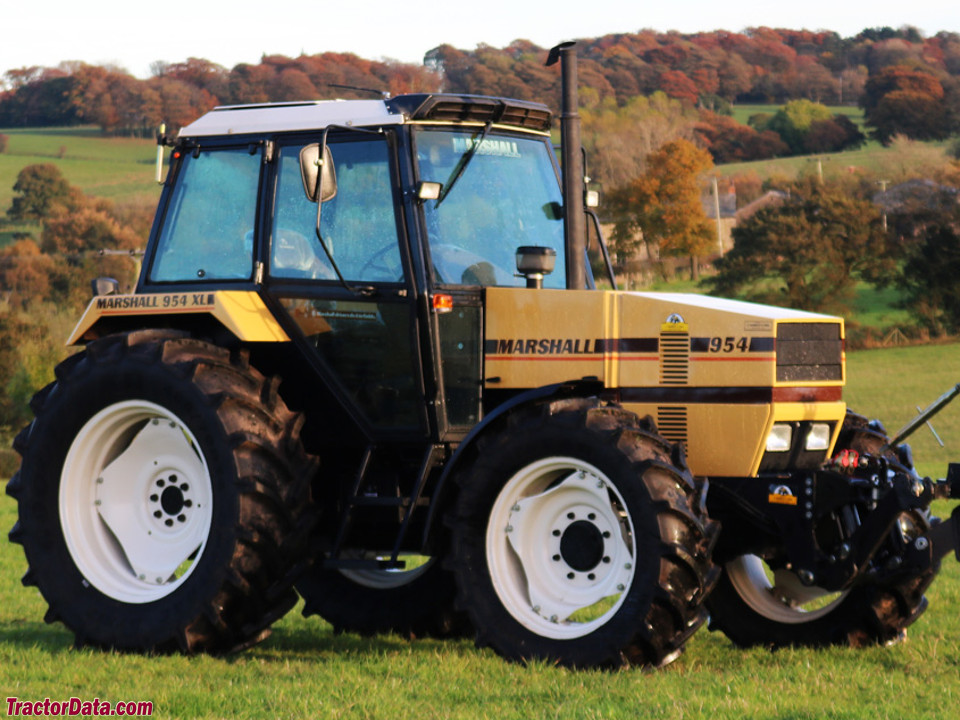

The Marshall 954 is a tractor with a rated output of 81 hp, positioned in the middle of its class in terms of power. It is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which powers four-wheel drive via a hydrostatic transmission. The tractor is suited for tasks on farms of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
81 hp
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
81 hp
Transmissions
9-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMarshallReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Explorer cab with heaterReference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank135.9 LReference
Engine70.5 kWReference
Perkins T4.236Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power70.5 kWReference
Compression16:1Reference
Rated RPM2200Reference
Oil capacity8.0 LReference
Coolant capacity14.5 LReference
Transmission
9-speedReference
15-speedReference
Gears9 forward and 3 reverseReference
Gears15 forward and 5 reverseReference
PTO & Hydraulics
PTO (claimed)60.4 kWReference
Pressure179.3 barReference
Total flow59.0 lpmReference
Rear TypeIIReference
Dimensions
Wheelbase233 cmReference
Length394 cmReference
Width195 cmReference
Height264 cmReference
Ground clearance43 cmReference
Electrical
Charging amps36Reference
Battery CCA510Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
