Tractor · 1947Unverified
Marshall Field Marshall Series II
Marshall Field Marshall Series II — Field Marshall Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Hover a source tag to verify
Overview
ManufacturerMarshallReference
Standard-tread tractorReference
Built in Gainsborough, EnglandReference
Two-wheel driveReference

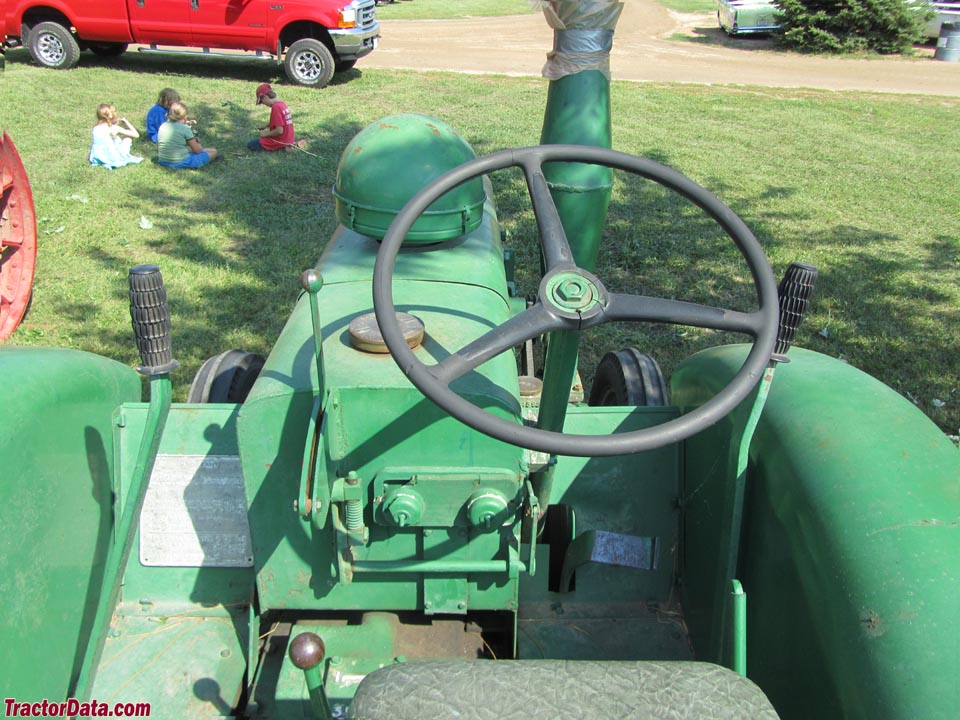

SteeringmanualReference
Open operator station.Reference
Engine
Marshall 5.1L 1-cyl dieselReference
Engine29.8 kWReference
MarshallReference
dieselReference
1-cylinderReference
Displacement5.1 LReference
Bore/Stroke168 x 229 mmReference
Power29.8 kWReference
Rated RPM750Reference
Starter typestarting cartridgeReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Series II Serial Number Location
Plate on the left side of the operator platform.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
