Tractor · 1982Unverified

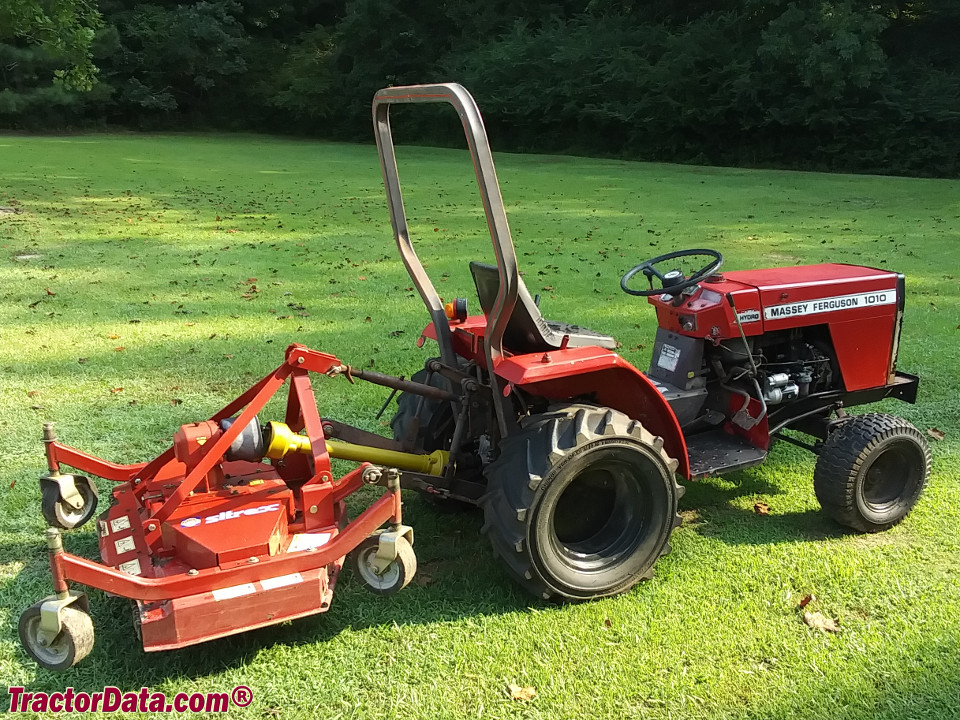

Massey Ferguson 1010
Massey Ferguson 1010 — Compact Utility tractor · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
1420 to 2000 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerToyoshaReference
Compact Utility tractorReference
Original price was $8,200 in 1994Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station. ROPS optional.Reference
Variants
1010-22WD gear driveReference
1010-44WD gear driveReference
1010H-22WD hydro driveReference
1010H-44WD hydro driveReference
Engine
Toyosha 0.9L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine11.9 kWReference
ToyoshaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke70 x 75 mmReference
Power11.9 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Rated RPM2500Reference
Starter volts12Reference
Oil capacity2.7 LReference
Coolant capacity3.5 LReference
Transmission
6-speed gearReference
hydrostaticReference
Gear Wheelbase129 cmReference
Gear Length215 cmReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch184mm dry discReference
Oil capacity17.0 LReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Gear PTO (claimed)9.7 kWReference
Hydro PTO (claimed)8.9 kWReference
Typeopen centerReference
Valves1Reference
Pump flow13.2 lpmReference
Rear TypeIReference
Rear lift (at ends)549 kgReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2365Reference
Mid PTO Type2114 (with hydro)Reference
Front PTOindependentReference
ClutchelectricReference
Dimensions
Hydro Wheelbase139 cmReference
Weight1420 to 2000 poundsReference
Front tire4.50-10Reference
Rear tire8-16Reference
Standard tires (ag)Front: 4.50-10. Rear: 8-16Reference
Standard tires (ag)Front: 5.00-12. Rear: 8-16Reference
2WD Lawn/turf front21x8.00-10Reference
4WD Lawn/turf front20.5x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Hydro Length230 cmReference
Width106 cmReference
Height (steering wheel)117 cmReference
Ground clearance26 cmReference
2WD Front tread82 cmReference
4WD Front tread88 cmReference
2WD Rear tread83 cmReference
4WD Rear tread96 cmReference
Shipping644 kgReference
Shipping730 kgReference
Shipping907 kgReference
Massey Ferguson 1010 attachments
54" mid-mount mower deckReference
bladeReference
front-end loaderReference
1010 Serial Number Location
Serial number plate below the steering column.Reference
1010 Serial Numbers
198200101 (1010-2)Reference
198300613 (1010-2)Reference
198410901 (1010-2)Reference
198511727 (1010-2)Reference
198612471 (1010-2)Reference
198713902 (1010-2)Reference
198814433 (1010-2)Reference
1989-----Reference
199014549 (1010-2)Reference
199114826 (1010-2)Reference
199214937 (1010-2)Reference
FinalunknownReference
198240101 (1010-4)Reference
198340607 (1010-4)Reference
198440809 (1010-4)Reference
198541491 (1010-4)Reference
198642317 (1010-4)Reference
198743683 (1010-4)Reference
198844498 (1010-4)Reference
198944696 (1010-4)Reference
199044886 (1010-4)Reference
199145166 (1010-4)Reference
199245362 (1010-4)Reference
198713953 (1010H-2)Reference
198814455 (1010H-2)Reference
198914549 (1010H-2)Reference
199014600 (1010H-2)Reference
199114836 (1010H-2)Reference
199215158 (1010H-2)Reference
198743640 (1010H-4)Reference
198844370 (1010H-4)Reference
198944696 (1010H-4)Reference
199044907 (1010H-4)Reference
199145175 (1010H-4)Reference
199245545 (1010H-4)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
BladeReference
Front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
