Tractor · 1978Unverified

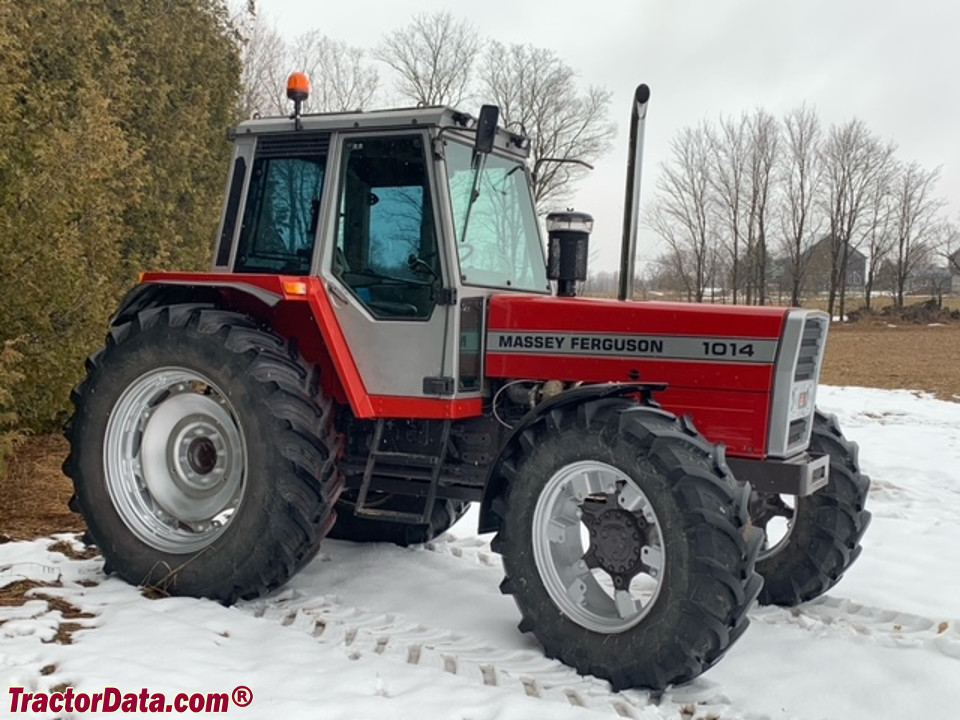

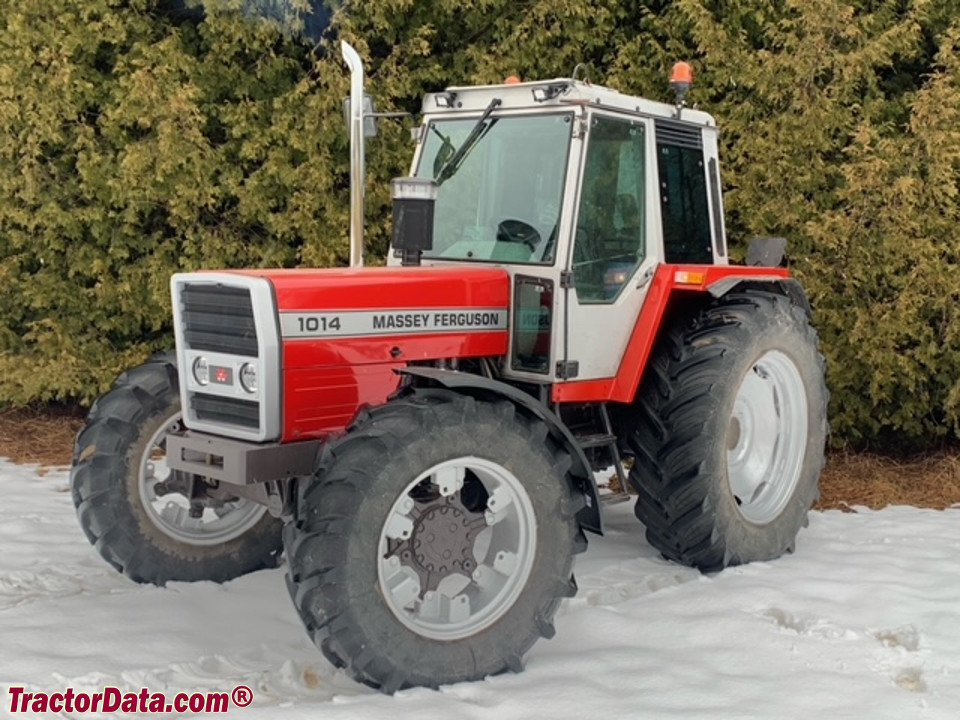

Massey Ferguson 1014
Massey Ferguson 1014 — Row-Crop tractor · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
9978 to 10904 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerLandiniReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standardReference
Engine
Perkins 5.8L 6-cyl dieselReference
Fuel tank169.9 LReference
Engine70.8 kWReference
Perkins A6.3541Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power70.8 kWReference
Rated RPM2100Reference
Torque365.0 NmReference
Torque RPM1350Reference
Transmission
12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Total flow53.0 lpmReference
Rear TypeIIReference
Rear lift4600 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2082Reference
Engine RPM1000@2090Reference
Dimensions
Wheelbase261 cmReference
Weight9978 to 10904 poundsReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16Reference
Ag rear18.4-38Reference
Ag front13.6-28Reference
Length441 cmReference
Width215 cmReference
Height (cab)283 cmReference
Weight4526 kgReference
Weight4946 kgReference
Ground clearance44 cmReference
Front tread165 cmReference
Rear tread160 to 210 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
