Tractor · 1983Unverified

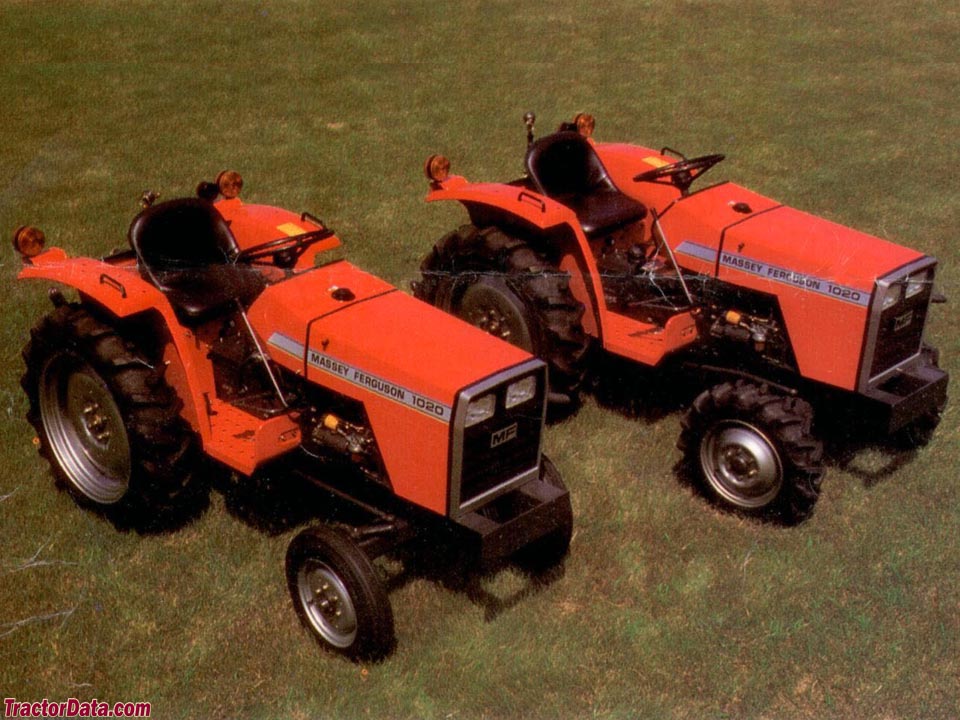

Massey Ferguson 1020

Name: Massey Ferguson 1020
Brand: Massey Ferguson

Massey Ferguson 1020 — Compact Utility tractor · 17 hp. Reference specifications; pending source verification.

The Massey Ferguson 1020 is a tractor rated at approximately 17 hp, positioning it at the lower end of its class. This model was produced between 1983 and 1994 and is equipped with a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and hydrostatic transmission. It has an operating weight of 1896 to 2723 pounds, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

17 hp

Weight

1896 to 2723 pounds

Catalogue coverage

Variants represented

Richest spec table

129 rows

Recorded power

17 hp

Recorded weight

860 kg

Transmissions

12-speed gear

Production years

1983-1994

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerToyoshaReference

Compact Utility tractorReference

Built in JapanReference

Original price was $9,700 in 1994Reference

Two- or four-wheel driveReference

SteeringmanualReference

Differential mechanical drum brakesReference

Two-post ROPS.Reference

Engine

Toyosha 1.1L 3-cyl dieselReference

Fuel tank22.0 LReference

Engine15.7 kWReference

Toyosha CS-112Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke75 x 85 mmReference

Power15.7 kWReference

Fuel systemindirect injectionReference

Air cleanersingle dry elementReference

Pre-heatingglow plugsReference

Compression23:1Reference

Rated RPM2350Reference

Firing order1-3-2Reference

Starter volts12Reference

Oil capacity2.2 LReference

Coolant capacity4.2 LReference

Fuel TypeDieselReference

No of Cylinders3-cylinderReference

Rated engine speed2,350Reference

Bore and stroke2.953x3.347 inchesReference

Compression ratio23:1Reference

Cooling systemliquid-cooledReference

Transmission

12-speed gearReference

hydrostaticReference

Gear Wheelbase144 cmReference

Gear Length240 cmReference

2WD gear Shipping weight860 kgReference

TypegearReference

Gears12 forward and 4 reverseReference

Clutch198mm dry discReference

Oil capacity17.0 LReference

Three speeds with high and low ranges and fast and slow modes.Reference

TypehydrostaticReference

Gearsinfinite forward and reverseReference

Oil capacity26.1 LReference

Transmission TypeHSTReference

PTO & Hydraulics

Gear PTO (claimed)12.7 kWReference

Hydro PTO (claimed)10.8 kWReference

Typeopen centerReference

Pump flow19.3 lpmReference

Rear TypeIReference

Gear Rear lift (at ends)699 kgReference

Hydro Rear lift (at ends)769 kgReference

Gear Rear PTOtransmissionReference

Hydro Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2226 (with hydro)Reference

Front PTOindependent (optional)Reference

ClutchelectricReference

Dimensions

Hydro Wheelbase150 cmReference

Weight1896 to 2723 poundsReference

Front tire4.00x12Reference

2WD Rear tire8.3x24Reference

2WD Standard tires (ag)Front: 4.00x12. Rear: 8.3x24Reference

4WD Standard tires (ag)Front: 6x14. Rear: 8.3x24Reference

2WD Lawn/turf front24x8.50-12Reference

4WD Lawn/turf front25x8.50-14Reference

Lawn/turf rear13.6x16Reference

Hydro Length289 cmReference

2WD Width115 cmReference

4WD Width119 cmReference

Height (steering wheel)134 cmReference

4WD hydro Shipping weight1235 kgReference

2WD Ground clearance34 cmReference

4WD Ground clearance29 cmReference

Massey Ferguson 1020 attachments

60" mid-mount mower deckReference

bladeReference

front-end loaderReference

1020 Serial Numbers

Location:Serial number plate below the dash of the Massey Ferguson 1020.Reference

198300101 (1020-2)Reference

198400411 (1020-2)Reference

198500809 (1020-2)Reference

198601548 (1020-2)Reference

198702394 (1020-2)Reference

198802707 (1020-2)Reference

198902768 (1020-2)Reference

199002913 (1020-2)Reference

199103153 (1020-2)Reference

199203262 (1020-2)Reference

198340101 (1020-4)Reference

198440395 (1020-4)Reference

198540549 (1020-4)Reference

198641002 (1020-4)Reference

198741787 (1020-4)Reference

198842273 (1020-4)Reference

198942532 (1020-4)Reference

199042963 (1020-4)Reference

199143276 (1020-4)Reference

199243647 (1020-4)Reference

198702319 (1020H-2)Reference

198802707 (1020H-2)Reference

198902768 (1020H-2)Reference

199002933 (1020H-2)Reference

199103146 (1020H-2)Reference

199203381 (1020H-2)Reference

198741709 (1020H-4)Reference

198842343 (1020H-4)Reference

198942641 (1020H-4)Reference

199043016 (1020H-4)Reference

199143264 (1020H-4)Reference

199243694 (1020H-4)Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

BladeReference

Front-end loaderReference

General

Make & ModelToyoshaReference

Capacities

Capacity68.7 ciReference

Power

Rated Power21 hpReference

PTO

Rear PTO PowerAvailableReference

Mid PTOAvailableReference

Front PTO PowerAvailableReference

Hydraulics

Hydraulics Typeopen centerReference

Rear Hitch category (SAE designation)Category IReference

Dimensions & weight

Overall Height134.4 cmReference

Steering & brakes

Steering typemanualReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
