Tractor · 1984Unverified

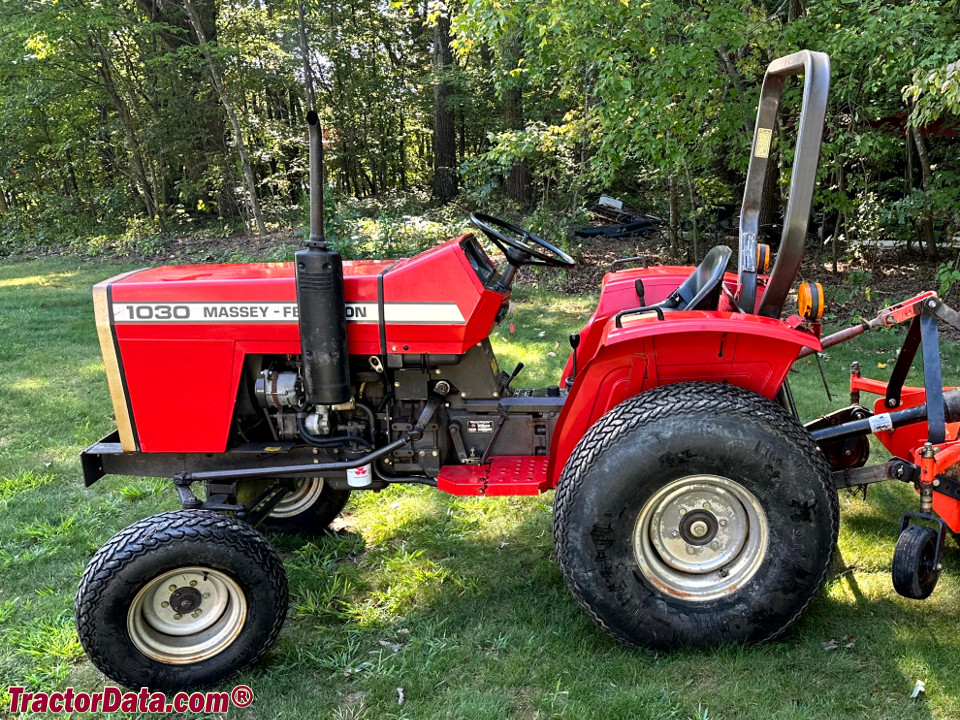

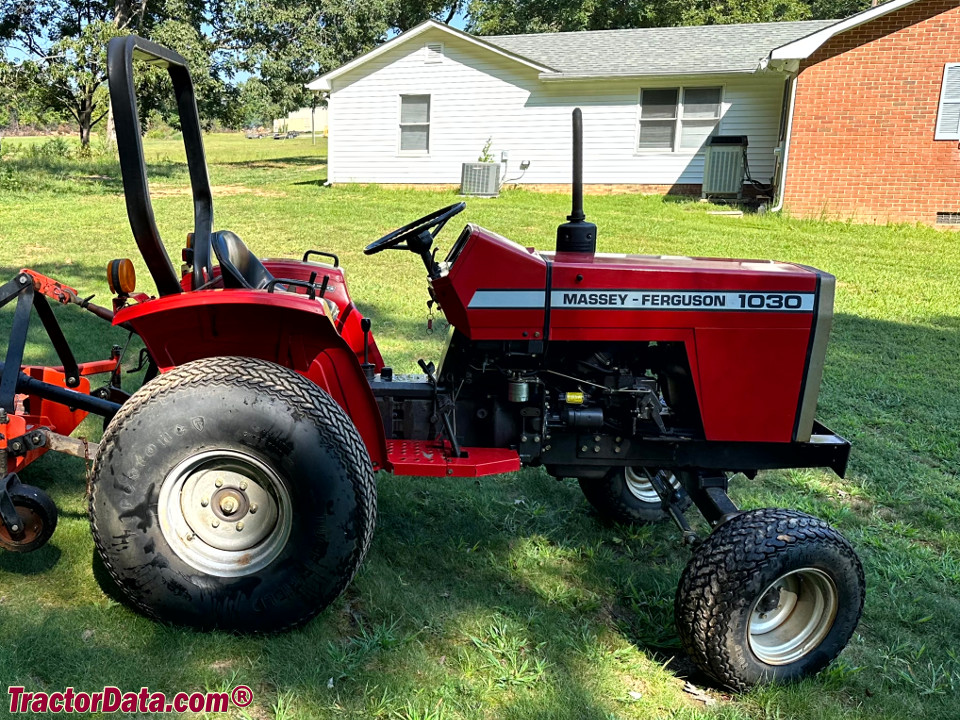

Massey Ferguson 1030
Massey Ferguson 1030 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Max power
13.6 kW
Weight
2398 to 2815 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerToyoshaReference
Compact Utility tractorReference
Original price was $12,000 in 1991Reference
Two- or four-wheel driveReference
Steeringmanual (2WD)Reference
Steeringpower assist (4WD)Reference
Differential mechanical disc brakesReference
Open operator station. Two-post ROPS available.Reference
Variants
1030Lindustrial tow tractorReference
Engine
Toyosha 1.4L 3-cyl dieselReference
Fuel tank29.5 LReference
Engine19.4 kWReference
Drawbar (tested)13.6 kWReference
Toyosha MS142Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke82 x 90 mmReference
Power19.4 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2500Reference
Firing order1-3-2Reference
Starter volts12Reference
Oil capacity3.5 LReference
Coolant capacity4.2 LReference
Power at rated engine speed17.4 kWReference
Max power13.6 kWReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 3 reverseReference
Clutch215.9mm dry discReference
Oil capacity28.0 LReference
Four gears (1-4) plus reverse (R) in three ranges (L/M/H).Reference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
PTO (tested)17.4 kWReference
Typeopen centerReference
Pump flow20.4 lpmReference
Rear TypeIReference
Rear lift (at ends)784 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Front PTOindependentReference
ClutchelectricReference
Power at rated PTO speed17.0 kWReference
Dimensions
Wheelbase155 cmReference
Weight2398 to 2815 poundsReference
Front tire5.00x15Reference
Rear tire11.2x24Reference
Ag front5.00x15 (2WD)Reference
Ag front6.00x14 (4WD)Reference
Ag rear11.2x24Reference
Lawn/turf front24x8.50-12Reference
Lawn/turf rear13.6x16Reference
Length267 cmReference
Width133 cmReference
Height (steering wheel)145 cmReference
Height (steering wheel)143 cmReference
Ground clearance39 cmReference
Ground clearance29 cmReference
Shipping1087 kgReference
Shipping1177 kgReference
Operating1276 kgReference
Massey Ferguson 1030 attachments
72" mid-mount mower deckReference
bladeReference
front-end loaderReference
backhoeReference
1030 Serial Number Location
Serial number plate on the right side of the transmission housing.Reference
1030 Serial Numbers
198400101 (2WD)Reference
198500820 (2WD)Reference
198601501 (2WD)Reference
198702542 (2WD)Reference
198803139 (2WD)Reference
198903285 (2WD)Reference
199003308 (2WD)Reference
199103686 (2WD)Reference
199203917 (2WD)Reference
198440101 (4WD)Reference
198540600 (4WD)Reference
198641245 (4WD)Reference
198742167 (4WD)Reference
198842594 (4WD)Reference
198942953 (4WD)Reference
199043251 (4WD)Reference
199143492 (4WD)Reference
199244024 (4WD)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
BladeReference
Front-end loaderReference
BackhoeReference
72" Mower deck
Typemid-mount Massey Ferguson 1019Reference
Cutting width182 cmReference
Massey Ferguson 1017 Backhoe
Backhoe typeMassey Ferguson 1017 BackhoeReference
Test results
Diesel 12-speed 4WDMarch 18 - 28, 1985Link: Nebraska Tractor Test 1553 fileReference
PTO performanceReference
Fuel use6.8 l/hourReference
Drawbar performanceReference
Max pull1032 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
