Tractor · 1986Unverified

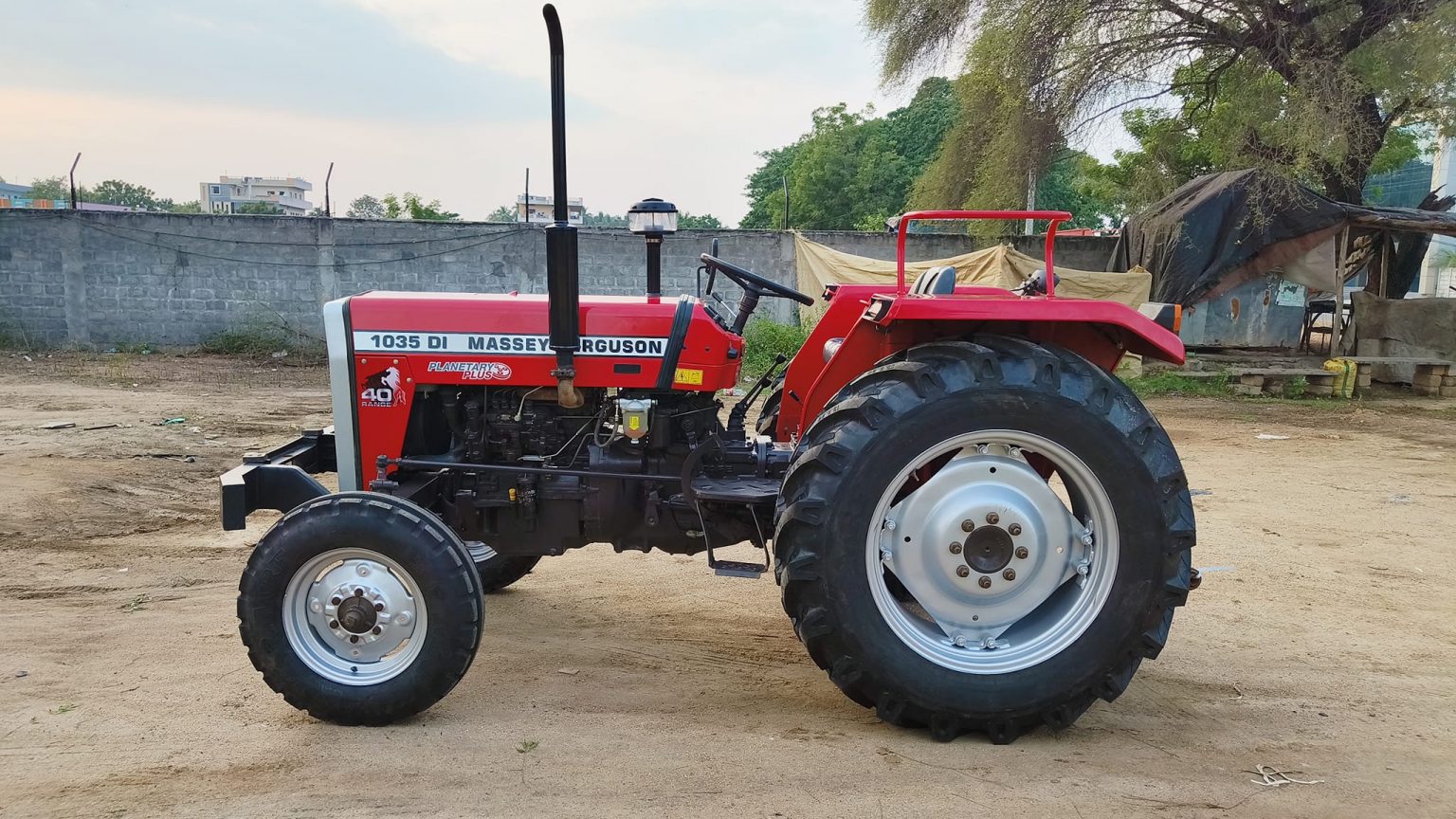

Massey Ferguson 1035
Massey Ferguson 1035 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
2711 to 2935 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerToyoshaReference
Compact Utility tractorReference
Original price was $12,400 in 1991Reference
Two- or four-wheel driveReference
SteeringpowerReference
Two-post ROPS.Reference
Engine
Toyosha 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine23.1 kWReference
Toyosha MS150Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke82 x 95 mmReference
Power23.1 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Compression23:1Reference
Rated RPM2600Reference
Firing order1-3-2Reference
Starter volts12Reference
Oil capacity3.5 LReference
Coolant capacity4.0 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Clutch215mm dry discReference
Oil capacity28.0 LReference
PTO & Hydraulics
PTO (claimed)19.4 kWReference
Typeopen centerReference
Pump flow22.7 lpmReference
Rear TypeIReference
Rear lift (at ends)1010 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase170 cmReference
Weight2711 to 2935 poundsReference
Front tire5.00-15Reference
Rear tire13.6-24 (2WD)Reference
Standard tires (ag)Front: 5.00-15. Rear: 13.6-24 (2WD)Reference
Standard tires (ag)Front: 7.00-16. Rear: 13.6-24 (4WD)Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear43x13.5-22Reference
Length296 cmReference
Width150 cmReference
Height (steering wheel)154 cmReference
Shipping weight1229 kgReference
Shipping weight1331 kgReference
Massey Ferguson 1035 attachments
72" mid-mount mower deckReference
bladeReference
front-end loaderReference
backhoeReference
1035 Serial Number Location
Serial number plate on the right side of the transmission housing.Reference
1035 Serial Numbers
198600100 (2WD)Reference
198700315 (2WD)Reference
1988-----Reference
198900540 (2WD)Reference
199000585 (2WD)Reference
199100729 (2WD)Reference
199200872 (2WD)Reference
198640100 (4WD)Reference
198740377 (4WD)Reference
198840691 (4WD)Reference
198940936 (4WD)Reference
199041058 (4WD)Reference
199141223 (4WD)Reference
199241388 (4WD)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
BladeReference
Front-end loaderReference
BackhoeReference
72" Mower deck
Typemid-mount Massey Ferguson 1019Reference
Cutting width182 cmReference
Massey Ferguson 1017 Backhoe
Backhoe typeMassey Ferguson 1017 BackhoeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
