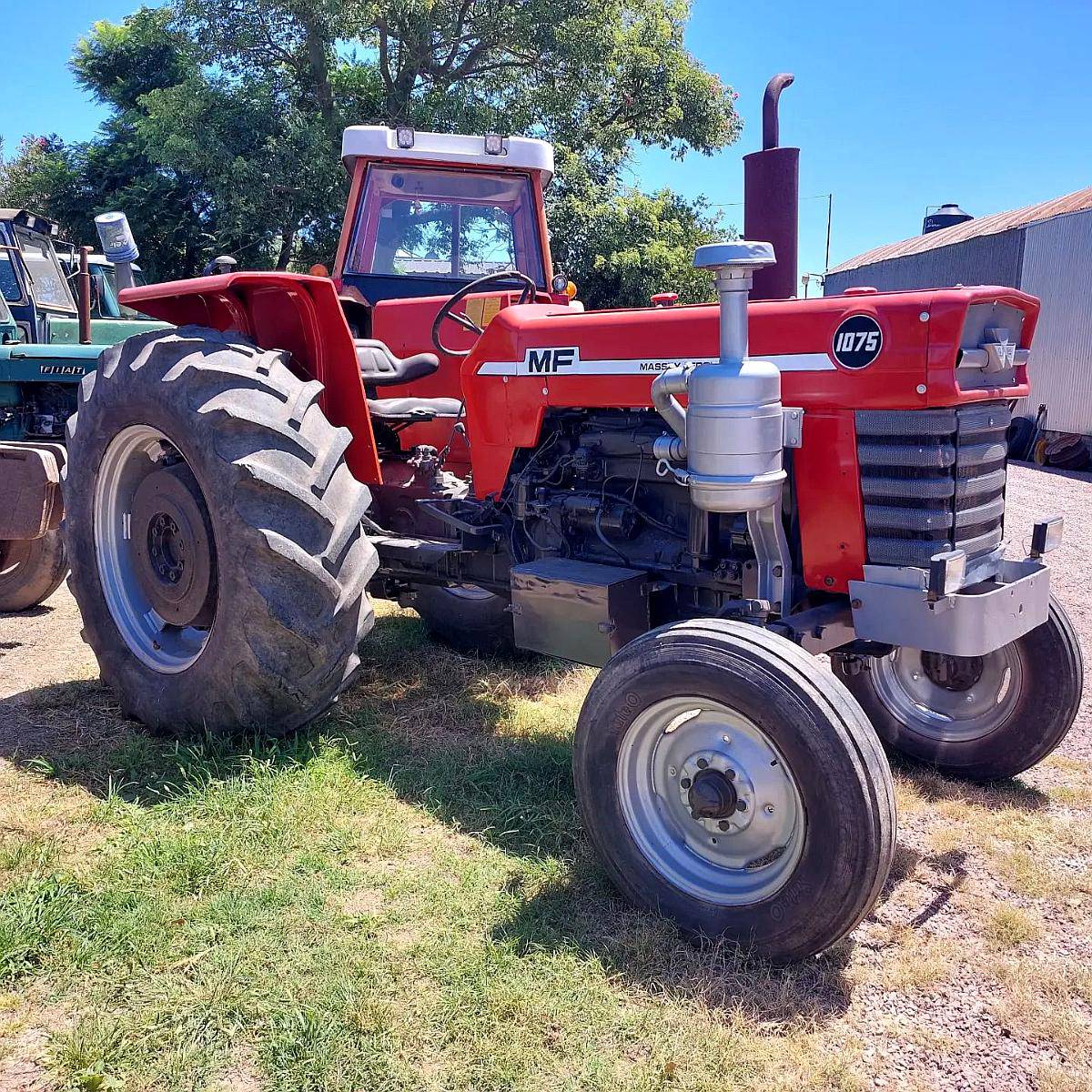

The Massey Ferguson 1075 is a tractor with a rated power of 75 hp, a mid-range figure for its class. It was built in 1975. Power comes from a 6-cylinder diesel liquid-cooled engine, paired with two-wheel drive with a 8-speed gearbox. It suits operations of up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Recorded power
75 hp
Transmissions
8-speed
Production years
1975-1975
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Two-wheel driveReference
Differential lockstandardReference
Dry disc brakesReference
Open operator station. Cab optional.Reference
Engine
Perkins 5.0L 6-cyl dieselReference
Engine55.9 kWReference
Perkins A6.305Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.0 LReference
Bore/Stroke91 x 127 mmReference
Power55.9 kWReference
Air cleaneroil bathReference
Compression17.4:1Reference
Rated RPM2000Reference
Oil capacity13.7 LReference
Coolant capacity10.0 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Oil capacity34.1 LReference
Capacities
Fuel85.2 LReference
PTO & Hydraulics
Hydraulic system34.1 LReference
Capacity34.1 LReference
Pump flow14.0 lpmReference
Rear TypeIIReference
Rear lift1769 kgReference
Rear PTOlive (two-stage clutch)Reference
Dimensions
Front tire6.5x16Reference
Rear tire18.4/15x30Reference
Ag front6.5x16Reference
Ag front7.5x16Reference
Ag rear18.4/15x30Reference
Ag rear18.4/15x34Reference
Ag rear15.5x38Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
