Tractor · 1973Unverified

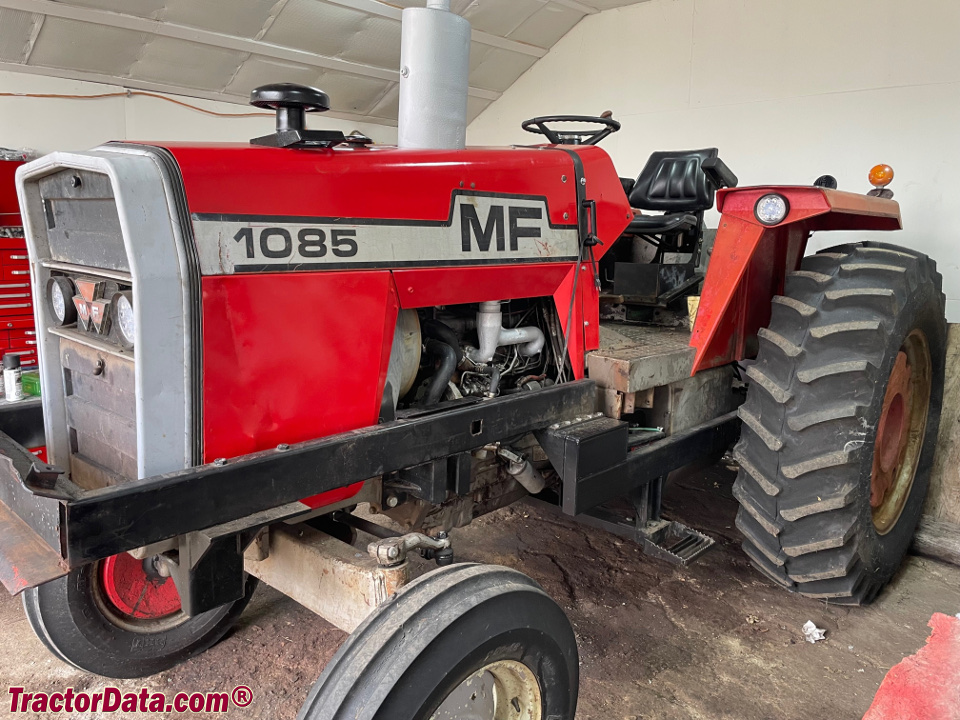

Massey Ferguson 1085
Massey Ferguson 1085 — Row-Crop tractor · 82 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Max power
51.6 kW
Weight
8400 to 11540 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Detroit, Michigan, USAReference
Original price was $17,000 in 1978Reference
Two-wheel driveReference
Power steeringReference
Mechanical disc brakesReference
Open operator station. Optional cab and air-conditioning.Reference
Engine
Perkins 5.2L 4-cyl dieselReference
Drawbar (tested)51.6 kWReference
Perkins A4.318Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement5.2 LReference
Bore/Stroke114 x 127 mmReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17.5:1Reference
Rated RPM2000Reference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity15.6 LReference
Power at rated engine speed60.8 kWReference
Max power51.6 kWReference
Transmission
12-speed partial power shiftReference
8-speed gearReference
TransmissionMulti-PowerReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Clutch304mm dry discReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)60.4 kWReference
PTO (tested)60.8 kWReference
Hydraulic system32.2 LReference
Capacity32.2 LReference
Pressure158.6 barReference
SCV flow37.9 lpmReference
Steering flow18.9 lpmReference
Rear TypeII/IIIReference
Controlposition and draft controlReference
Rear lift1610 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Engine RPM540@1700Reference
Engine RPM1000@2000Reference
Capacities
Fuel170.3 LReference
Dimensions
Wheelbase247 cmReference
Weight8400 to 11540 poundsReference
Front tire10.00-16Reference
Rear tire18.4-34Reference
Ag front10.00-16Reference
Ag rear18.4-34Reference
Ag front6.00-16Reference
Ag front7.50-16Reference
Ag front9.5L-15Reference
Ag front7.50-18Reference
Ag rear13.6-38Reference
Ag rear15.5-38Reference
Ag rear16.9-34Reference
Ag rear16.9-38Reference
Ag rear23.1-30Reference
Length390 cmReference
Width290 cmReference
Height (steering wheel)200 cmReference
Clearance (drawbar)42 cmReference
Front tread155 to 219 cmReference
Front tread156 cmReference
Rear tread177 to 238 cmReference
Rear tread177 to 289 cmReference
Shipping3810 kgReference
Shipping4581 kgReference
Operating5234 kgReference
Ballasted6525 kgReference
Massey Ferguson 1085 attachments
front-end loaderReference
1085 Serial Numbers
Location:In front of instrument panel on left side.Reference
19729B36563Reference
19739B36841Reference
19749B42685Reference
19759B50494Reference
19769B58735Reference
19779B66276Reference
19789B74241Reference
19799B76058Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 12-speed 2WDMay 29 - June 8, 1973Link: Nebraska Tractor Test 1133 fileReference
PTO performanceReference
Fuel use19.7 l/hourReference
Drawbar performanceReference
Fuel use19.3 l/hourReference
Gear 1-Hi-L used for power test.Reference
Max pull4697 kgReference
Gear 2-Lo-L used for pull test.Reference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
