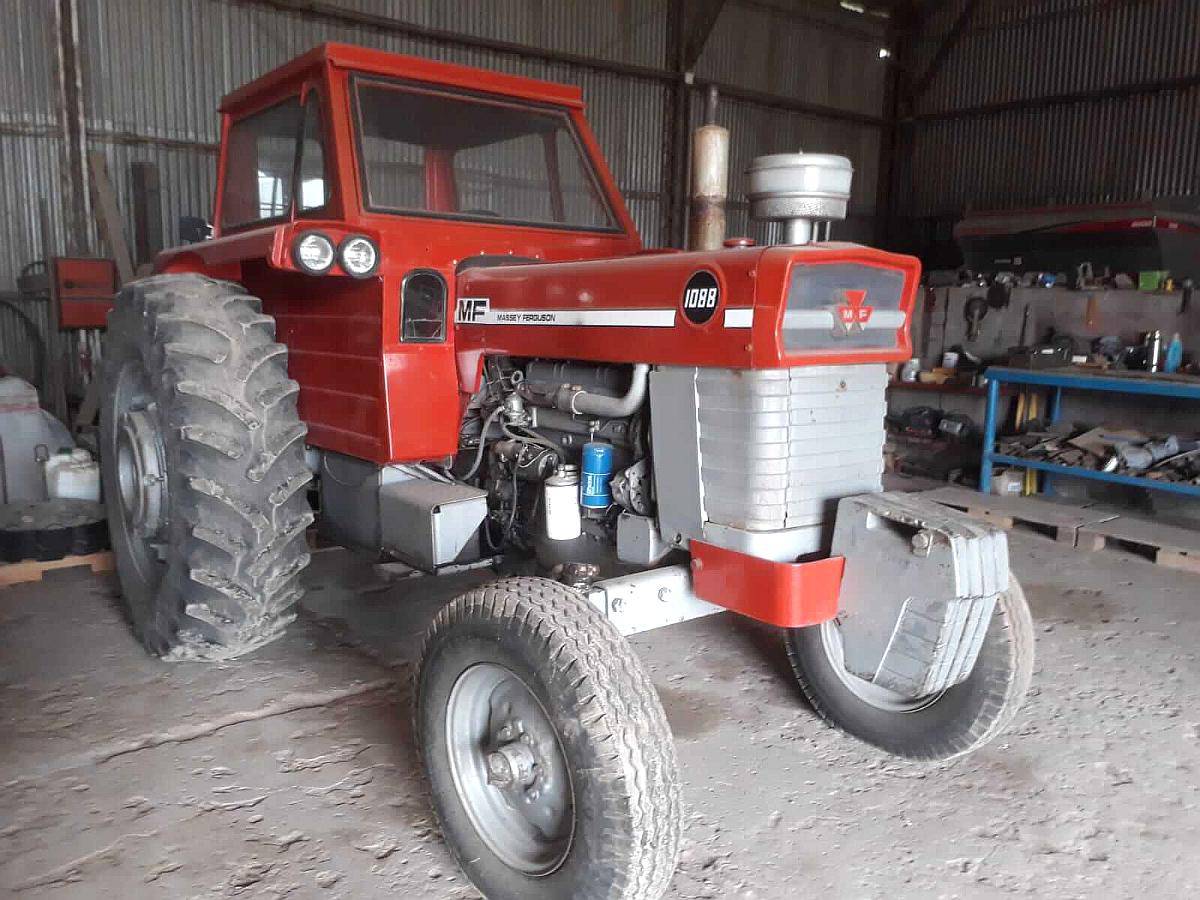

The Massey Ferguson 1088 is a tractor model with an engine rating of approximately 87 hp, a typical output for its class. It was produced from 1972 to 1977. The 1088 features a 6-cylinder diesel liquid-cooled engine, combined with two-wheel drive and an 8-speed gearbox. It has an operating weight of 5115 kg and is designed for use on areas up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
5115 kg
Catalogue coverage
Variants represented
2
Richest spec table
47 rows
Recorded power
87 hp
Recorded weight
5115 kg
Transmissions
8-speed gear
Production years
1972-1977
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Granadero Baigorria, Santa Fe, ArgentinaReference
Two-wheel driveReference
Power steeringReference
Disc brakesReference
Open operator station.Reference
Engine
Perkins 5.0L 6-cyl dieselReference
Engine64.9 kWReference
Perkins A.6-305Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.0 LReference
Bore/Stroke91 x 127 mmReference
Power64.9 kWReference
Rated RPM2250Reference
StarterelectricReference
Starter volts12Reference
Oil capacity13.7 LReference
Coolant capacity17.0 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch304.8mm dry discReference
Oil capacity34.0 LReference
Capacities
Fuel115.1 LReference
PTO & Hydraulics
Hydraulic system34.1 LReference
Capacity34.1 LReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1680Reference
Dimensions
Wheelbase234 cmReference
Weight5115 kgReference
Front tire7.50x18Reference
Rear tire23.1x30Reference
Ag front7.50x18Reference
Ag rear23.1x30Reference
Ag rear18.4x34Reference
Length370 cmReference
Width231 cmReference
Height (steering wheel)183 cmReference
Ground clearance41 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts12Reference
Battery AH86Reference
Speeds
With 23.1x30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
