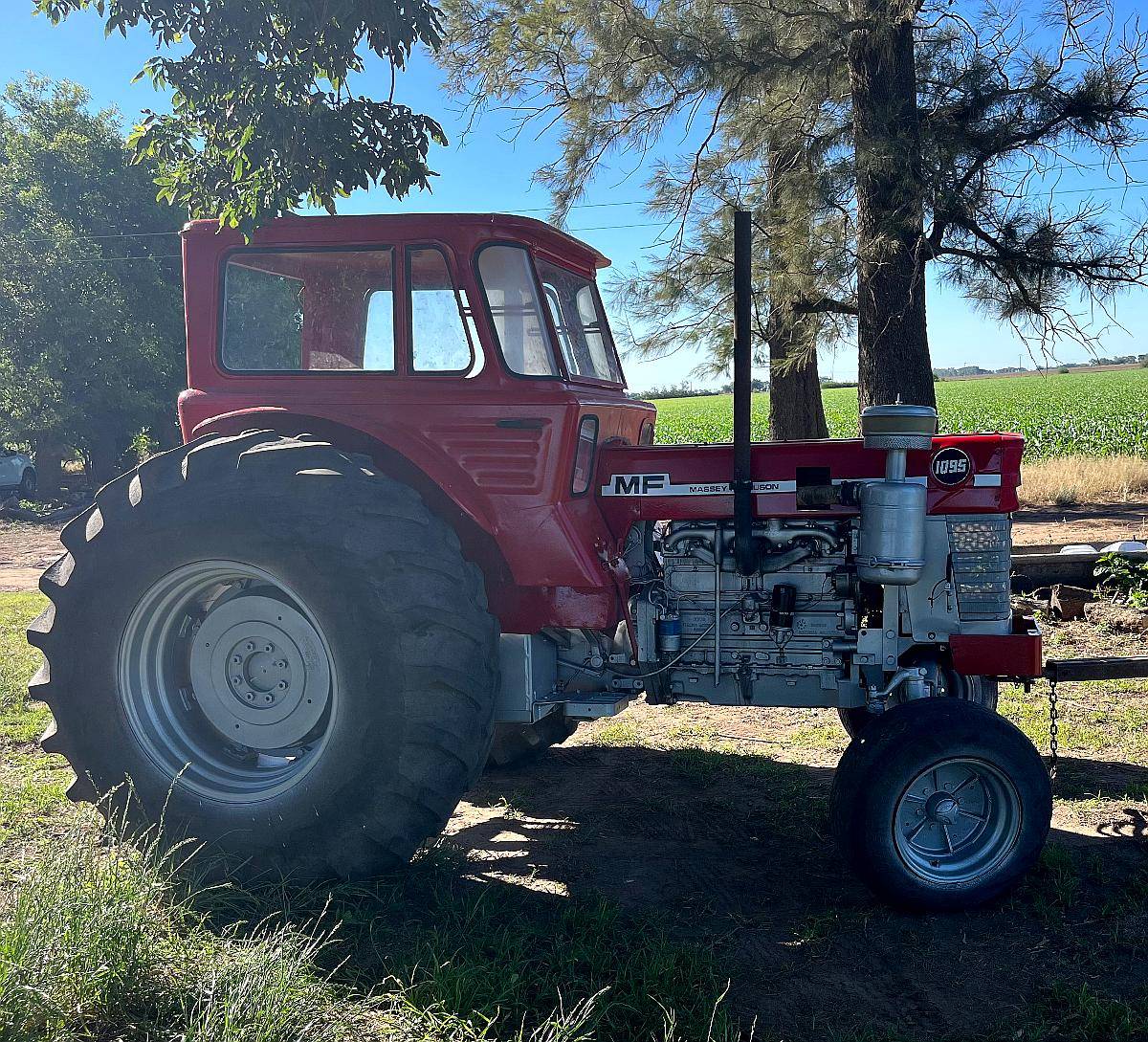

The Massey Ferguson 1095 is a tractor with a power rating of 95 hp, situating it in the central range of its class. Manufactured from 1972 to 1977, this model features a 6-cylinder diesel liquid-cooled engine and a two-wheel drive system with an 8-speed gearbox. Its listed weight is 5426 kg, and it is designed for applications involving approximately 200-800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
5426 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
95 hp
Recorded weight
5426 kg
Transmissions
8-speed gear
Production years
1972-1977
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Granadero Baigorria, Santa Fe, ArgentinaReference
Two-wheel driveReference
Power steeringReference
Disc brakesReference
Open operator station.Reference
Engine
Perkins 5.8L 6-cyl dieselReference
Engine70.8 kWReference
Perkins A.6-354Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power70.8 kWReference
Compression16:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch304.8mm dry discReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM540@1700Reference
Dimensions
Wheelbase245 cmReference
Weight5426 kgReference
Front tire7.50x18Reference
Rear tire18.4-34Reference
Ag front7.50x18Reference
Ag rear18.4-34Reference
Ag front11.0x16Reference
Ag rear24.5-32Reference
Ag rear23.1-26Reference
Length364 cmReference
Width209 cmReference
Height (steering wheel)180 cmReference
Ground clearance55 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps32Reference
Batteries2Reference
Battery volts12Reference
Battery AH86Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
