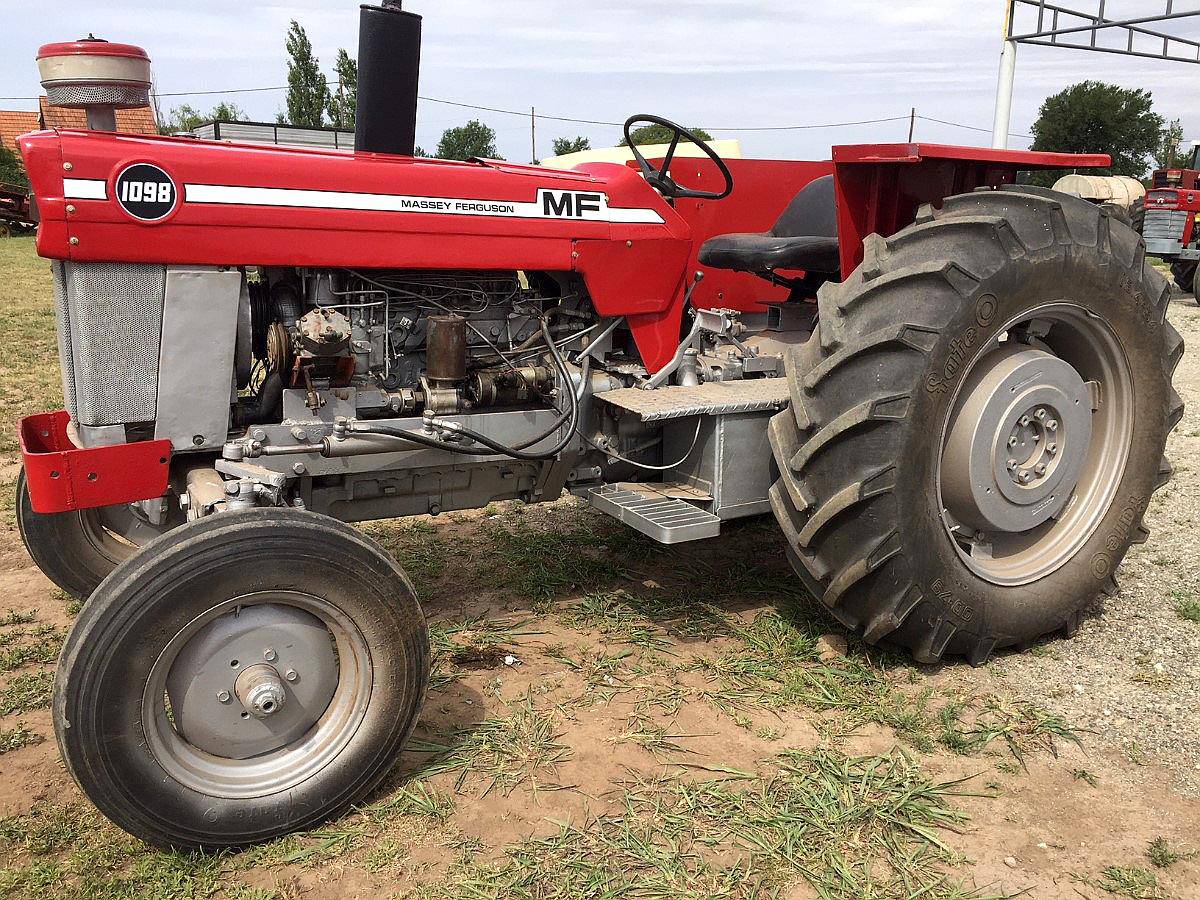

The Massey Ferguson 1098 is a tractor with an engine rating of approximately 106 hp, categorised as a mid-range in its class. It was manufactured between 1972 and 1977. The 1098 features a 6-cylinder diesel liquid-cooled engine, paired with two-wheel drive and an 8-speed gearbox. Its operating weight is listed at 6026 kg, with a suitable operating area of 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
106 hp
Weight
6026 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
106 hp
Recorded weight
6026 kg
Transmissions
8-speed gear
Production years
1972-1977
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Granadero Baigorria, Santa Fe, ArgentinaReference
Two-wheel driveReference
Power steeringReference
Disc brakesReference
Open operator station.Reference
Engine
Perkins 5.8L 6-cyl dieselReference
Engine79.0 kWReference
Perkins A.6-354Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power79.0 kWReference
Rated RPM2250Reference
StarterelectricReference
Starter volts12Reference
Oil capacity16.5 LReference
Coolant capacity20.0 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch304.8mm dry discReference
Oil capacity34.0 LReference
Capacities
Fuel141.9 LReference
PTO & Hydraulics
Hydraulic system34.1 LReference
Capacity34.1 LReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1680Reference
Dimensions
Wheelbase242 cmReference
Weight6026 kgReference
Front tire11.00x16Reference
Rear tire24.5x32Reference
Ag front11.00x16Reference
Ag rear24.5x32Reference
Ag front7.50x18Reference
Ag rear18.4x34Reference
Length377 cmReference
Width254 cmReference
Height (steering wheel)185 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts12Reference
Speeds
With 24.5x32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
