Tractor · 1964Unverified

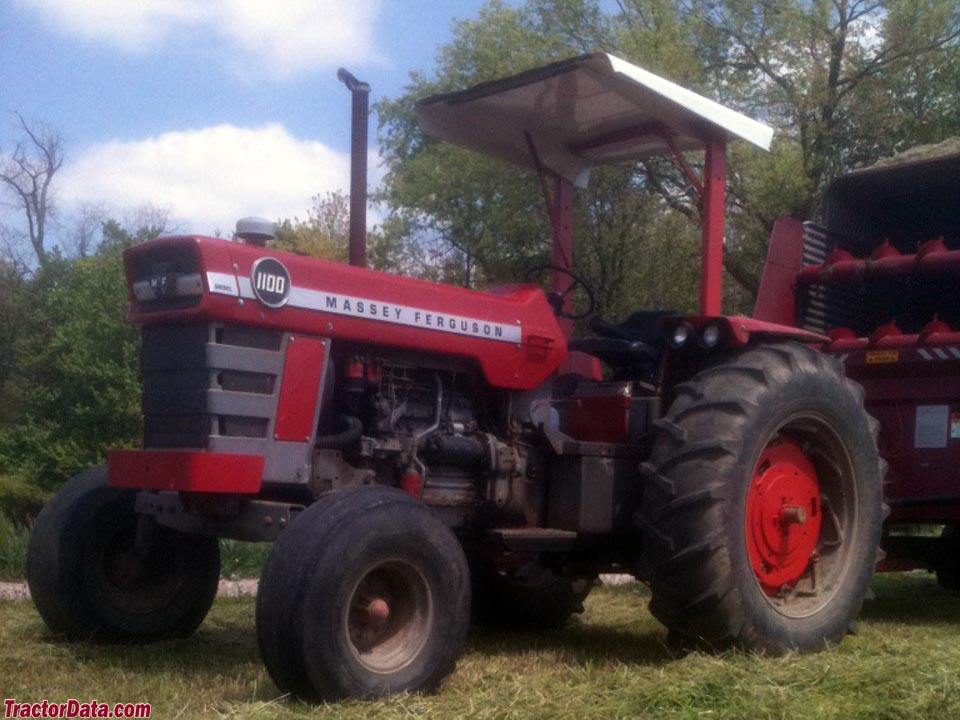

Massey Ferguson 1100

Name: Massey Ferguson 1100
Brand: Massey Ferguson

Massey Ferguson 1100 — Row-Crop tractor · 94 hp. Reference specifications; pending source verification.

The Massey Ferguson 1100 is a tractor with a rated output of 94 hp, positioning it in the middle of its class in terms of power. Manufactured from 1964 to 1972, it is powered by a 6-cylinder diesel liquid-cooled engine, coupled with a powershift transmission driving through two-wheel drive. The listed weight of the tractor ranges from 9000 to 11435 pounds, suitable for tasks covering approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

94 hp

Max power

63.1 kW

Weight

9000 to 11435 pounds

Catalogue coverage

Variants represented

Richest spec table

144 rows

Recorded power

94 hp

Transmissions

12-speed two-speed power shift

Production years

1964-1972

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Original price was $7,700 in 1972Reference

Two-wheel driveReference

Final drivesplanetaryReference

Differential lockhydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Open operator station. Cab optional with available air-conditioning.Reference

Engine

Perkins 5.8L 6-cyl dieselReference

Waukesha 5.2L 6-cyl gasolineReference

Waukesha 5.2L 6-cyl LP gasReference

Drawbar (claimed)63.4 kWReference

Drawbar (tested)63.1 kWReference

Perkins A6.534Reference

dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement5.8 LReference

Bore/Stroke98 x 127 mmReference

Air cleanerdryReference

Compression16:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity15.1 LReference

Coolant capacity20.8 LReference

Waukesha F 320-GReference

gasolineReference

liquid-cooledReference

Displacement5.2 LReference

Bore/Stroke105 x 102 mmReference

Compression7.6:1Reference

WaukeshaReference

LP gasReference

Compression9:1Reference

Power at rated engine speed70.1 kWReference

Max power63.1 kWReference

Power at rated engine speed67.3 kWReference

Max power55.1 kWReference

Fuel TypeOption 1: Diesel\\nOption 2: Gasoline\\nOption 3: LPGReference

No of Cylinders6-cylinderReference

Rated engine speed2,200Reference

Bore and strokeOption 1: 3.875x5.00 inches\\nOption 2: 4.125x4.00 inchesReference

Compression ratioOption 1: 16:1\\nOption 2: 8:1\\nOption 3: 9:1Reference

Cooling systemOption 1: liquid-cooled inline\\nOption 2: liquid-cooledReference

Transmission

12-speed two-speed power shiftReference

6-speed gearReference

TransmissionMulti-PowerReference

Typetwo-speed power shiftReference

Gears12 forward and 4 reverseReference

Clutch279.4mm dry discReference

Three gears (1-3) plus reverse (R) in two ranges (low/high) with two-range Multi-Power power shift.Reference

TypegearReference

Gears6 forward and 2 reverseReference

Transmission TypePowershiftReference

PTO & Hydraulics

PTO (claimed)70.1 kWReference

PTO (tested)70.1 kWReference

Hydraulic system64.3 LReference

Typeclosed centerReference

Capacity64.3 LReference

Pressure189.3 barReference

Valves1Reference

Pump flow75.7 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)2358 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000 (1.375)Reference

Power at rated PTO speed66.2 kWReference

Power at rated PTO speed62.4 kWReference

Capacities

Open Fuel132.5 LReference

Cab Fuel189.2 LReference

Dimensions

Wheelbase259 cmReference

Weight9000 to 11435 poundsReference

Front tire7.50-18Reference

Rear tire15.5-38Reference

Ag front7.50-18Reference

Ag rear15.5-38Reference

Ag front7.50-16Reference

Ag front11.00-16Reference

Ag rear18.4-34Reference

Ag rear18.4-38Reference

Ag rear23.1-34Reference

Length409 cmReference

Width270 cmReference

Height (steering wheel)189 cmReference

Height (cab)288 cmReference

Ground clearance43 cmReference

Rear axle82 mmReference

Front tread142 to 203 cmReference

Rear tread152 to 243 cmReference

Rear tread152 to 304 cmReference

Shipping4082 kgReference

Operating4198 kgReference

Operating5186 kgReference

Ballasted6767 kgReference

1100 Serial Numbers

Location:Right side of tractor.Reference

1965650000174Reference

1966650001997Reference

1967650005482Reference

19679B10001Reference

19689B14693Reference

19699B18673Reference

19709B23486Reference

19719B28238Reference

19729B31959Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Gas Batteries1Reference

Diesel Batteries2Reference

Battery volts12Reference

Battery AH96Reference

Test results

NTTL 923: diesel 12-speed 2WDReference

NTTL 963: gasoline 12-speed 2WDReference

Diesel 12-speed 2WDOctober 27 - November 1, 1965Link: Nebraska Tractor Test 923 fileReference

PTO performanceReference

Fuel use23.1 l/hourReference

Fuel use21.2 l/hourReference

Drawbar performanceReference

Fuel use23.5 l/hourReference

Gear 5 used for power test.Reference

Max pull5044 kgReference

Gear 1L HP-High used for pull test.Reference

Gasoline 12-speed 2WDJune 17 - July 6, 1967Link: Nebraska Tractor Test 963 fileReference

Fuel use31.4 l/hourReference

Fuel use28.8 l/hourReference

Max pull4619 kgReference

General

Make & ModelMassey FergusonReference

Country of manufacturerRow-Crop tractorReference

PTO

Rear PTO PowerAvailableReference

Steering & brakes

Brakeshydraulic discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeclosed centerReference

Maximum operating pressure2,745 psiReference

Remote Valves1Reference

Rear Hitch category (SAE designation)Category IIReference

Dimensions & weight

Overall Height189.5 cmReference

Overall Length410 cmReference

Overall Width270 cmReference

Wheels & tyres

Rear wheel tread range15.5-38 inchReference

Front Wheel tread rangeOption 1: 7.50-18\\nOption 2: 56 to 8 inchesReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
