Tractor · 1993Unverified

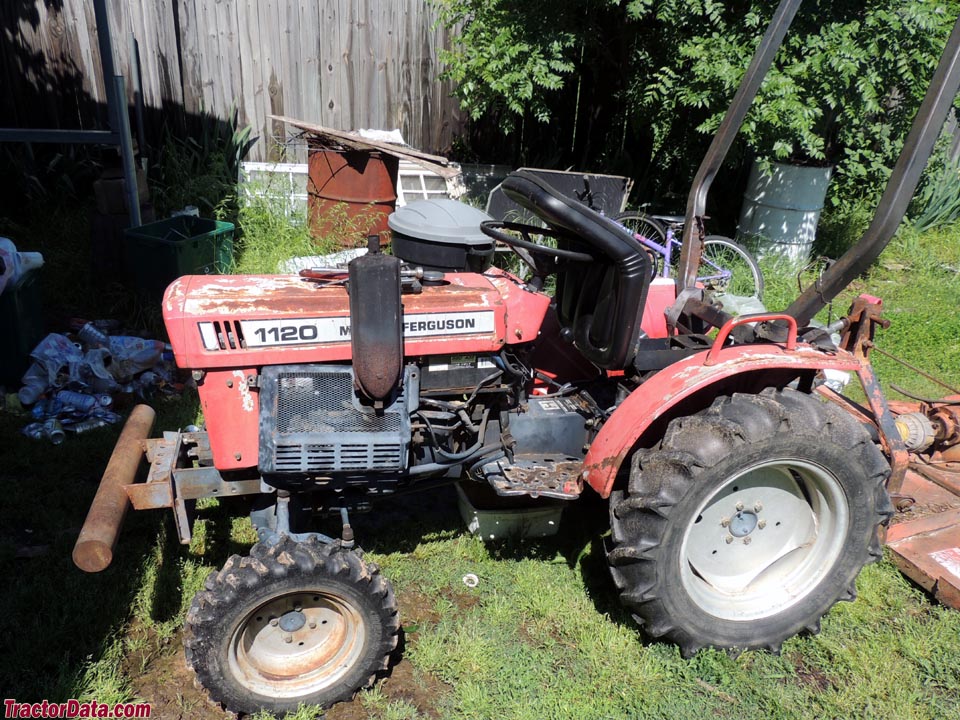

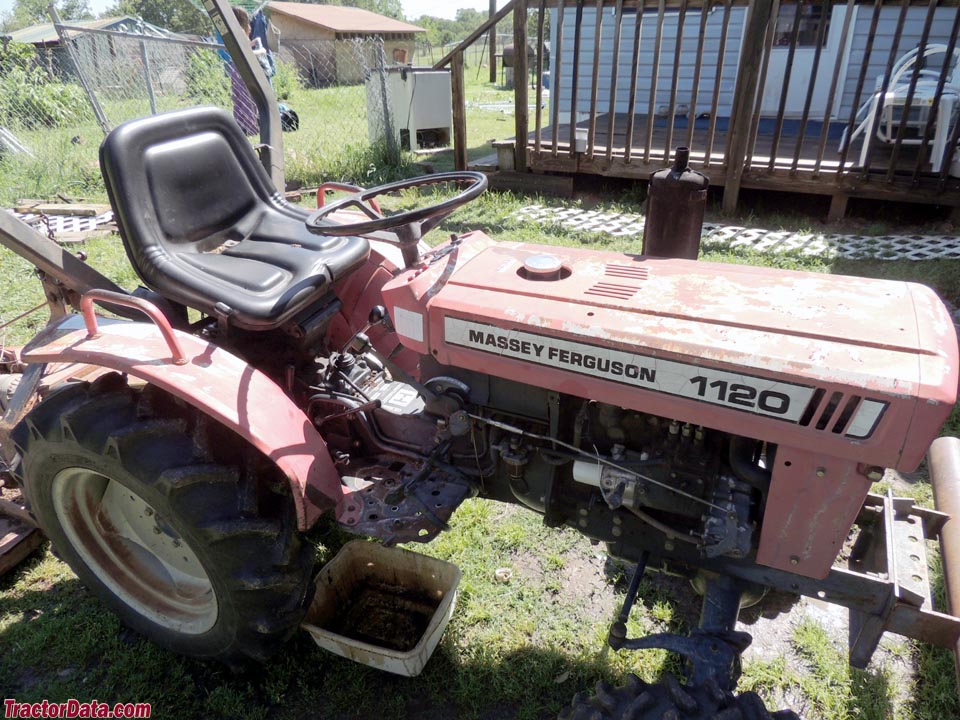

Massey Ferguson 1120

Name: Massey Ferguson 1120
Brand: Massey Ferguson

Massey Ferguson 1120 — Compact Utility tractor · 17 hp. Reference specifications; pending source verification.

The Massey Ferguson 1120 is a compact tractor with a rated output of 17 hp. It was manufactured from 1993 to 1996 and features a 3-cylinder diesel liquid-cooled engine. The tractor is equipped with four-wheel drive and a hydrostatic transmission, weighing between 1272 and 1360 pounds. It is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

17 hp

Weight

1272 to 1360 pounds

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

17 hp

Recorded weight

576 kg

Transmissions

6-speed gear

Production years

1993-1996

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerIsekiReference

Compact Utility tractorReference

Built in JapanReference

Original price was $10,000 in 1996Reference

Four-wheel driveReference

Manual steeringReference

Mechanical drum brakesReference

Two-post fixed ROPS.Reference

Engine

Iseki 0.9L 3-cyl dieselReference

Fuel tank12.1 LReference

Engine (gross)12.4 kWReference

Engine (net)11.6 kWReference

Iseki K3BReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.9 LReference

Power (net)11.6 kWReference

Power (gross)12.4 kWReference

Fuel systemindirect injectionReference

Air cleanerdryReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

Torque47.1 NmReference

Torque RPM1800Reference

Starter volts12Reference

Oil capacity3.0 LReference

Coolant capacity4.8 LReference

Transmission

6-speed gearReference

hydrostaticReference

Gear Wheelbase128 cmReference

Gear Length230 cmReference

Gear Weight576 kgReference

TypegearReference

Gears6 forward and 2 reverseReference

Clutch184mm dry discReference

Three gears (1-3) plus reverse (R) in two ranges.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

Gear PTO (claimed)10.1 kWReference

Hydro PTO (claimed)9.7 kWReference

Typeopen centerReference

Pressure134.5 barReference

Pump flow13.2 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)376 kgReference

Gear Rear PTOtransmissionReference

Hydro Rear PTOliveReference

Clutchdry discReference

Rear PTO Type540 (1.375)Reference

Dimensions

Hydro Wheelbase137 cmReference

Weight1272 to 1360 poundsReference

Front tire5.00-12Reference

Rear tire8-18Reference

Ag front5.00-12Reference

Ag rear8-18Reference

Lawn/turf front20.5x8.00-10Reference

Lawn/turf rear29.00x12.00-15Reference

Hydro Length239 cmReference

Width99 cmReference

Height (ROPS)201 cmReference

Hydro Weight616 kgReference

Ground clearance24 cmReference

Front tread80 cmReference

Rear tread79 to 90 cmReference

1120 Serial Numbers

Location:Serial number decal on top of the transmission case.Reference

1993B-----Reference

1994C-----Reference

1995D-----Reference

1996E-----Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps35Reference

Battery CCA325Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
