Tractor · 1992Unverified

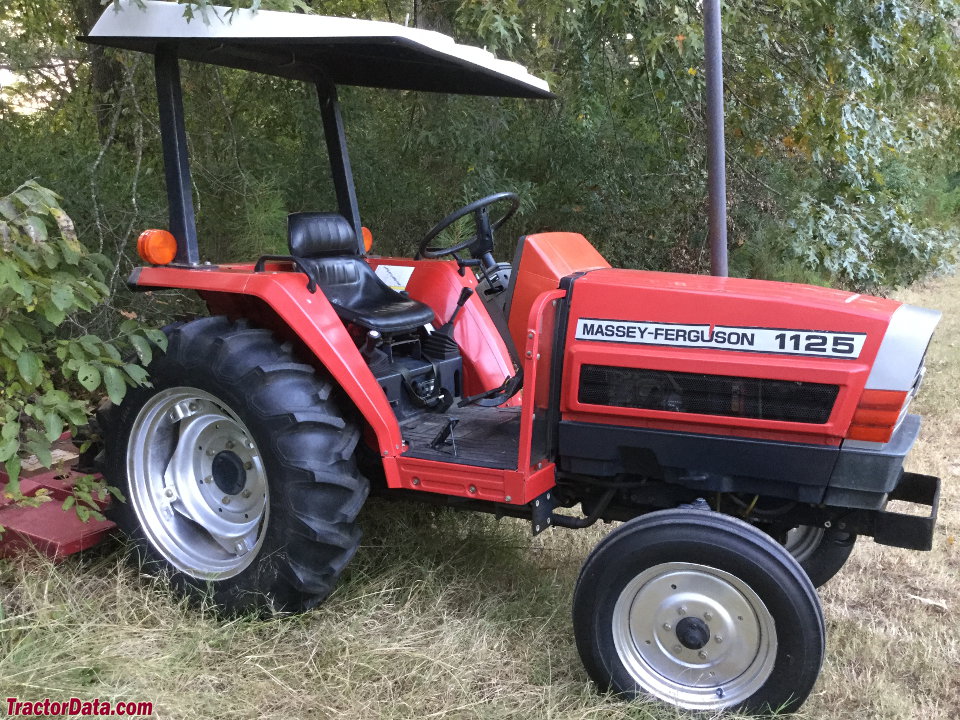

Massey Ferguson 1125
Massey Ferguson 1125 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
2424 to 2634 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Original price was $12,000 in 1992Reference
Two- or four-wheel driveReference
SteeringpowerReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Engine
Iseki 1.4L 3-cyl dieselReference
Engine18.6 kWReference
Iseki E3AG1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power18.6 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
Torque90.2 NmReference
Torque RPM1600Reference
Starter volts12Reference
Starter power1.4 kWReference
Oil capacity4.8 LReference
Coolant capacity7.0 LReference
Transmission
16-speed partially synchronizedReference
Typepartially synchronizedReference
Gears16 forward and reverseReference
Clutch225mm discReference
Four gears (1-4) in four ranges (1-4) with shuttle. Synchronized shifting in gears 3 and 4.Reference
PTO & Hydraulics
PTO (claimed)16.8 kWReference
Hydraulic system25.0 LReference
Typeopen centerReference
Capacity25.0 LReference
Pressure147.1 barReference
Valves0 to 2Reference
Pump flow26.1 lpmReference
Steering cap.2.5 LReference
Rear TypeIReference
Controlposition and response controlReference
Rear lift (at ends)1300 kgReference
Rear lift (at 24"/610mm)879 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type1960 (1.00)Reference
Engine RPM1960@2600Reference
Capacities
Fuel29.9 LReference
Steering2.5 LReference
Dimensions
Wheelbase162 cmReference
Weight2424 to 2634 poundsReference
Front tire5.00-15Reference
Rear tire11.2-24Reference
Ag front5.00-15 (2WD)Reference
Ag front7x16 (4WD)Reference
Ag rear11.2-24Reference
Lawn/turf front24x8.50-12 (2WD)Reference
Lawn/turf front212/80D-15 (4WD)Reference
Lawn/turf rear355/80D-20Reference
Length298 cmReference
Width132 cmReference
Height (ROPS)206 cmReference
2WD Weight1099 kgReference
4WD Weight1194 kgReference
Ground clearance28 cmReference
2WD Front tread96 to 106 cmReference
4WD Front tread107 cmReference
Rear tread102 to 133 cmReference
Massey Ferguson 1125 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA622Reference
Battery volts12Reference
Speeds
With 11.2-24 rear tires. Reverse speeds are 5% slower than forward speeds.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
