Tractor · 1964Unverified

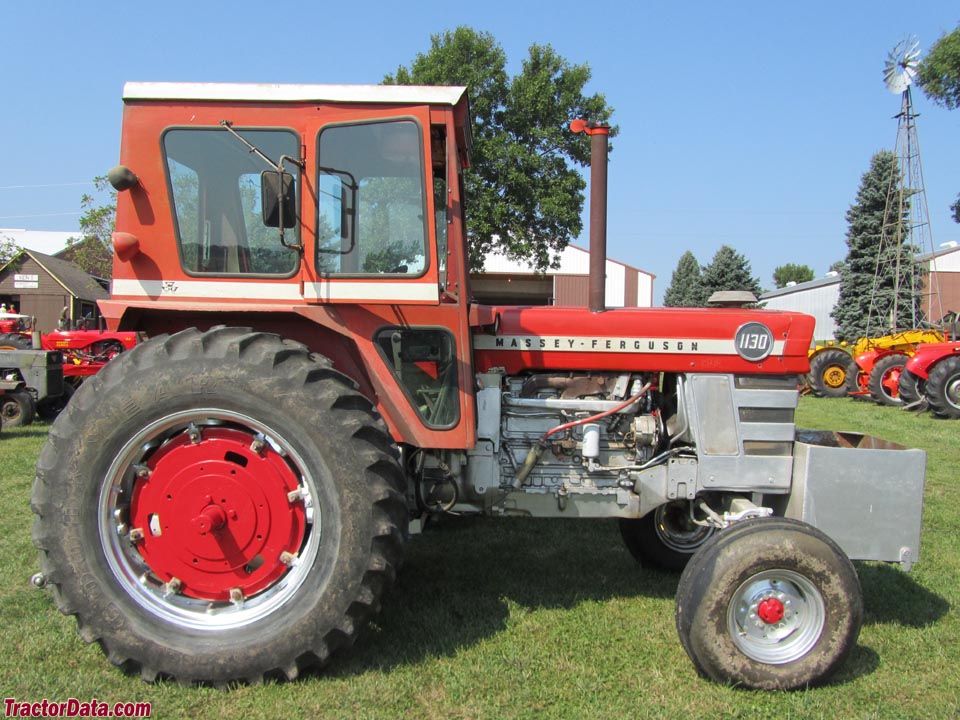

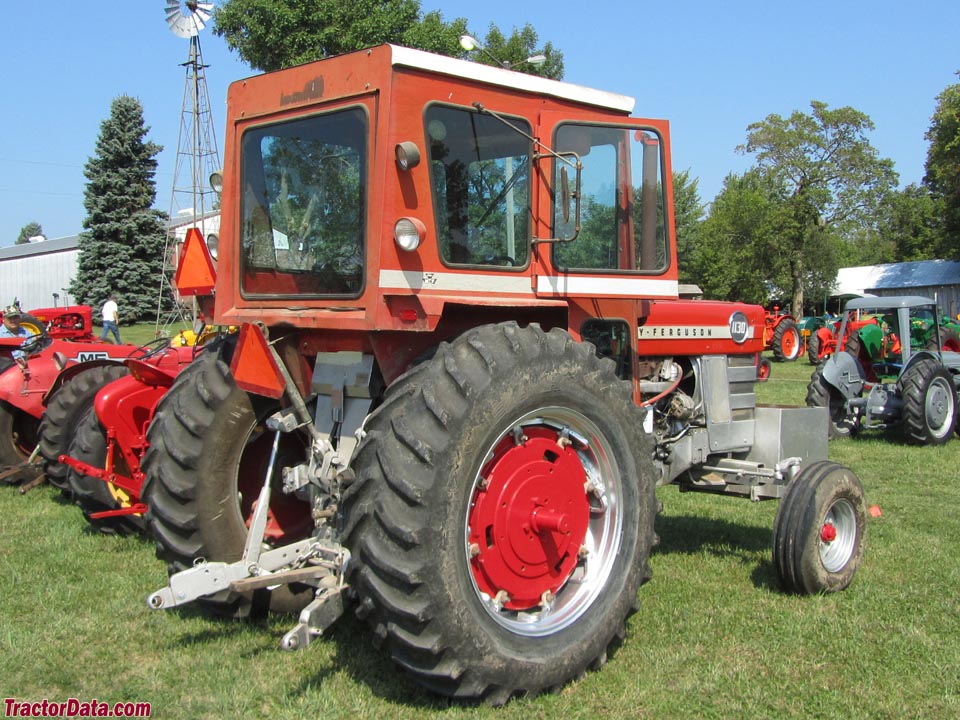

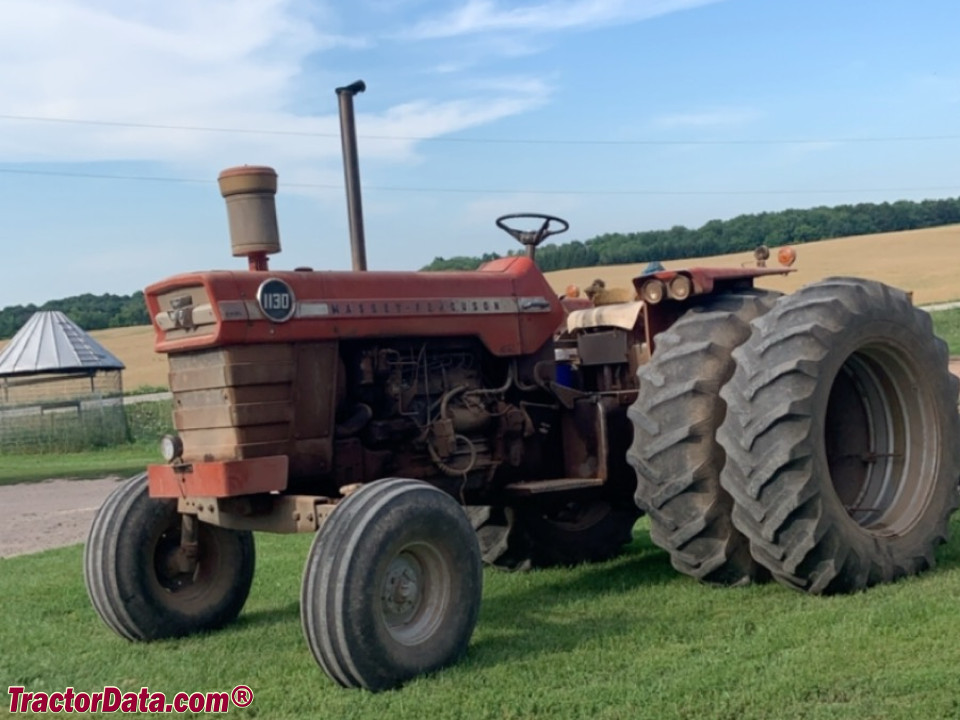

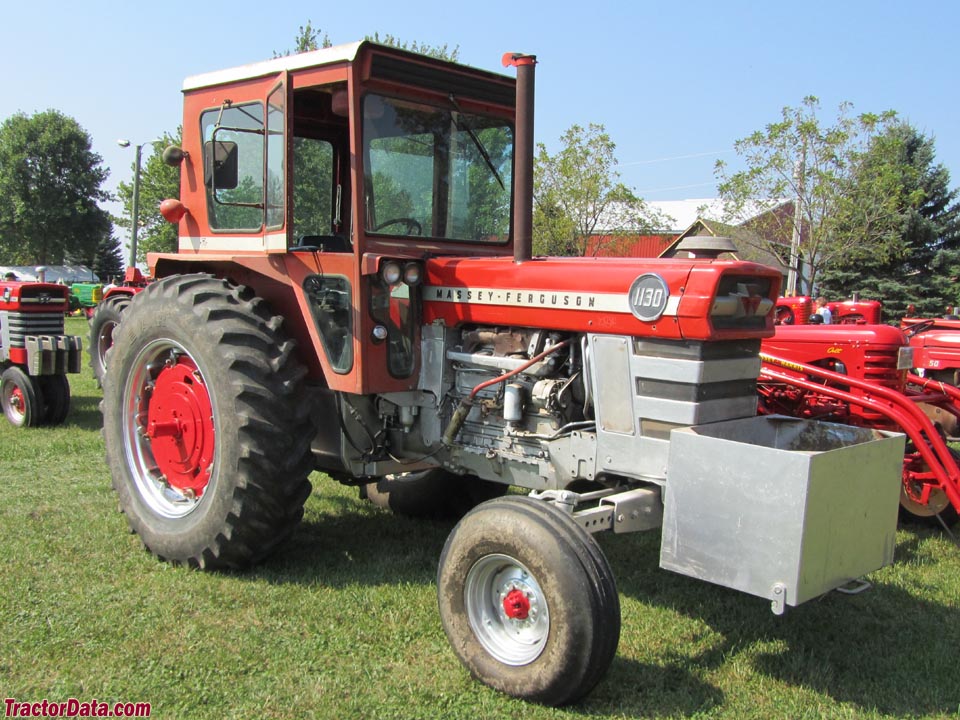

Massey Ferguson 1130

Name: Massey Ferguson 1130
Brand: Massey Ferguson

Massey Ferguson 1130 — Row-Crop tractor · 121 hp. Reference specifications; pending source verification.

The Massey Ferguson 1130 is a tractor with a power output of 121 hp, positioning it among the more powerful machines in its class. It was produced from 1964 to 1972. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a powershift transmission and two-wheel drive. Its listed weight ranges from 9500 to 13560 pounds, and it is suitable for tasks involving areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

121 hp

Max power

79.7 kW

Weight

9500 to 13560 pounds

Catalogue coverage

Variants represented

Richest spec table

104 rows

Recorded power

121 hp

Transmissions

12-speed two-speed power shift

Production years

1964-1972

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Original price was $11,500 in 1972Reference

Two-wheel driveReference

Differential lockhydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Open operator station. Cab optional with available air-conditioning.Reference

Engine

Perkins 5.8L 6-cyl dieselReference

Drawbar (claimed)79.0 kWReference

Drawbar (tested)79.7 kWReference

Perkins AT6.534Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement5.8 LReference

Bore/Stroke98 x 127 mmReference

Air cleanerdryReference

Compression16:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity15.1 LReference

Coolant capacity20.8 LReference

Power at rated engine speed89.9 kWReference

Max power79.7 kWReference

Fuel TypeDieselReference

No of Cylinders6-cylinderReference

Rated engine speed2,200Reference

Bore and stroke3.875x5.00 inchesReference

Compression ratio16:1Reference

Cooling systemliquid-cooled inlineReference

Transmission

12-speed two-speed power shiftReference

TransmissionMulti-PowerReference

Typetwo-speed power shiftReference

Gears12 forward and 4 reverseReference

Clutch279.4mm dry discReference

Three gears in two ranges with two-speed Multi-Power power shift.Reference

Transmission TypePowershiftReference

forward and reverse options12 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)90.2 kWReference

PTO (tested)89.9 kWReference

Hydraulic system64.3 LReference

Typeclosed centerReference

Capacity64.3 LReference

Valves1Reference

Pump flow75.7 lpmReference

Rear TypeIIReference

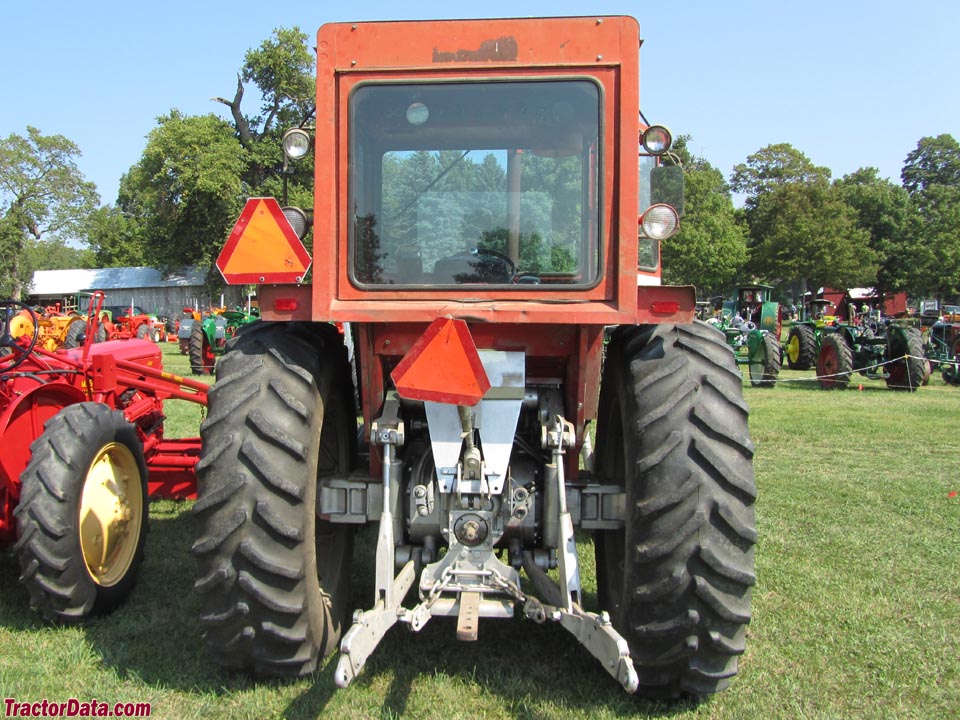

Controlposition and draft controlReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540/1000 (1.375)Reference

Power at rated PTO speed87.5 kWReference

Capacities

Fuel189.2 LReference

Dimensions

Wheelbase259 cmReference

Weight9500 to 13560 poundsReference

Front tire11.00-16Reference

Rear tire24.5-32Reference

Ag front11.00-16Reference

Ag rear24.5-32Reference

Length419 cmReference

Height (steering wheel)189 cmReference

Height (cab)288 cmReference

Rear axle82 mmReference

Front tread142 to 203 cmReference

Rear tread152 to 243 cmReference

Rear tread152 to 304 cmReference

Shipping4309 kgReference

Operating6150 kgReference

Ballasted8373 kgReference

1130 Serial Numbers

Location:Ahead of transmission on right side.Reference

1965651500022Reference

1966651500082Reference

1967651501613Reference

19679B10001Reference

19689B14693Reference

19699B18673Reference

19709B23486Reference

19719B28238Reference

19729B31959Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegatveReference

Charging systemalternatorReference

Batteries2Reference

Battery volts12Reference

Test results

Diesel 12-speed 2WDOctober 7 - 19, 1966Link: Nebraska Tractor Test 948 fileReference

PTO performanceReference

Fuel use28.8 l/hourReference

Fuel use26.9 l/hourReference

Drawbar performanceReference

Fuel use28.4 l/hourReference

Gear 5 used for power test.Reference

General

Make & ModelMassey FergusonReference

Country of manufacturerRow-Crop tractorReference

PTO

Rear PTO PowerAvailableReference

Steering & brakes

Brakeshydraulic discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeclosed centerReference

Remote Valves1Reference

Rear Hitch category (SAE designation)Category IIReference

Dimensions & weight

Overall Height189.5 cmReference

Overall Length419.1 cmReference

Wheels & tyres

Rear wheel tread range24.5-32 inchReference

Front Wheel tread rangeOption 1: 11.00-16\\nOption 2: 56 to 8 inchesReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
