Tractor · 1973Unverified

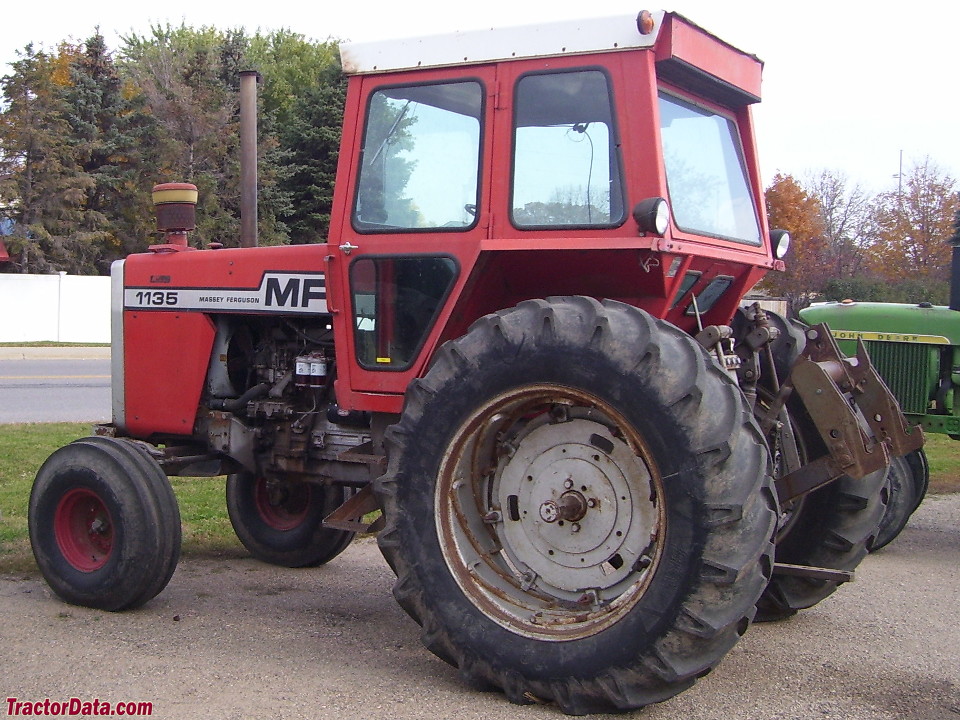

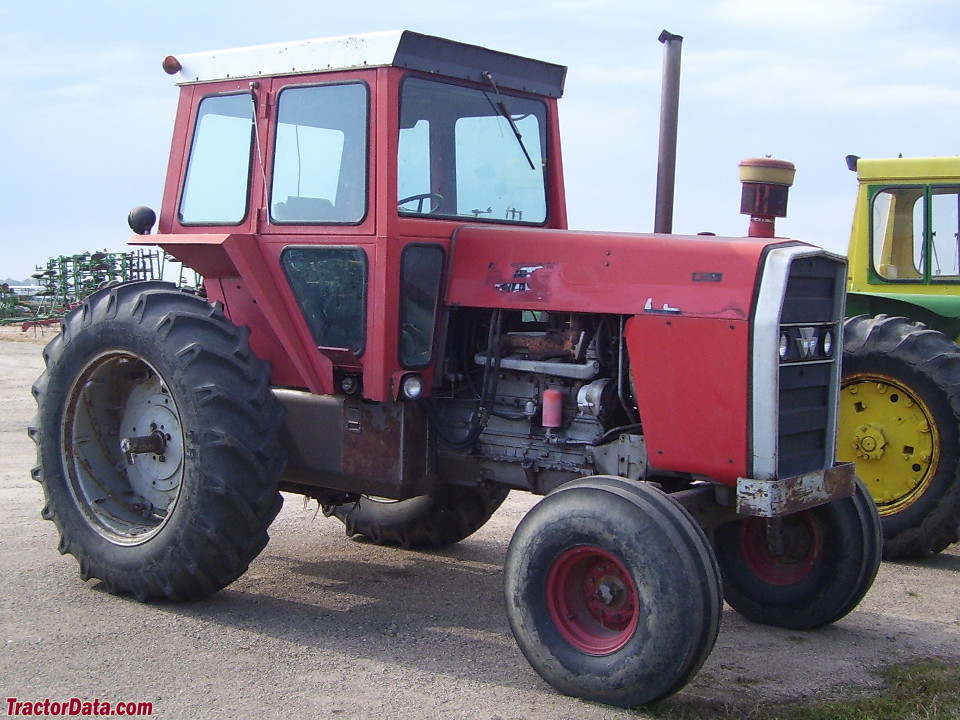

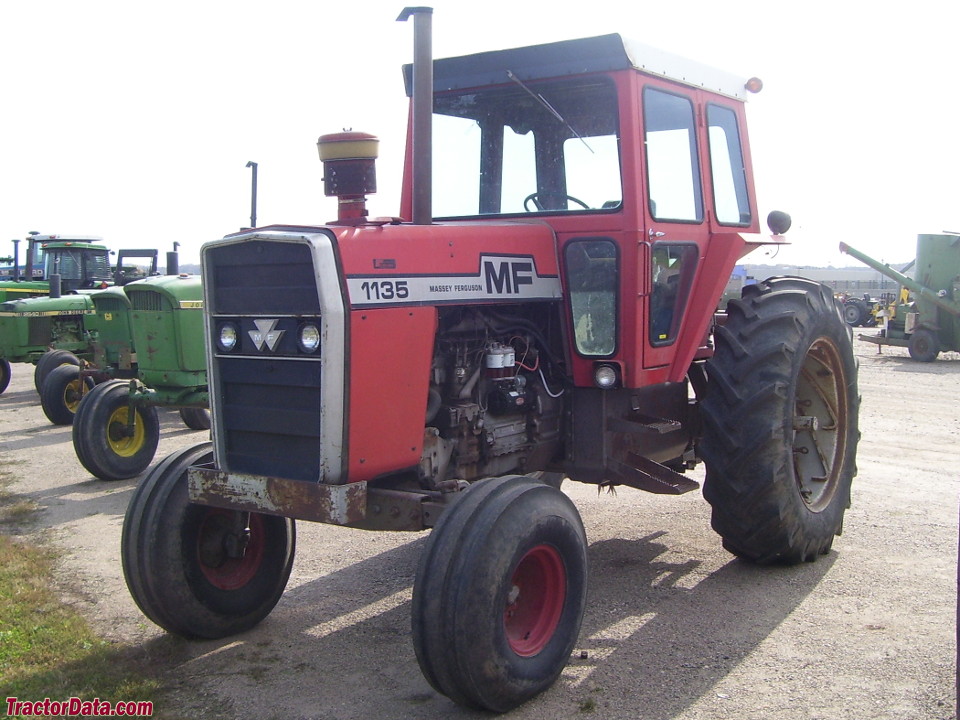

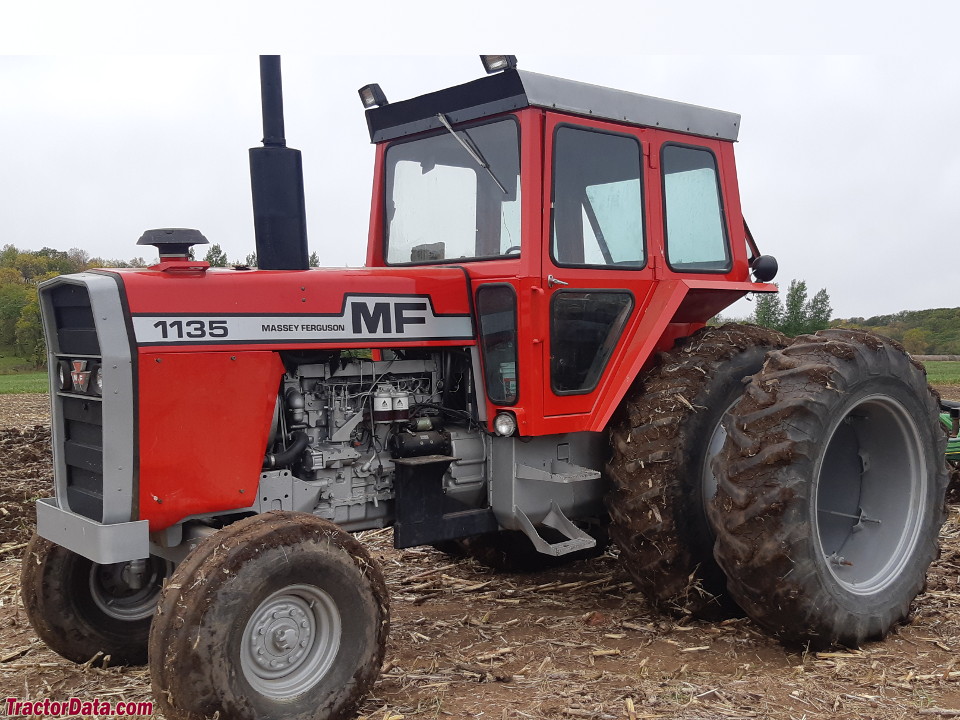

Massey Ferguson 1135

Massey Ferguson 1135 — Row-Crop tractor · 121 hp. Reference specifications; pending source verification.

The Massey Ferguson 1135 is a tractor with a power output of 121 hp, categorising it as a higher-powered machine in its class. Manufactured from 1973 to 1978, it features a 6-cylinder turbocharged diesel liquid-cooled engine. The tractor's drivetrain includes two-wheel drive with a hydrostatic transmission. Its listed operating weight ranges from 11000 to 13550 pounds, making it suitable for farms with around 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
121 hp
Max power
76.4 kW
Weight
11000 to 13550 pounds

Catalogue coverage

Variants represented
2
Richest spec table
118 rows
Recorded power
121 hp
Transmissions
12-speed two-speed power shift
Production years
1973-1978
Verified variants
0

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference
Row-Crop tractorReference
Original price was $31,500 in 1978Reference
Two-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic disc brakesReference
Open operator station. Cab optional with heat and air-conditioning available.Reference

Engine

Perkins 5.8L 6-cyl dieselReference
Drawbar (claimed)76.1 kWReference
Drawbar (tested)76.4 kWReference
Perkins AT6.354Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity15.1 LReference
Coolant capacity21.0 LReference
Power at rated engine speed90.1 kWReference
Max power76.4 kWReference
Fuel TypeDieselReference
No of Cylinders6-cylinderReference
Rated engine speed2,200Reference
Bore and stroke3.875x5.00 inchesReference
Cooling systemliquid-cooledReference

Transmission

12-speed two-speed power shiftReference
TransmissionMulti-PowerReference
Typetwo-speed power shiftReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
Three gears (1-3), plus reverse (R) in two ranges (low-high), with additional two-speed Multi-Power power shift.Reference
Transmission TypePowershiftReference
forward and reverse options12 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)90.2 kWReference
PTO (tested)90.1 kWReference
Hydraulic system83.3 LReference
Typeclosed centerReference
Capacity83.3 LReference
Pressure144.8 barReference
Valves1Reference
Pump flow75.7 lpmReference
Rear TypeII/IIIReference
Controlposition and draft controlReference
Rear lift2426 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Engine RPM1000@2000Reference
Power at rated PTO speed88.3 kWReference

Capacities

Fuel208.2 LReference

Dimensions

Wheelbase277 cmReference
Weight11000 to 13550 poundsReference
Front tire11.00-16Reference
Rear tire18.4-38Reference
Ag front11.00-16Reference
Ag rear18.4-38Reference
Length457 cmReference
Height (steering wheel)200 cmReference
Clearance (drawbar)40 cmReference
Rear axle82 by 2387 mmReference
Rear axle82 by 2895 mmReference
Front tread155 to 219 cmReference
Front tread156 cmReference
Rear tread177 to 238 cmReference
Rear tread152 to 254 cmReference
Rear tread177 to 289 cmReference
Rear tread152 to 304 cmReference
Shipping4989 kgReference
Shipping5556 kgReference
Operating6146 kgReference
Ballasted8573 kgReference

Massey Ferguson 1135 attachments

front-end loaderReference

1135 Serial Numbers

Location:Forward on instrument panel on left side.Reference
19729B36563Reference
19739B36841Reference
19749B42685Reference
19759B50494Reference
19769B58735Reference
19779B66276Reference
19789B74241Reference
19799B76058Reference
FAQ: How to read a serial number table.Reference

Electrical

Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Battery AH96Reference
Battery size96 AHReference
Battery options2Reference

Attachment overview

Massey Ferguson 245 loaderReference
Massey Ferguson 245 High Lift loaderReference

Test results

Diesel 12-speed 2WDJune 4 - 15, 1973Link: Nebraska Tractor Test 1135 fileReference
PTO performanceReference
Fuel use29.5 l/hourReference
Fuel use27.6 l/hourReference
Drawbar performanceReference
Fuel use29.1 l/hourReference
Gear 3L-Low used for power test.Reference
Max pull6329 kgReference
Gear 1L-Hi used for pull test.Reference

Speeds

With 18.4x38 rear tires.Reference

General

Make & ModelMassey FergusonReference
Rear Axle Type238.8 cmReference

PTO

Rear PTO PowerAvailableReference

Hydraulics

Hydraulics Typeclosed centerReference
Maximum operating pressure2,100 psiReference
Remote Valves1Reference
Rear Hitch category (SAE designation)Category II/IIIReference
Rear Hitch maximum lift capacity2,426.7 kgReference
Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Overall Height200.9 cmReference
Overall Length457.2 cmReference
Drawbar clearance40.9 cmReference

Wheels & tyres

Rear wheel tread range18.4-38 inchReference
Front Wheel tread rangeOption 1: 11.00-16\\nOption 2: 61.4 to 86.4 inches, 61.6 inchesReference

Steering & brakes

Steering typehydrostatic powerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
