Tractor · 1991Unverified

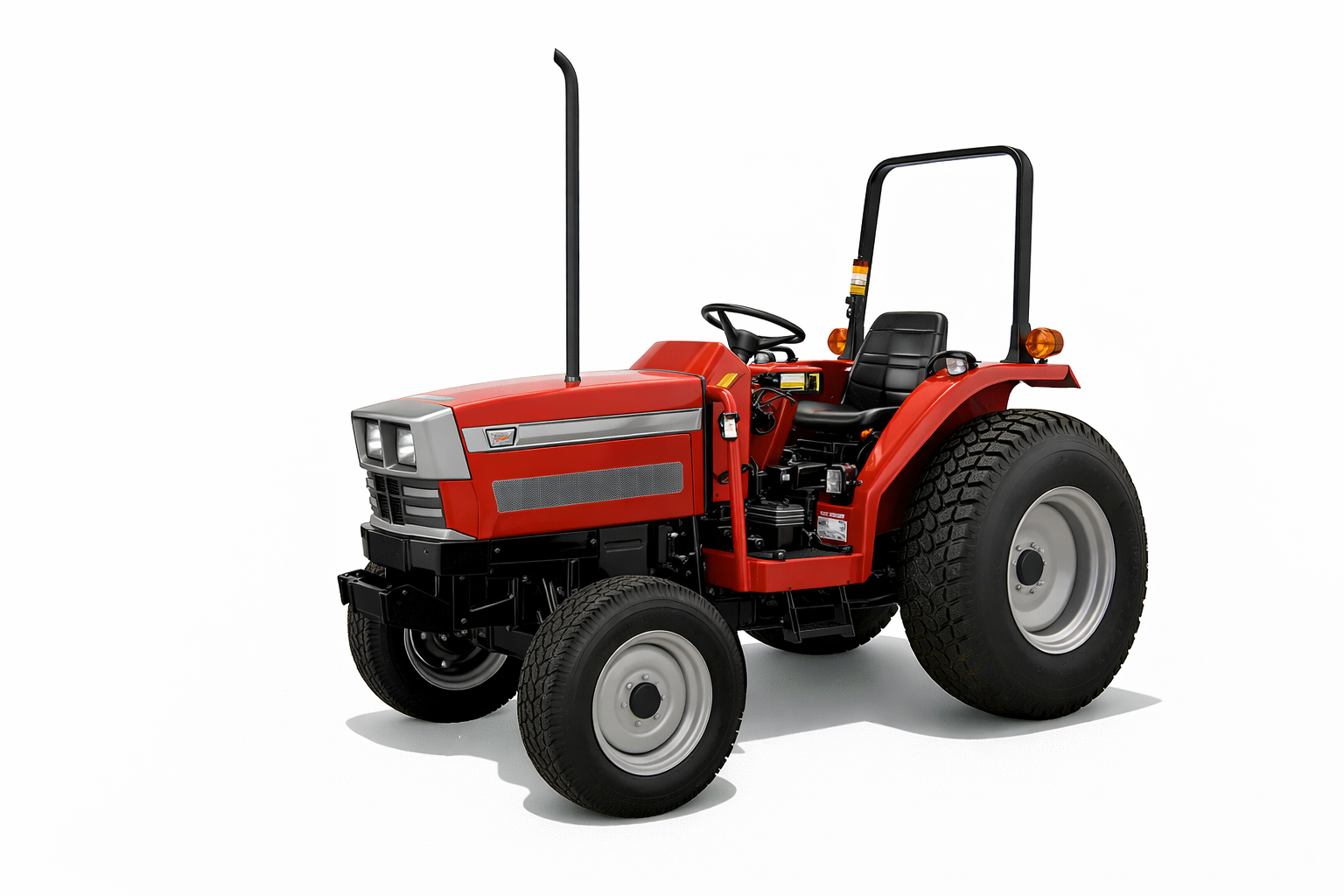

Massey Ferguson 1140
Massey Ferguson 1140 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
2590 to 2700 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Original price was $13,200 in 1992Reference
Two- or four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post fixed ROPS.Reference
Engine
Isuzu 1.5L 3-cyl dieselReference
Engine22.4 kWReference
Isuzu E3AD1Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke86 x 86 mmReference
Power22.4 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
Torque99.0 NmReference
Torque RPM1600Reference
Firing order1-3-2Reference
Starter volts12Reference
Starter power1.4 kWReference
Oil capacity4.8 LReference
Coolant capacity6.8 LReference
Transmission
16-speed partially synchronizedReference
Typepartially synchronizedReference
Gears16 forward and reverseReference
Clutch225mm dry discReference
Four gears (1-4) in four ranges (1-4) with synchronized shuttle shifting. Gears three and four are synchronized.Reference
PTO & Hydraulics
PTO (claimed)19.5 kWReference
Hydraulic system25.0 LReference
Typeopen centerReference
Capacity25.0 LReference
Pressure147.1 barReference
Valves2Reference
Pump flow26.1 lpmReference
Steering cap.2.6 LReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1300 kgReference
Rear lift (at 24"/610mm)809 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type1950 (1.00 15-spline)Reference
Engine RPM1960@2600Reference
Capacities
Fuel29.9 LReference
Steering2.6 LReference
Dimensions
Wheelbase170 cmReference
Weight2590 to 2700 poundsReference
Front tire5.00x15Reference
Rear tire12.4x24 (2WD)Reference
Standard tires (ag)Front: 5.00x15. Rear: 12.4x24 (2WD)Reference
Standard tires (ag)Front: 7x16. Rear: 12.4x24 (4WD)Reference
Lawn/turf front24x8.50-12 (2WD)Reference
Lawn/turf front212/80D-15 (4WD)Reference
Lawn/turf rear355/80D-20Reference
Length307 cmReference
Width133 cmReference
Height (ROPS)209 cmReference
2WD Operating weight1174 kgReference
4WD Operating weight1224 kgReference
Ground clearance30 cmReference
Front tread101 to 106 cmReference
Front tread106 cmReference
Rear tread101 to 133 cmReference
Massey Ferguson 1140 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA670Reference
Battery volts12Reference
Speeds
With 12.4-24 rear tires. Reverse speeds are about 5% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
