Tractor · 1991Unverified

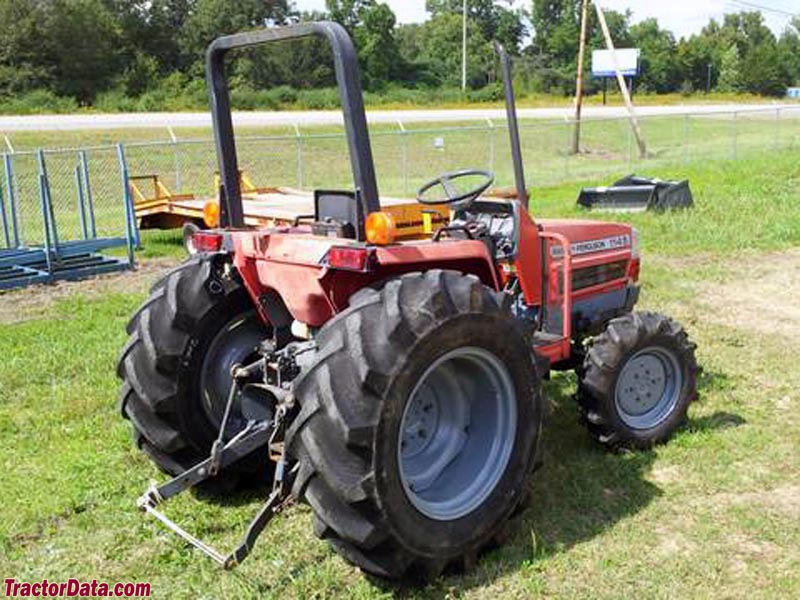

Massey Ferguson 1145

Name: Massey Ferguson 1145
Brand: Massey Ferguson

Massey Ferguson 1145 — Compact Utility tractor · 31 hp. Reference specifications; pending source verification.

The Massey Ferguson 1145 tractor model has a rated output of 31 hp, positioning it as a compact option within its class. It was manufactured between 1991 and 1992. The tractor features a 3-cylinder turbocharged diesel liquid-cooled engine, which drives through a four-wheel drive system with a 16-speed gearbox. Its listed weight is 1275 kg, suitable for tasks on around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

31 hp

Weight

1275 kg

Catalogue coverage

Variants represented

Richest spec table

64 rows

Recorded power

31 hp

Recorded weight

1275 kg

Transmissions

16-speed partially synchronized

Production years

1991-1992

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerIsekiReference

Compact Utility tractorReference

Original price was $16,000 in 1992Reference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post fixed ROPS.Reference

Engine

Isuzu 1.5L 3-cyl dieselReference

Engine26.1 kWReference

Isuzu E3AD1-HTO1Reference

turbocharged dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.5 LReference

Bore/Stroke86 x 86 mmReference

Power26.1 kWReference

Fuel systemindirect injectionReference

Air cleanerdual dry elementReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

Torque113.2 NmReference

Torque RPM1800Reference

Firing order1-3-2Reference

Starter volts12Reference

Oil capacity4.8 LReference

Coolant capacity6.8 LReference

Transmission

16-speed partially synchronizedReference

Typepartially synchronizedReference

Gears16 forward and reverseReference

Clutch225mm dry discReference

Four gears (1-4) in four ranges (1-4) with synchronized shuttle shifting. Gears three and four are synchronized.Reference

PTO & Hydraulics

PTO (claimed)23.1 kWReference

Hydraulic system25.0 LReference

Typeopen centerReference

Capacity25.0 LReference

Pressure147.1 barReference

Pump flow26.1 lpmReference

Steering cap.2.6 LReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift (at ends)1300 kgReference

Rear lift (at 24"/610mm)809 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type1950 (1.00 15-spline)Reference

Engine RPM1960@2600Reference

Capacities

Fuel30.3 LReference

Steering2.6 LReference

Dimensions

Wheelbase170 cmReference

Weight1275 kgReference

Front tire8-16Reference

Rear tire13.6-24Reference

Ag front8-16Reference

Ag rear13.6-24Reference

Length307 cmReference

Width142 cmReference

Height (ROPS)211 cmReference

Operating weight1275 kgReference

Ground clearance32 cmReference

Massey Ferguson 1145 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
