Tractor · 1992Unverified

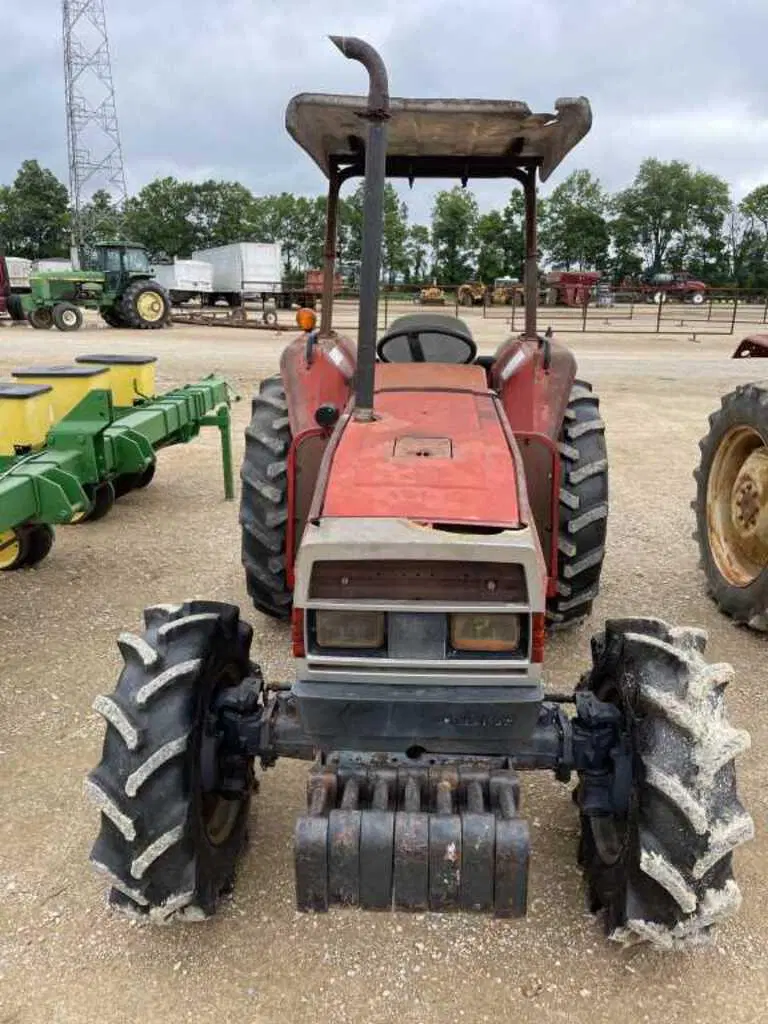

Massey Ferguson 1190
Massey Ferguson 1190 — Compact Utility tractor · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
1984 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Compact Utility tractorReference
Original price was $29,000 in 1999Reference
Four-wheel driveReference
SteeringpowerReference
Mechanical wet disc brakesReference
Two-post fixed ROPS.Reference
Variants
TA607similar Iseki modelReference
Engine
Isuzu 2.8L 4-cyl dieselReference
Engine44.7 kWReference
Isuzu 4JBI-TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.8 LReference
Bore/Stroke93 x 102 mmReference
Power44.7 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Pre-heatingglow plugsReference
Rated RPM2500Reference
Torque210.9 NmReference
Torque RPM1600Reference
Starter volts12Reference
Oil capacity7.0 LReference
Coolant capacity9.0 LReference
Transmission
16-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
Clutch275mm discReference
Four gears (1-4) in four ranges (LL, L, M, and H) with shuttle. Gears 3 and 4 are synchronized.Reference
PTO & Hydraulics
PTO (claimed)39.5 kWReference
Hydraulic system32.2 LReference
Typeopen centerReference
Capacity32.2 LReference
Pressure166.7 barReference
Valves0 to 2Reference
Pump flow31.0 lpmReference
Rear TypeIReference
Controlposition, draft, and response controlReference
Rear lift (at ends)2199 kgReference
Rear lift (at 24"/610mm)1834 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel51.1 LReference
Dimensions
Wheelbase202 cmReference
Weight1984 kgReference
Front tire9.5-18Reference
Rear tire14.9-28Reference
Ag front9.5-18Reference
Ag rear14.9-28Reference
Lawn/turf front29x12.00-15Reference
Lawn/turf rear475/65D-20Reference
Length346 cmReference
Width154 cmReference
Height (ROPS)230 cmReference
Ground clearance33 cmReference
Front tread128 cmReference
Rear tread123 to 164 cmReference
Massey Ferguson 1190 attachments
front-end loaderReference
1190 Serial Numbers
1992A90101Reference
1993B90101Reference
1994C00101Reference
1995D00101Reference
1996E00101Reference
1997F01001Reference
1998G01001Reference
1999H01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA799Reference
Battery volts12Reference
Speeds
With 14.9x28 rear tires. Reverse speeds are 5% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
