Tractor · 1972Unverified

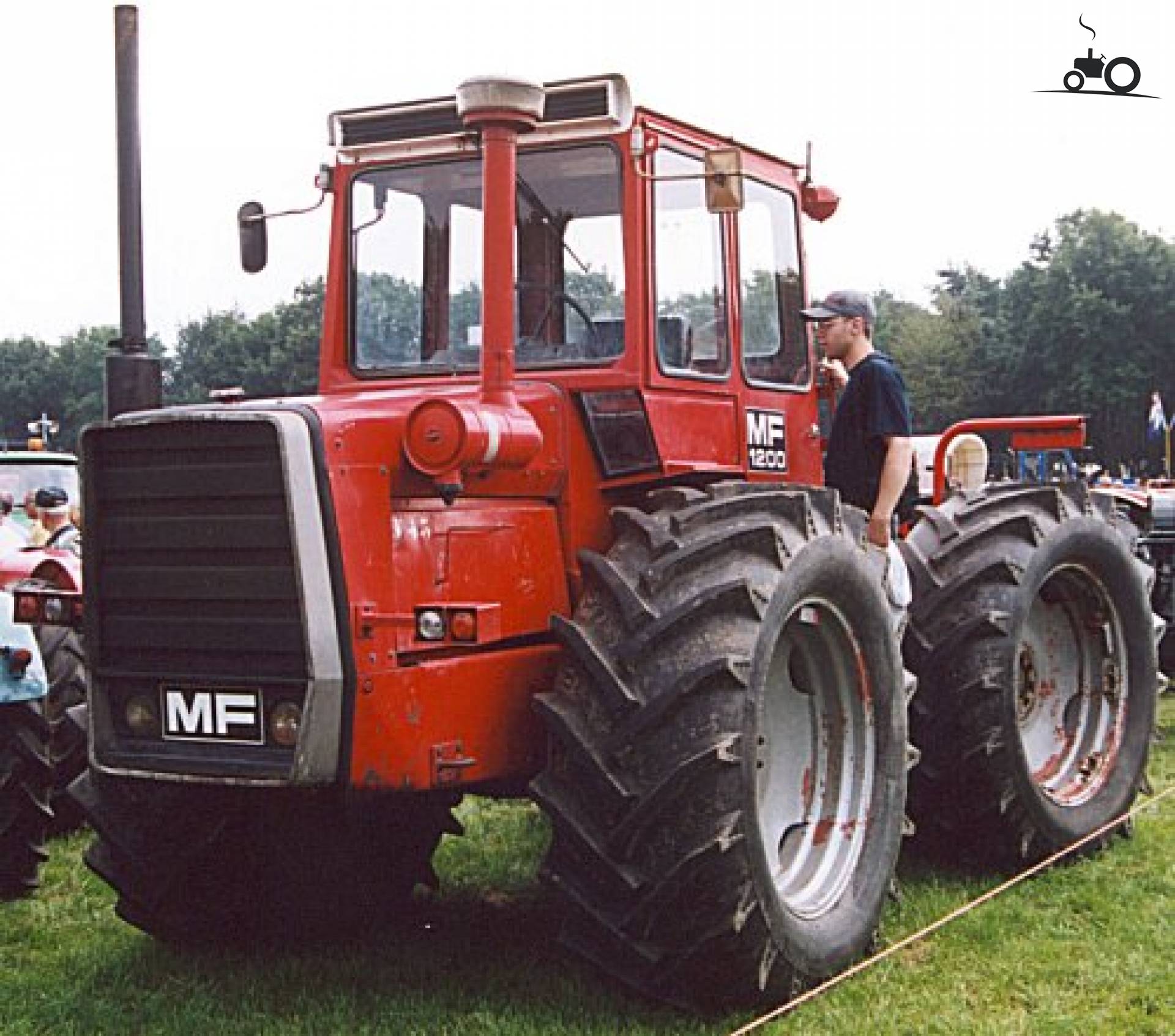

Massey Ferguson 1200

Name: Massey Ferguson 1200
Brand: Massey Ferguson

Massey Ferguson 1200 — Four-wheel Drive (4WD) tractor · 91 hp. Reference specifications; pending source verification.

The Massey Ferguson 1200 is a tractor with an engine rated output of 91 hp, placing it in the middle of its class in terms of power. This model was manufactured from 1972 to 1979. It features a 6-cylinder diesel liquid-cooled engine, coupled to a four-wheel drive system and a hydrostatic transmission. The tractor's listed weight is 5157 kg, making it suitable for tasks involving approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

91 hp

Weight

5157 kg

Catalogue coverage

Variants represented

Richest spec table

50 rows

Recorded power

91 hp

Recorded weight

5157 kg

Transmissions

8-speed

Production years

1972-1979

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Four-wheel Drive (4WD) tractorReference

Built in Manchester, EnglandReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic disc brakesReference

Cab standard, optional heat and air-conditioning.Reference

Engine

Perkins 5.8L 6-cyl dieselReference

Engine78.3 kWReference

Perkins A6.354Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.8 LReference

Bore/Stroke98 x 127 mmReference

Power78.3 kWReference

Air cleanerdual dry elementReference

Compression16:1Reference

Rated RPM2400Reference

Torque365.8 NmReference

Torque RPM1400Reference

Oil capacity10.2 LReference

Coolant capacity14.8 LReference

Transmission

8-speedReference

12-speedReference

Gears8 forward and 2 reverseReference

Clutchsingle dry plateReference

Oil capacity18.2 LReference

TransmissionMulti-PowerReference

Gears12 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)68.0 kWReference

Hydraulic system18.2 LReference

Capacity18.2 LReference

Pressure200.0 barReference

Total flow44.7 lpmReference

Rear TypeIIReference

Rear lift3402 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Capacities

Fuel317.9 LReference

Dimensions

Wheelbase256 cmReference

Weight5157 kgReference

Front tire16.9-34Reference

Rear tire16.9-34Reference

Ag front16.9-34Reference

Ag rear16.9-34Reference

Length506 cmReference

Width151 cmReference

Height (cab)291 cmReference

Ground clearance38 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
