Tractor · 1997Unverified

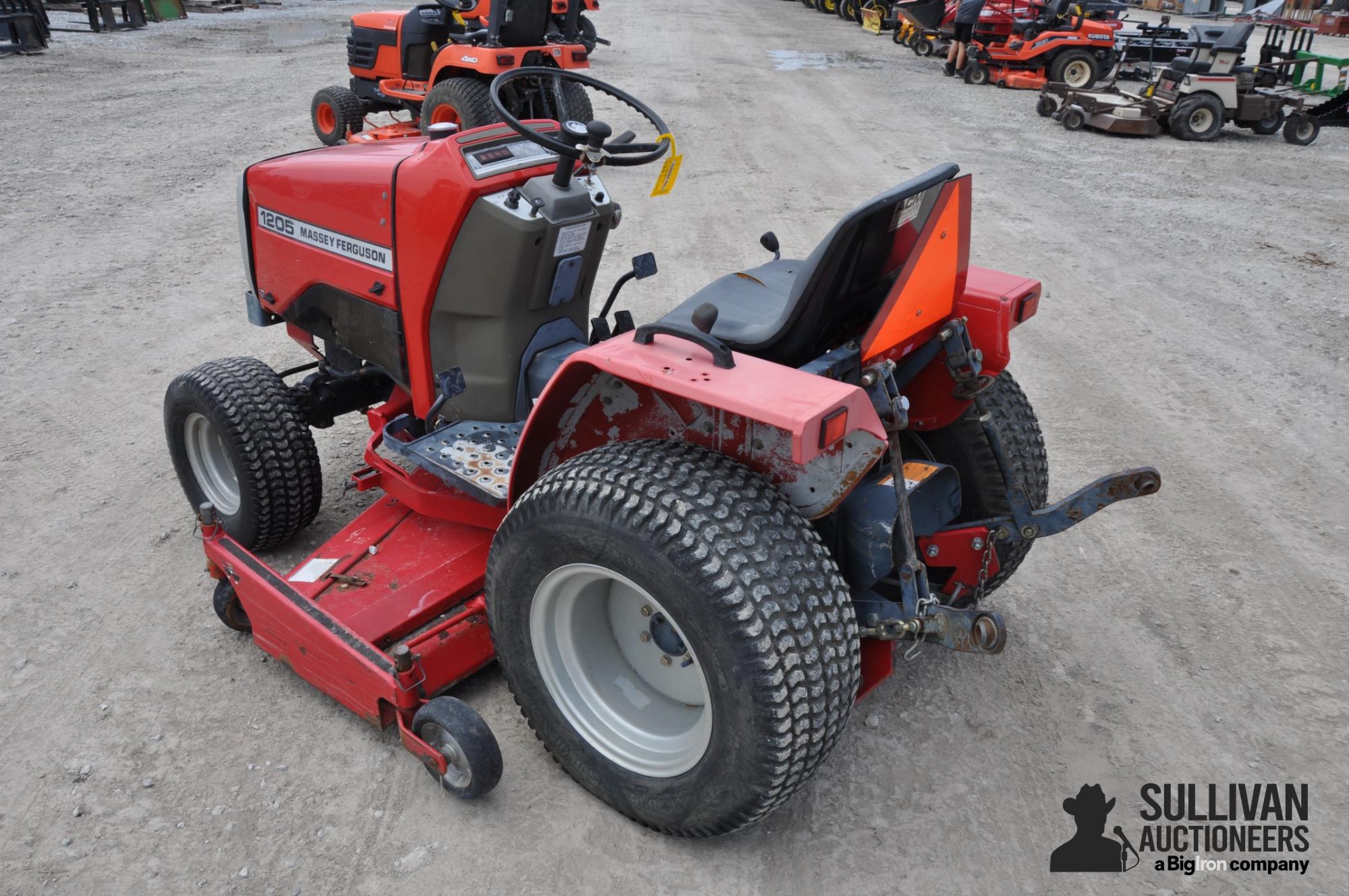

Massey Ferguson 1205

Name: Massey Ferguson 1205
Brand: Massey Ferguson

Massey Ferguson 1205 — Compact Utility tractor · 16 hp. Reference specifications; pending source verification.

The Massey Ferguson 1205 is a tractor classified as having an output of approximately 16 horsepower, which positions it at the lower end of its class in terms of power. Produced from 1997 to 2003, this model features a 3-cylinder diesel liquid-cooled engine and a four-wheel drive system with a hydrostatic transmission. Its operating weight is listed at 601 kg. The 1205 is suitable for use in operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Weight

601 kg

Catalogue coverage

Variants represented

Richest spec table

81 rows

Recorded power

16 hp

Recorded weight

601 kg

Transmissions

6-speed gear

Production years

1997-2003

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerIsekiReference

Compact Utility tractorReference

Original price was $11,000 in 1999Reference

Four-wheel driveReference

Power steeringReference

Dry shoe brakesReference

Two-post fixed ROPS.Reference

Engine

Iseki 0.9L 3-cyl dieselReference

Fuel tank13.6 LReference

Engine (gross)11.7 kWReference

Engine (net)11.4 kWReference

IsekiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement0.9 LReference

Power (net)11.4 kWReference

Power (gross)11.7 kWReference

Fuel systemindirect injectionReference

Pre-heatingglow plugsReference

Compression22.5:1Reference

Rated RPM2500Reference

Torque50.0 NmReference

Torque RPM1800Reference

Starter volts12Reference

Coolant capacity5.1 LReference

Transmission

6-speed gearReference

hydrostaticReference

TypegearReference

Gears6 forward and 2 reverseReference

Clutch184mm dry discReference

TypehydrostaticReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Gear PTO (claimed)10.3 kWReference

Hydro PTO (claimed)9.5 kWReference

Typeopen centerReference

Pump flow18.2 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)479 kgReference

Gear Rear PTOtransmissionReference

Hydro Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2308Reference

Gear Mid PTOtransmssionReference

Hydro Mid PTOliveReference

Mid PTO Type2000Reference

Engine RPM2000@2446Reference

Dimensions

Wheelbase142 cmReference

Weight601 kgReference

Front tire5.00-12Reference

Rear tire8.00-16Reference

Ag front5.00-12Reference

Ag rear8.00-16Reference

Lawn/turf front20.5x8.00-10Reference

Lawn/turf rear29x12.00-15Reference

Length254 cmReference

Width99 cmReference

Height (ROPS)193 cmReference

Shipping weight601 kgReference

Ground clearance25 cmReference

Front tread74 cmReference

Rear tread76 to 94 cmReference

Massey Ferguson 1205 attachments

54" mid-mount mower deckReference

front-end loaderReference

1205 Serial Numbers

1997F01001Reference

1998G01001Reference

1999H01001Reference

2000J01001Reference

2001K01001Reference

2002L01001Reference

2003M01001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Battery CCA325Reference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

Front-end loaderReference

54" Mower deck

Typemid-mount Massey Ferguson 1231Reference

Cutting width137 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
