Tractor · 1993Unverified

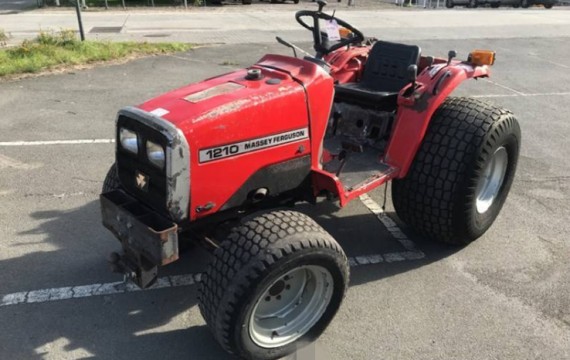

Massey Ferguson 1210
Massey Ferguson 1210 — Compact Utility tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1433 to 1610 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in JapanReference
Original price was $10,500 in 1996Reference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Variants
TF173similar Iseki modelReference
Engine
Iseki 1.0L 3-cyl dieselReference
Iseki E3100Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Maximum Power (net)13.0 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression22.5:1Reference
Rated RPM2500Reference
Idle RPM950-2750Reference
Torque56.3 NmReference
Torque RPM1800Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.1 LReference
Coolant capacity5.1 LReference
Transmission
6-speed gearReference
hydrostaticReference
9-speed creeperReference
2WD Gear Shipping650 kgReference
4WD Gear Shipping720 kgReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch184mm dry discReference
Oil capacity10.0 LReference
Three gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, to shift gear or range.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
TypecreeperReference
Gears9 forward and 3 reverseReference
Optional additional creeper range for the standard transmission.Reference
PTO & Hydraulics
Gear PTO (claimed)11.2 kWReference
Hydro PTO (claimed)10.4 kWReference
Hydraulic system10.0 LReference
Typeopen centerReference
Capacity10.0 LReference
Pump flow19.7 lpmReference
Total flow29.1 lpmReference
Steering flow9.5 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)548 kgReference
Rear lift (at 24"/610mm)400 kgReference
Rear PTOtransmissionReference
Clutchdry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2307Reference
Mid PTO Type2000Reference
Capacities
Fuel18.0 LReference
2WD Max capacity1442 kgReference
4WD Max capacity1624 kgReference
Dimensions
Wheelbase150 cmReference
Weight1433 to 1610 poundsReference
Front tire4.50-10Reference
2WD Rear tire8-16Reference
2WD Standard tires (ag)Front: 4.50-10. Rear: 8-16Reference
4WD Standard tires (ag)Front: 5.00-12. Rear: 8-16Reference
Lawn/turf front24x8.50-12Reference
Lawn/turf rear315x75D-15Reference
Length275 cmReference
Width103 cmReference
Height (Folded ROPS)151 cmReference
Ground clearance25 cmReference
2WD Front tread83/91 cmReference
4WD Front tread83 cmReference
Rear tread85/100 cmReference
2WD Hydro Shipping659 kgReference
4WD Hydro Shipping730 kgReference
1210 Serial Numbers
Location:Serial number decal on the right side of the tractor, just ahead and below the seat.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA325Reference
Battery volts12Reference
Speeds
With 8-16 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
