Tractor · 1996Unverified

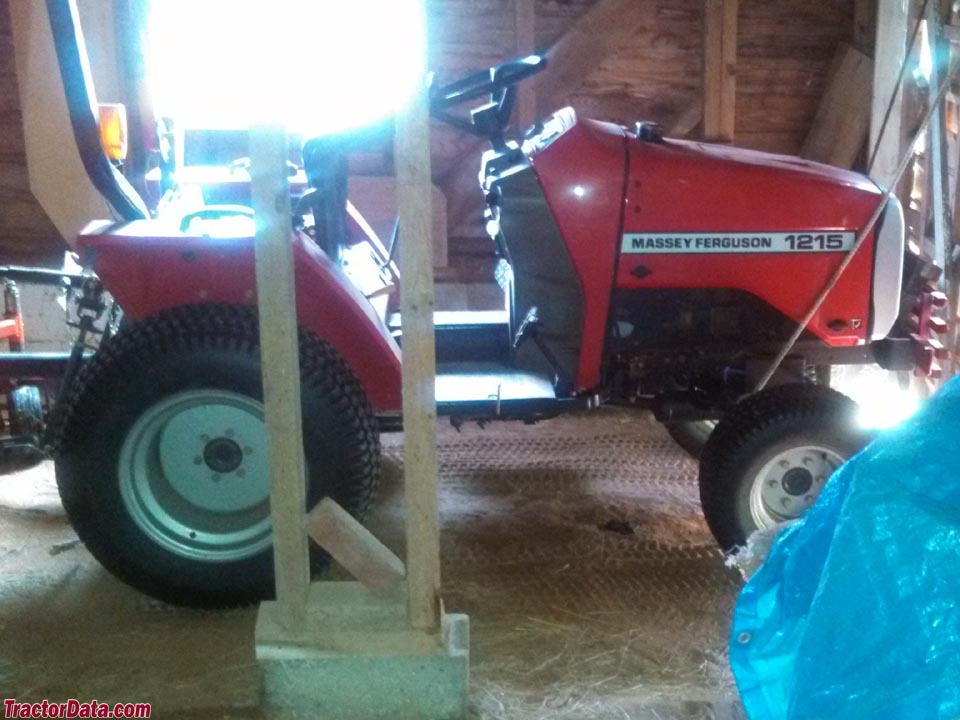

Massey Ferguson 1215
Massey Ferguson 1215 — Compact Utility tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
1460 to 1590 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Original price$11,000 (1999)Reference
The Massey Ferguson 1215 is similar to the Iseki model TM217.Reference
Two- or four-wheel driveReference
Steeringmanual (2WD)Reference
Steeringhydrostatic power (4WD)Reference
Dry shoe brakesReference
Two-post fixed ROPS.Reference
Engine
Iseki 1.0L 3-cyl dieselReference
Fuel tank13.6 LReference
Engine (gross)13.4 kWReference
Engine (net)12.7 kWReference
Iseki E3100Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Power (net)12.7 kWReference
Power (gross)13.4 kWReference
Fuel systemindirect injectionReference
Pre-heatingglow plugsReference
Compression22.5:1Reference
Rated RPM2500Reference
Torque55.1 NmReference
Torque RPM1800Reference
Starter volts12Reference
Coolant capacity5.1 LReference
Transmission
6-speed unsynchronized gearReference
hydrostaticReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Clutch184mm dry discReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)11.6 kWReference
Typeopen centerReference
Pump flow18.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)479 kgReference
Rear PTOtransmission (gear)Reference
Rear PTOlive (hydro)Reference
Rear PTO Type540Reference
Engine RPM540@2308Reference
Mid PTOtransmission (gear)Reference
Mid PTOlive (hydro)Reference
Mid PTO Type2000Reference
Engine RPM2000@2446Reference
Dimensions
Wheelbase142 cmReference
Weight1460 to 1590 poundsReference
Front tire5.00-12Reference
Rear tire8.00-18Reference
Ag front5.00-12Reference
Ag rear8.00-18Reference
Length254 cmReference
Width101 cmReference
Height (ROPS)195 cmReference
Shipping weight662 kgReference
Shipping weight721 kgReference
Ground clearance27 cmReference
Front tread76 to 87 cmReference
Front tread74 cmReference
Rear tread80 to 90 cmReference
Massey Ferguson 1215 attachments
54" mid-mount mower deckReference
front-end loaderReference
1215 Serial Numbers
1996E01001Reference
1997F01001Reference
1998G01001Reference
1999H01001Reference
2000J01001Reference
2001K01001Reference
2002L01001Reference
2003M01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
Front-end loaderReference
54" Mower deck
Typemid-mount Massey Ferguson 1231Reference
Cutting width137 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
