Tractor · 1995Unverified

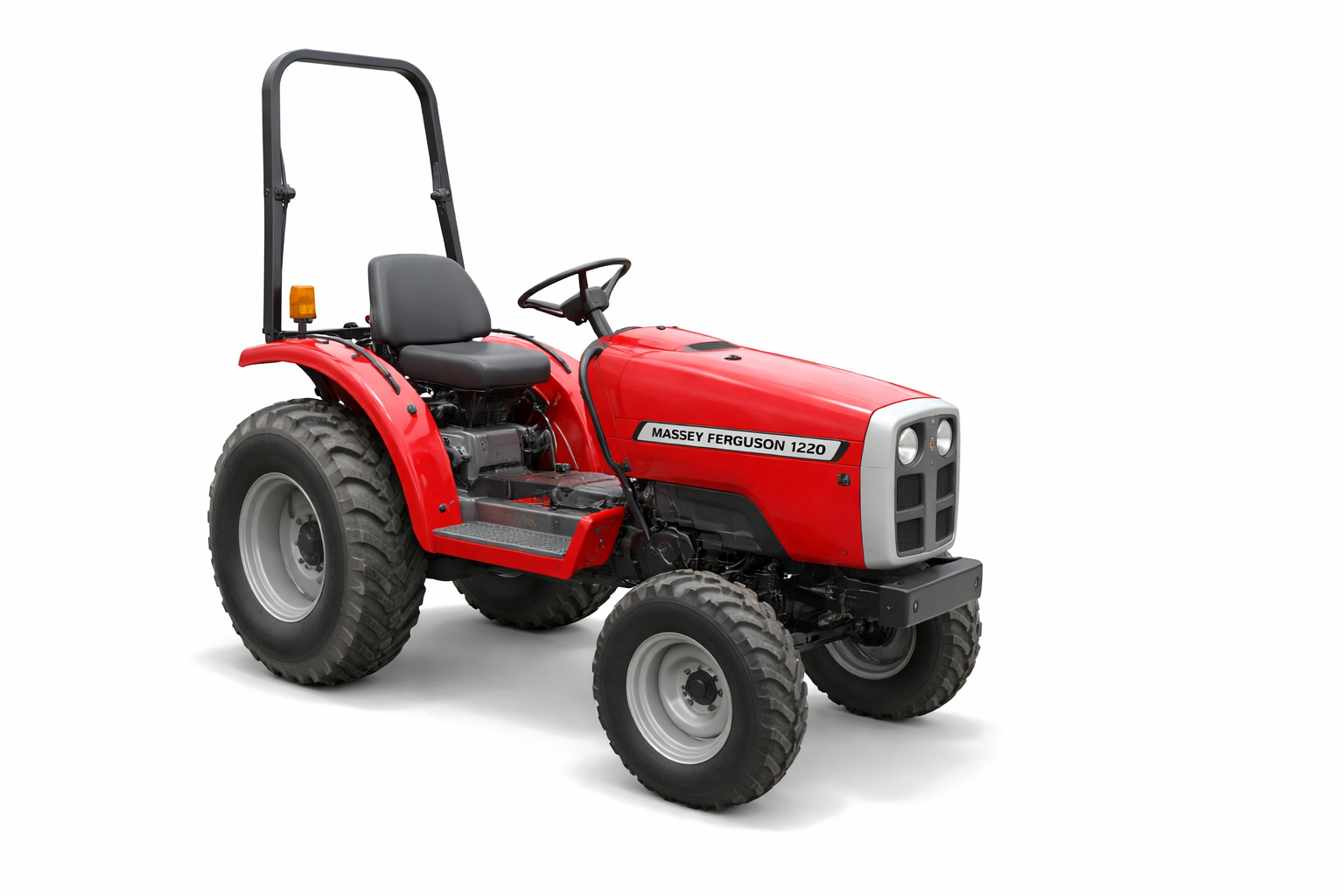

Massey Ferguson 1220
Massey Ferguson 1220 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1477 to 1676 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in JapanReference
Original price was $12,500 in 1999Reference
The Massey Ferguson 1220 is similar to the Iseki model TF321.Reference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringmanualReference
Steeringpower assistReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Variants
TF193similar Iseki modelReference
Engine
Iseki 1.1L 3-cyl dieselReference
Engine (gross)15.7 kWReference
Engine (net)14.9 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power (net)14.9 kWReference
Power (gross)15.7 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression22.5:1Reference
Rated RPM2500Reference
Idle RPM950-2750Reference
Torque59.9 NmReference
Torque RPM1800Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.1 LReference
Coolant capacity5.1 LReference
Transmission
6-speed gearReference
hydrostaticReference
9-speed creeperReference
2WD Gear Shipping669 kgReference
4WD Gear Shipping750 kgReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch215mm dry discReference
Three gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, to shift gear or range.Reference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
TypecreeperReference
Gears9 forward and 3 reverseReference
Optional additional creeper range for the standard transmission.Reference
PTO & Hydraulics
Gear PTO (claimed)13.0 kWReference
Hydro PTO (claimed)11.9 kWReference
Hydraulic system10.0 LReference
Typeopen centerReference
Capacity10.0 LReference
Pressure146.9 barReference
Valves1 or 2Reference
Pump flow19.7 lpmReference
Total flow29.1 lpmReference
Steering flow9.5 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)548 kgReference
Rear PTOliveReference
Clutchtwo-stage dry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2327Reference
Mid PTOliveReference
Mid PTO Type2000Reference
Engine RPM2000@2500Reference
Capacities
Fuel18.0 LReference
2WD Max capacity1442 kgReference
4WD Max capacity1624 kgReference
Dimensions
Wheelbase150 cmReference
Weight1477 to 1676 poundsReference
Front tire5.00-12Reference
2WD Rear tire9.5-16Reference
2WD Standard tires (ag)Front: 5.00-12. Rear: 9.5-16Reference
4WD Standard tires (ag)Front: 6-12. Rear: 9.5-16Reference
Lawn/turf front24x8.50-12Reference
Lawn/turf rear315x75D-15Reference
Length275 cmReference
Width107 cmReference
Height (ROPS)195 cmReference
Height (Folded ROPS)153 cmReference
Ground clearance27 cmReference
Front tread85 to 90 cmReference
Front tread83 cmReference
Rear tread83 cmReference
2WD Hydro Shipping680 kgReference
4WD Hydro Shipping760 kgReference
Massey Ferguson 1220 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
front-end loaderReference
1220 Serial Numbers
Location:Serial number decal on the right side of the tractor, just ahead and below the seat.Reference
1995D01001Reference
1996E01001Reference
1997F01001Reference
1998G01001Reference
1999H01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA325Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Front-end loaderReference
Speeds
With 9.5-16 R1 rear tires.Reference
With 8-16 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
