Tractor · 1999Unverified

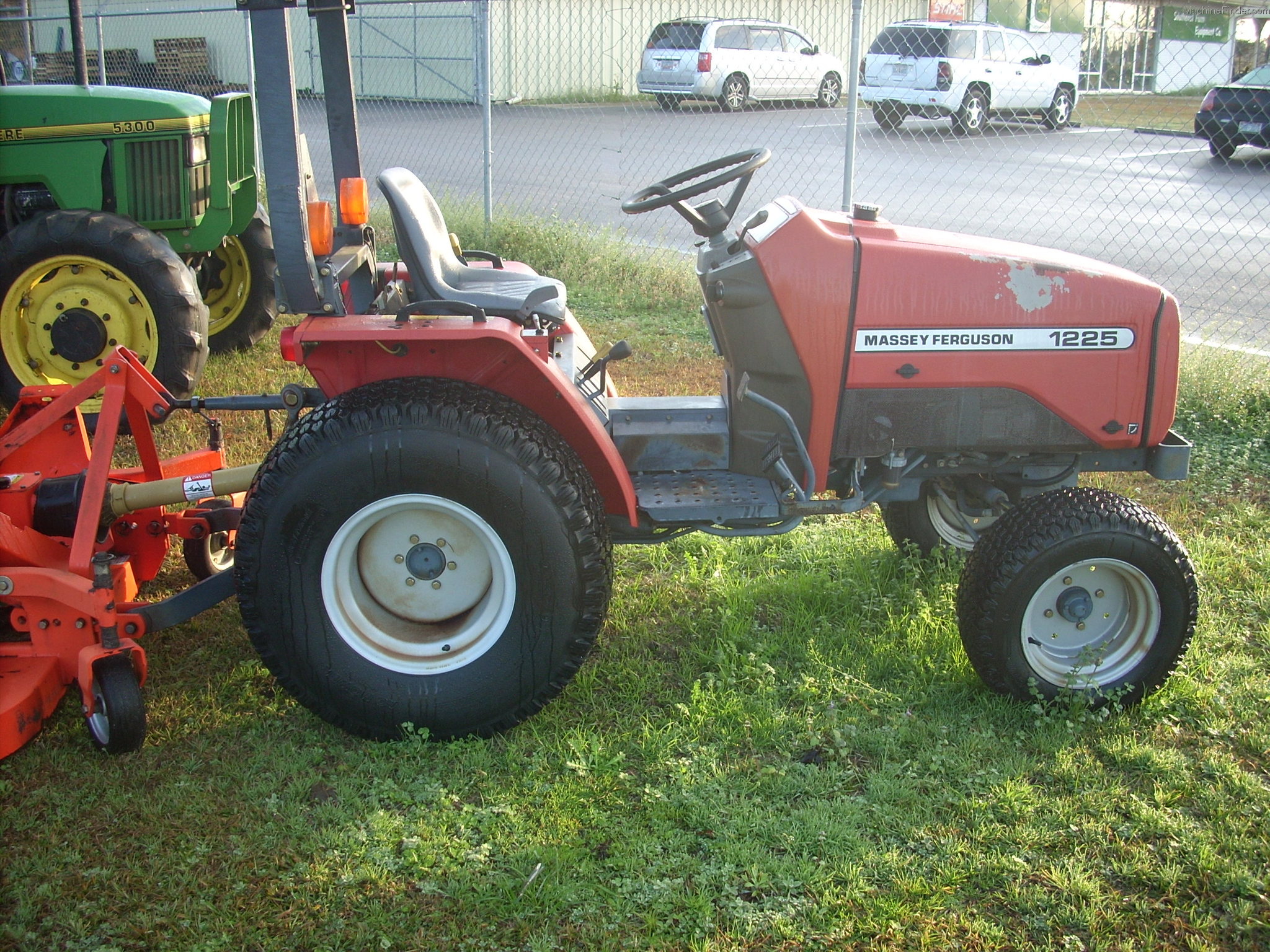

Massey Ferguson 1225
Massey Ferguson 1225 — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1367 to 1499 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Original price was $11,500 in 1999Reference
The Massey Ferguson 1225 is similar to the Iseki model TM223.Reference
Two- or four-wheel driveReference
Final drivesoutboard planetaryReference
Power steeringReference
Mechanical dry shoe brakesReference
Two-post fixed ROPS.Reference
Engine
Iseki 1.1L 3-cyl dieselReference
Engine (gross)18.1 kWReference
Engine (net)16.8 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power (net)16.8 kWReference
Power (gross)18.1 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression22.5:1Reference
Rated RPM2800Reference
Torque67.0 NmReference
Torque RPM2000Reference
Starter volts12Reference
Oil capacity2.7 LReference
Coolant capacity7.1 LReference
Transmission
6-speed gearReference
hydrostaticReference
2WD gear Shipping weight620 kgReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch184mm dry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Gear PTO (claimed)14.2 kWReference
Hydro PTO (claimed)13.7 kWReference
Hydraulic system14.0 LReference
Typeopen centerReference
Capacity14.0 LReference
Pressure137.2 barReference
Pump flow9.8 lpmReference
Total flow20.1 lpmReference
Steering flow10.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)548 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2732 (gear)Reference
Engine RPM540@2681 (hydro)Reference
Mid PTO Type2000Reference
Capacities
Fuel23.1 LReference
Dimensions
Wheelbase151 cmReference
Weight1367 to 1499 poundsReference
Front tire5.00-12Reference
2WD Rear tire9.5-16Reference
2WD Standard tires (ag)Front: 5.00-12. Rear: 9.5-16Reference
4WD Standard tires (ag)Front: 6.00-12. Rear: 9.5-16Reference
2WD Lawn/turf front23x8.50-12Reference
4WD Lawn/turf front23x10.50-12Reference
Lawn/turf rear315x75D-15Reference
Length231 cmReference
Width104 cmReference
Height (steering wheel)130 cmReference
Height (ROPS)191 cmReference
4WD hydro Shipping weight679 kgReference
Ground clearance27 cmReference
Front tread76 to 87 cmReference
Front tread87 cmReference
Rear tread74 cmReference
Rear tread87 cmReference
Massey Ferguson 1225 attachments
front-end loaderReference
1225 Serial Numbers
1999H01001Reference
2000J01001Reference
2001K01001Reference
2002L01001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA450Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
