Tractor · 1993Unverified

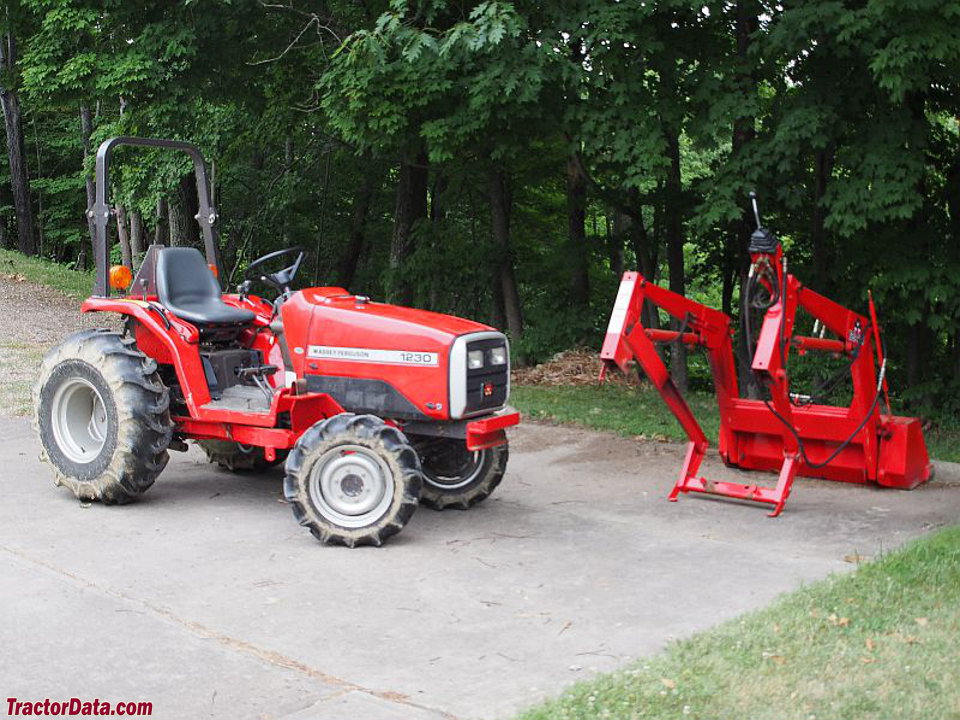

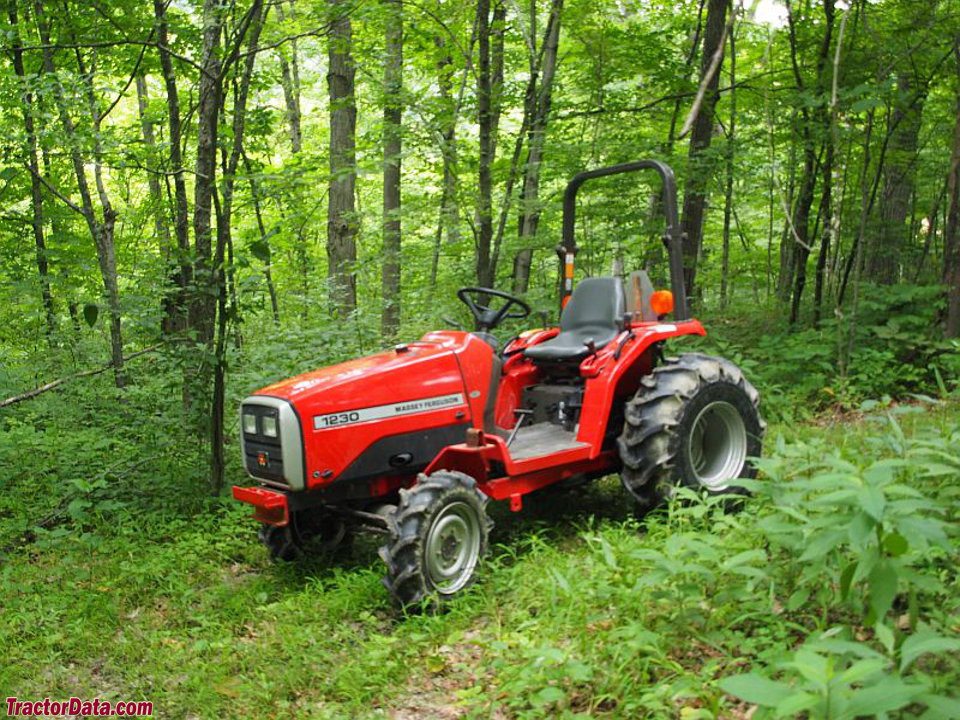

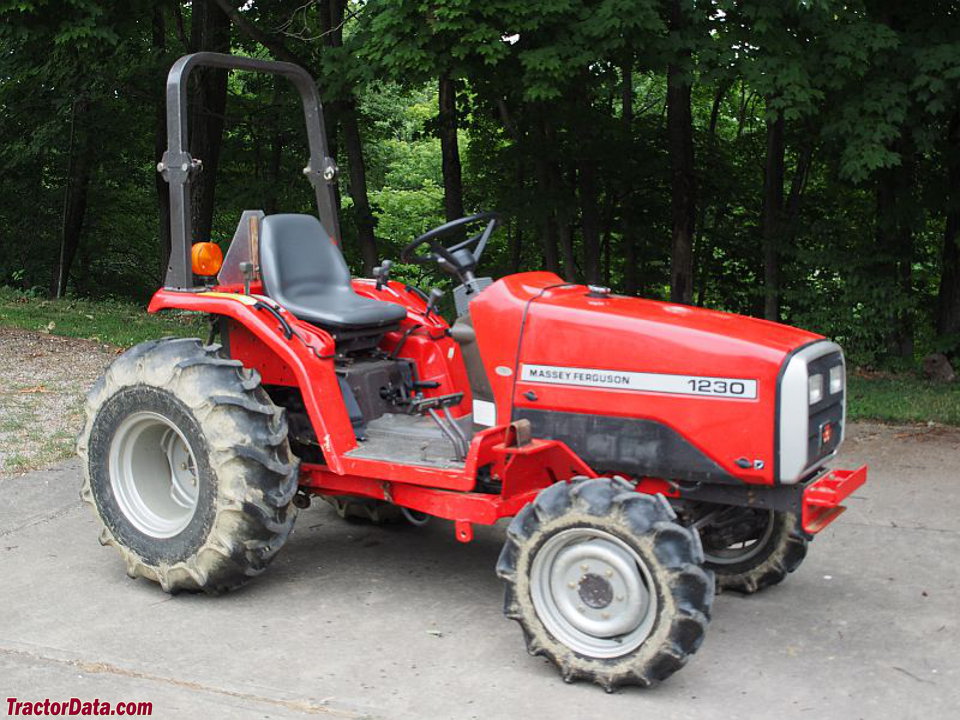

Massey Ferguson 1230

Name: Massey Ferguson 1230
Brand: Massey Ferguson

Massey Ferguson 1230 — Compact Utility tractor · 27 hp. Reference specifications; pending source verification.

The Massey Ferguson 1230 is a compact tractor, rated at 27 hp. It was manufactured from 1993 to 2002 and features a 3-cylinder diesel liquid-cooled engine that powers four-wheel drive through a hydrostatic transmission. The tractor's weight ranges from 1719 to 1962 pounds. It is designed for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

27 hp

Weight

1719 to 1962 pounds

Catalogue coverage

Variants represented

Richest spec table

121 rows

Recorded power

27 hp

Transmissions

9-speed gear

Production years

1993-2002

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerIsekiReference

Compact Utility tractorReference

Built in JapanReference

Original price was $14,000 in 1999Reference

The Massey Ferguson 1230 is similar to the Iseki model TF325.Reference

Two- or four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

SteeringmanualReference

Steeringpower assistReference

Mechanical wet disc brakesReference

Two-post folding ROPS.Reference

Variants

TF223similar Iseki modelReference

Engine

Iseki 1.4L 3-cyl dieselReference

Engine (gross)20.1 kWReference

Engine (net)18.6 kWReference

Iseki E3CEReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.4 LReference

Bore/Stroke85 x 84 mmReference

Power (net)18.6 kWReference

Power (gross)20.1 kWReference

Fuel systemindirect injectionReference

Air cleanerdryReference

Pre-heatingglow plugsReference

Compression21.5:1Reference

Rated RPM2500Reference

Idle RPM950-2750Reference

Torque79.5 NmReference

Torque RPM1800Reference

StarterelectricReference

Starter volts12Reference

Oil capacity4.0 LReference

Coolant capacity7.1 LReference

Transmission

9-speed gearReference

hydrostaticReference

12-speed creeperReference

2WD Gear Shipping779 kgReference

4WD Gear Shipping860 kgReference

TypegearReference

Gears9 forward and 3 reverseReference

Clutch215mm dry discReference

Oil capacity12.0 LReference

Three gears, plus reverse, in three ranges. Tractor must be stopped, and clutch used, to shift gear or range.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

TypecreeperReference

Gears12 forward and 4 reverseReference

Optional additional creeper range for the standard 9-speed transmission.Reference

PTO & Hydraulics

Gear PTO (claimed)16.0 kWReference

Hydro PTO (claimed)14.9 kWReference

Hydraulic system12.1 LReference

Typeopen centerReference

Capacity12.1 LReference

Pressure146.9 barReference

Valves1 or 2Reference

Pump flow22.7 lpmReference

Total flow32.2 lpmReference

Steering flow9.5 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)899 kgReference

Rear lift (at 24"/610mm)600 kgReference

Rear PTOliveReference

Clutchtwo-stage dry discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2327Reference

Mid PTOliveReference

Mid PTO Type2000Reference

Engine RPM2000@2500Reference

Capacities

Fuel22.7 LReference

2WD Max capacity1701 kgReference

4WD Max capacity1876 kgReference

Dimensions

Wheelbase164 cmReference

Weight1719 to 1962 poundsReference

Front tire5.00-15Reference

2WD Rear tire12.4-16Reference

2WD Standard tires (ag)Front: 5.00-15. Rear: 12.4-16Reference

4WD Standard tires (ag)Front: 6.00-14. Rear: 12.4-16Reference

Lawn/turf front24x8.50-12Reference

Lawn/turf rear315x80D-16Reference

Length295 cmReference

Width140 cmReference

Height (ROPS)200 cmReference

Height (Folded ROPS)159 cmReference

Ground clearance30 cmReference

2WD Front tread91 to 101 cmReference

4WD Front tread96 cmReference

Rear tread109 cmReference

2WD Hydro Shipping810 kgReference

4WD Hydro Shipping889 kgReference

Massey Ferguson 1230 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

1230 Serial Numbers

Location:Serial number decal on the right side of the tractor, just ahead and below the seat.Reference

1993B30101Reference

1994C30101Reference

1995D30101Reference

1996E30101Reference

1997FC0101Reference

1998BD01001Reference

1999HD01001Reference

2000JD01001Reference

2001KD01001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA582Reference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

Speeds

With 12.4-16 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
