Tractor · 2001Unverified

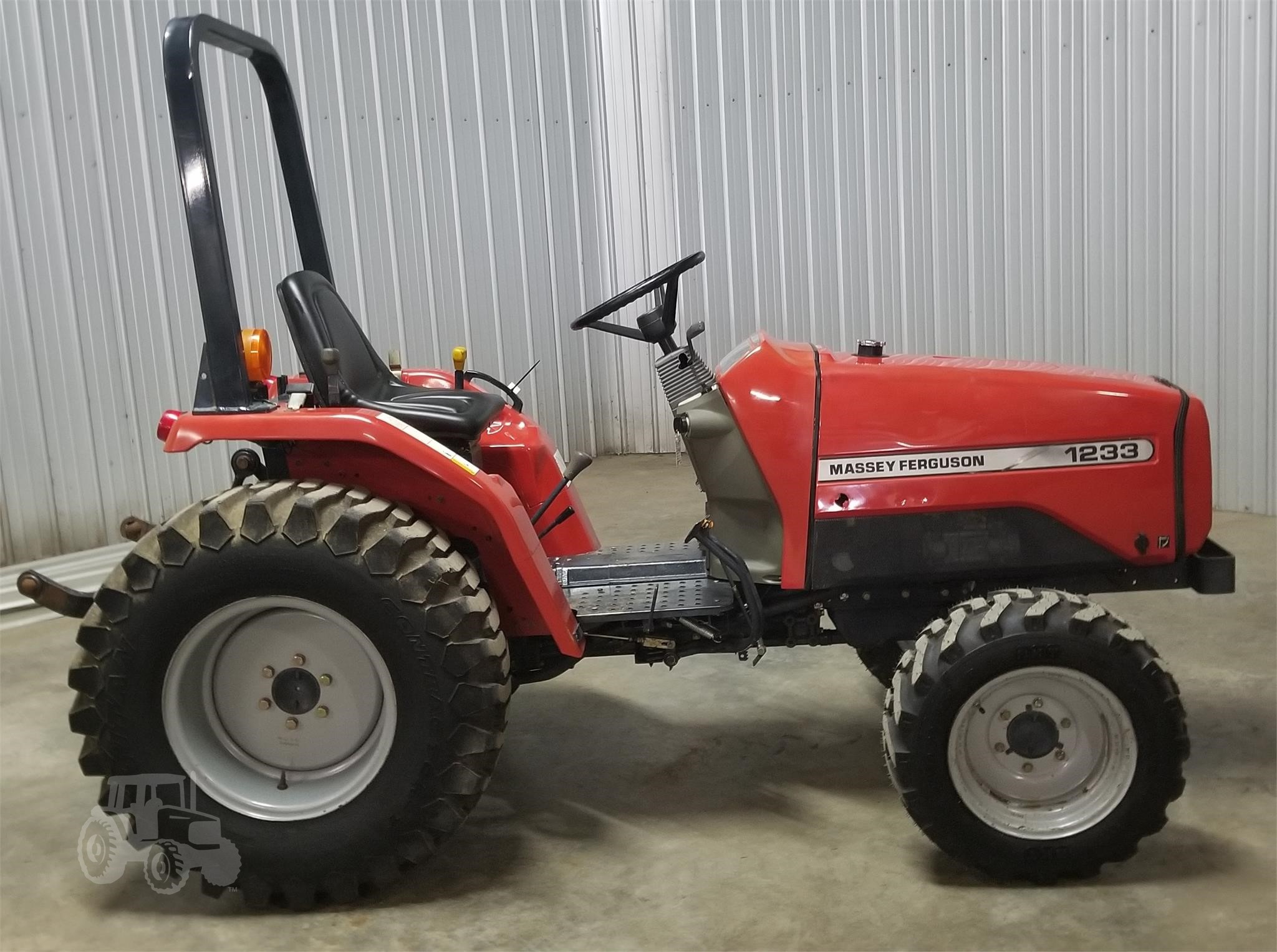

Massey Ferguson 1233
Massey Ferguson 1233 — Compact Utility tractor · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1808 to 1984 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Original price was $11,500 in 2002Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post fixed ROPS.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Engine (gross)21.2 kWReference
Engine (net)20.6 kWReference
Iseki E3CFReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke86 x 84 mmReference
Power (net)20.6 kWReference
Power (gross)21.2 kWReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression21.7:1Reference
Rated RPM2500Reference
Torque95.5 NmReference
Torque RPM1500Reference
Starter volts12Reference
Oil capacity3.6 LReference
Coolant capacity7.1 LReference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutch225mm dry discReference
PTO & Hydraulics
PTO (claimed)18.3 kWReference
Hydraulic system14.0 LReference
Typeopen centerReference
Capacity14.0 LReference
Pressure146.9 barReference
Valves2Reference
Pump flow22.7 lpmReference
Total flow32.2 lpmReference
Steering flow9.5 lpmReference
Rear TypeIReference
Rear lift (at ends)899 kgReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2327Reference
Mid PTO Type2000Reference
Engine RPM2000@2500Reference
Capacities
Fuel22.7 LReference
Dimensions
Wheelbase164 cmReference
Weight1808 to 1984 poundsReference
Front tire5.00-15Reference
2WD Rear tire12.4-16Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 12.4-16Reference
4WD Standard tires (ag)Front: 6-14. Rear: 12.4-16Reference
Lawn/turf front24x8.50-12Reference
Lawn/turf rear315x80D-16Reference
Industrial front25x8.5-14Reference
Industrial rear12.5/80-18Reference
Length295 cmReference
Width140 cmReference
Height (ROPS)198 cmReference
2WD Weight820 kgReference
4WD Weight899 kgReference
Ground clearance20 cmReference
2WD Front tread91 to 101 cmReference
4WD Front tread96 cmReference
Rear tread109 cmReference
Massey Ferguson 1233 attachments
snowblowerReference
bladeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA582Reference
Battery volts12Reference
Attachment overview
SnowblowerReference
BladeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
