Tractor · 1997Unverified

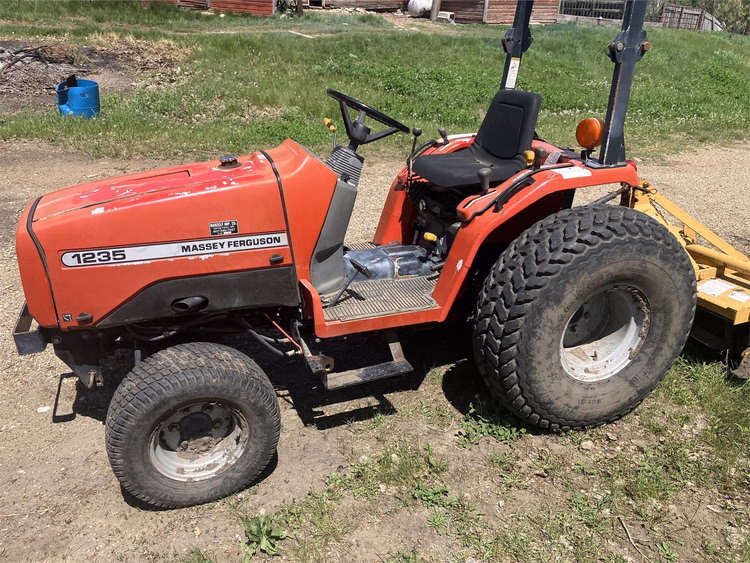

Massey Ferguson 1235

Name: Massey Ferguson 1235
Brand: Massey Ferguson

Massey Ferguson 1235 — Compact Utility tractor · 32 hp. Reference specifications; pending source verification.

The Massey Ferguson 1235 is a tractor with a power rating of approximately 32 hp, positioning it at the lower end of its class. It was manufactured from 1997 to 2002. The model features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. Its operating weight is 1134 kg.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

32 hp

Weight

1134 kg

Catalogue coverage

Variants represented

Richest spec table

72 rows

Recorded power

32 hp

Recorded weight

1134 kg

Transmissions

hydrostatic

Production years

1997-2002

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerIsekiReference

Compact Utility tractorReference

Original price was $18,000 in 1999Reference

The Massey Ferguson 1235 is similar to the Iseki model TF330.Reference

Four-wheel driveReference

Steeringpower assistReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Iseki 1.5L 3-cyl dieselReference

Engine (gross)23.9 kWReference

Engine (net)22.4 kWReference

Iseki E3CDReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Power (net)22.4 kWReference

Power (gross)23.9 kWReference

Fuel systemindirect injectionReference

Air cleanerdryReference

Pre-heatingglow plugsReference

Compression21.8:1Reference

Rated RPM2500Reference

Torque97.1 NmReference

Torque RPM1800Reference

Starter volts12Reference

Coolant capacity7.1 LReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)19.0 kWReference

Hydraulic system12.1 LReference

Typeopen centerReference

Capacity12.1 LReference

Pump flow22.7 lpmReference

Total flow32.2 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)899 kgReference

Rear PTOliveReference

Rear PTO Type540Reference

Engine RPM540@2327Reference

Mid PTOliveReference

Mid PTO Type2000Reference

Engine RPM2000@2482Reference

Capacities

Fuel22.7 LReference

Dimensions

Wheelbase163 cmReference

Weight1134 kgReference

Front tire6.00-14Reference

Rear tire12.4-16Reference

Ag front6.00-14Reference

Ag rear12.4-16Reference

Length295 cmReference

Width141 cmReference

Height (ROPS)200 cmReference

Height (ROPS)159 cmReference

Ground clearance30 cmReference

Front tread96 cmReference

Rear tread109 cmReference

Massey Ferguson 1235 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
