Tractor · 1992Unverified
Massey Ferguson 1240
Massey Ferguson 1240 — Compact Utility tractor · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
2535 to 2645 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Original price was $15,000 in 1999Reference
The Massey Ferguson 1240 is similar to the Iseki model TK527.Reference
Two- or four-wheel driveReference
Steeringpower assistReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
1240-22WDReference
Engine
Iseki 1.5L 3-cyl dieselReference
Engine (gross)21.2 kWReference
Engine (net)20.6 kWReference
Iseki E3CFReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke86 x 84 mmReference
Power (net)20.6 kWReference
Power (gross)21.2 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression21.5:1Reference
Rated RPM2500Reference
Torque93.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Coolant capacity6.5 LReference
Transmission
16-speed synchro shuttleReference
Typesynchro shuttleReference
Gears16 forward and reverseReference
Clutch225mm dry discReference
Four gears in four ranges with shuttle. Synchronized shifts between gears 3 and 4.Reference
PTO & Hydraulics
PTO (claimed)17.0 kWReference
Hydraulic system23.1 LReference
Typeopen centerReference
Capacity23.1 LReference
Pump flow22.7 lpmReference
Total flow34.8 lpmReference
Steering flow12.1 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1300 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2389Reference
Mid PTOindependentReference
Mid PTO Type1885Reference
Engine RPM1885@2500Reference
Capacities
Fuel29.9 LReference
Dimensions
Wheelbase164 cmReference
Weight2535 to 2645 poundsReference
Front tire5.00-15Reference
Rear tire11.2-24Reference
Ag front5.00-15Reference
Ag rear11.2-24Reference
Length301 cmReference
Width139 cmReference
Height (ROPS)213 cmReference
Height (Folded ROPS)171 cmReference
2WD Shipping weight1149 kgReference
4WD Shipping weight1199 kgReference
Ground clearance29 cmReference
2WD Front tread95 to 105 cmReference
4WD Front tread105 cmReference
Rear tread109 to 141 cmReference
Massey Ferguson 1240 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference

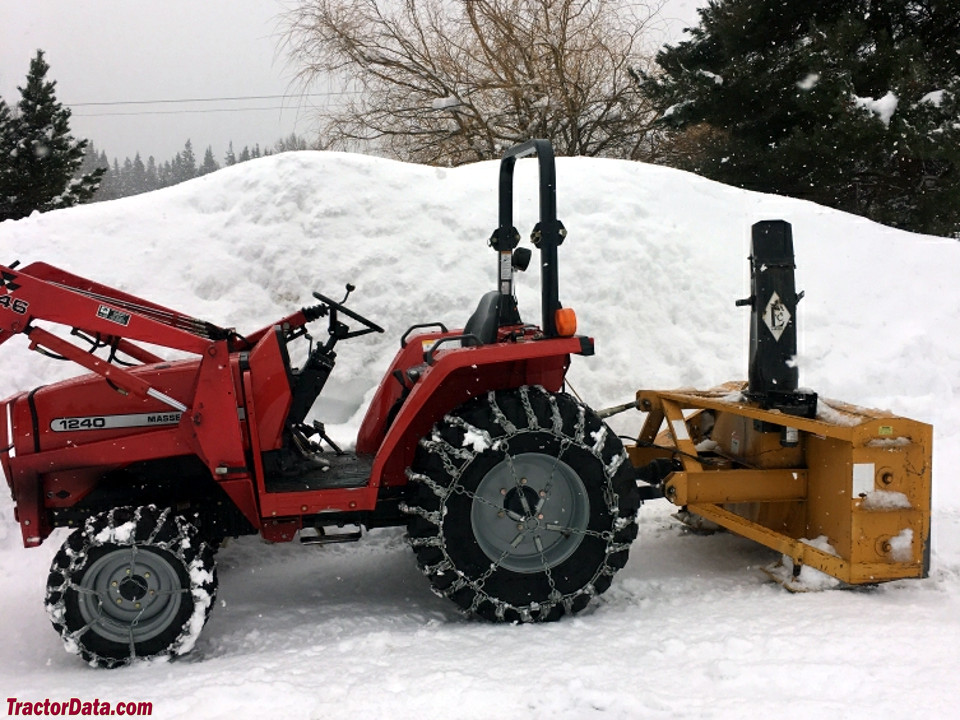

snowblowerReference

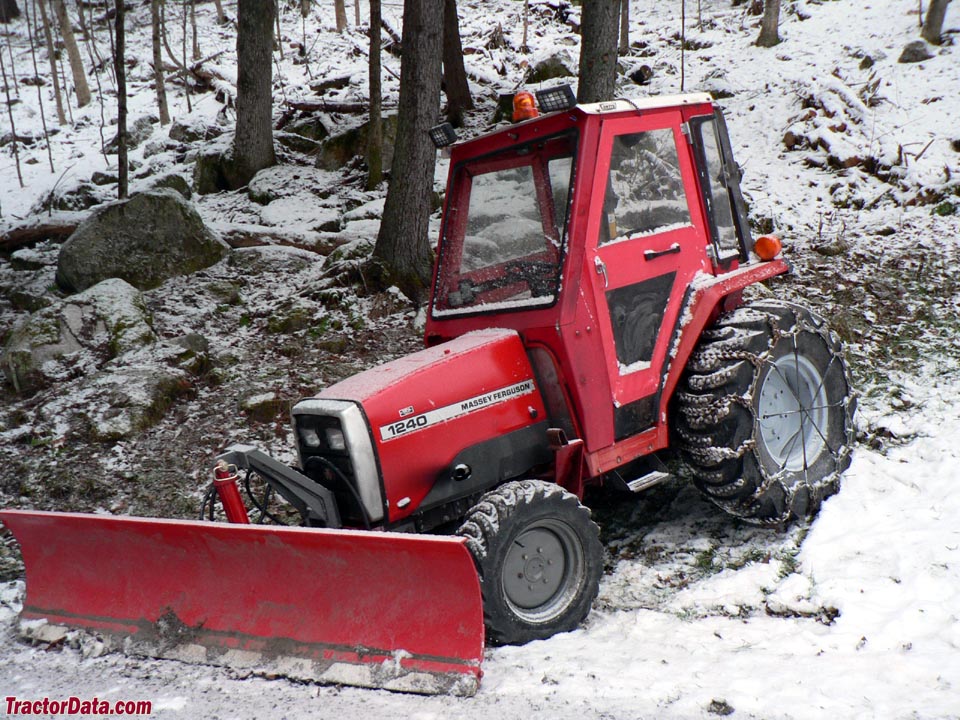

bladeReference
front-end loaderReference
backhoeReference
1240 Serial Numbers
1992A00001Reference
1993B00001Reference
1994C00001Reference
1995D00001Reference
1996E00001Reference
1997FF00001Reference
1998GF00001Reference
1999HF00001Reference
2000JF00001Reference
2001KF00001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
Massey Ferguson 1217 Backhoe
Backhoe typeMassey Ferguson 1217 BackhoeReference
Speeds
With 11.2-24 rear tires. Reverse speeds are 5% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
