Tractor · 2002Unverified

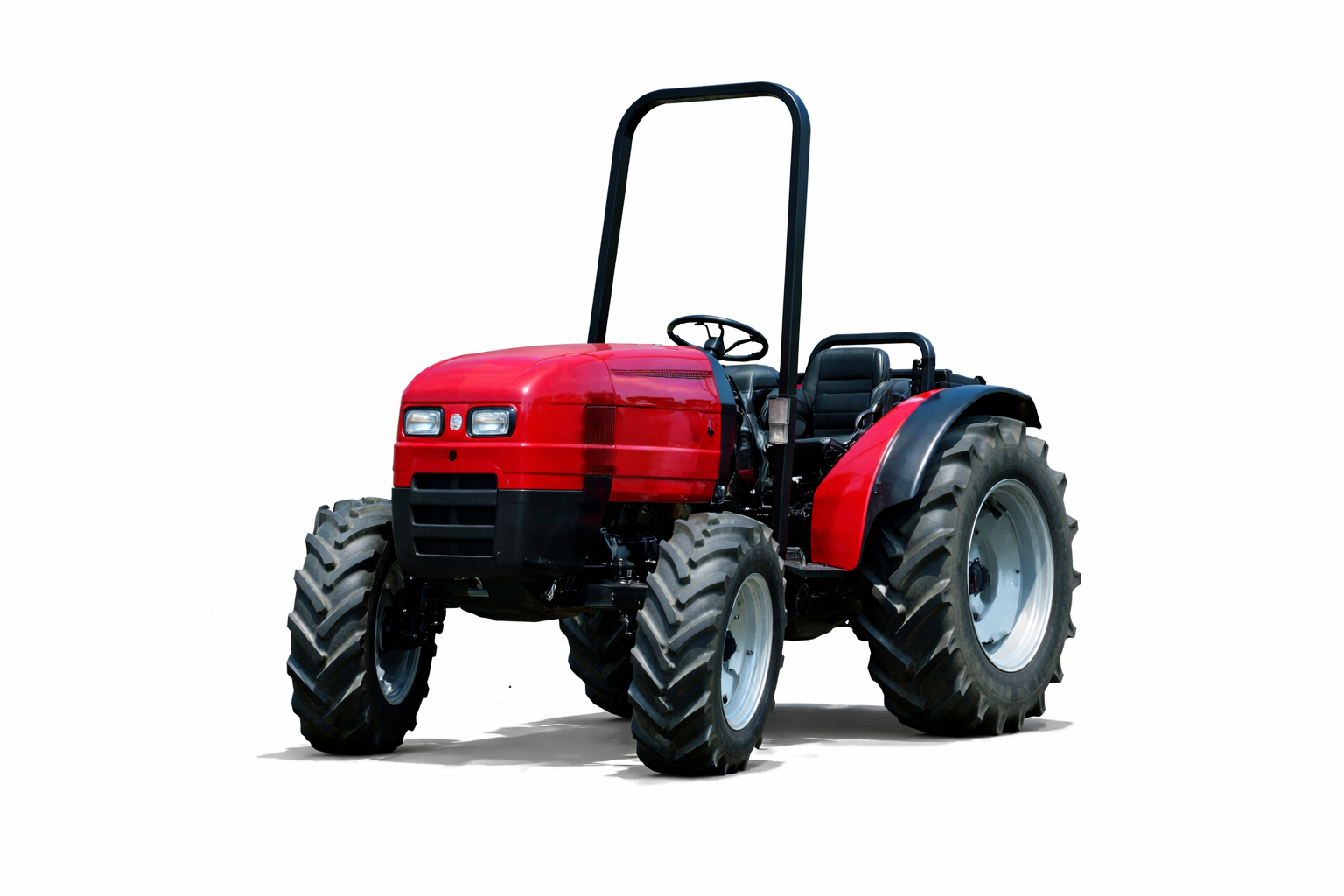

Massey Ferguson 1325

Name: Massey Ferguson 1325
Brand: Massey Ferguson

Massey Ferguson 1325 — Compact Utility tractor · 27 hp. Reference specifications; pending source verification.

The Massey Ferguson 1325 is a compact tractor with a rated output of 27 hp, making it suitable for smaller-scale applications. It was manufactured from 2002 to 2004 and features a 3-cylinder electric liquid-cooled engine. The tractor is equipped with four-wheel drive and a hydrostatic transmission, with a listed weight of 1005 kg. It is designed for use on land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

27 hp

Weight

1005 kg

Catalogue coverage

Variants represented

Richest spec table

41 rows

Recorded power

27 hp

Recorded weight

1005 kg

Transmissions

12-speed mechanical shuttle

Production years

2002-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Mechanical wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Mitsubishi 3-cylReference

Fuel tank29.1 LReference

Engine20.1 kWReference

MitsubishiReference

3-cylinderReference

liquid-cooledReference

Power20.1 kWReference

Rated RPM3000Reference

Torque69.0 NmReference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed mechanical shuttleReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

PTO & Hydraulics

Valves2Reference

Pump flow22.0 lpmReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Mid PTO1000Reference

Front PTO2000Reference

Dimensions

Wheelbase153 cmReference

Weight1005 kgReference

Front tire6.50/80-12Reference

Rear tire250/80-18Reference

Standard tires (ag)Front: 6.50/80-12. Rear: 250/80-18Reference

Optional tires (ag)Front: 7.00-12. Rear: 11.2R20Reference

Lawn/turf front23x8.50-12Reference

Lawn/turf rear33x12.50-15Reference

Length268 cmReference

Height (steering wheel)122 cmReference

Height (hood)113 cmReference

Ground clearance28 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
