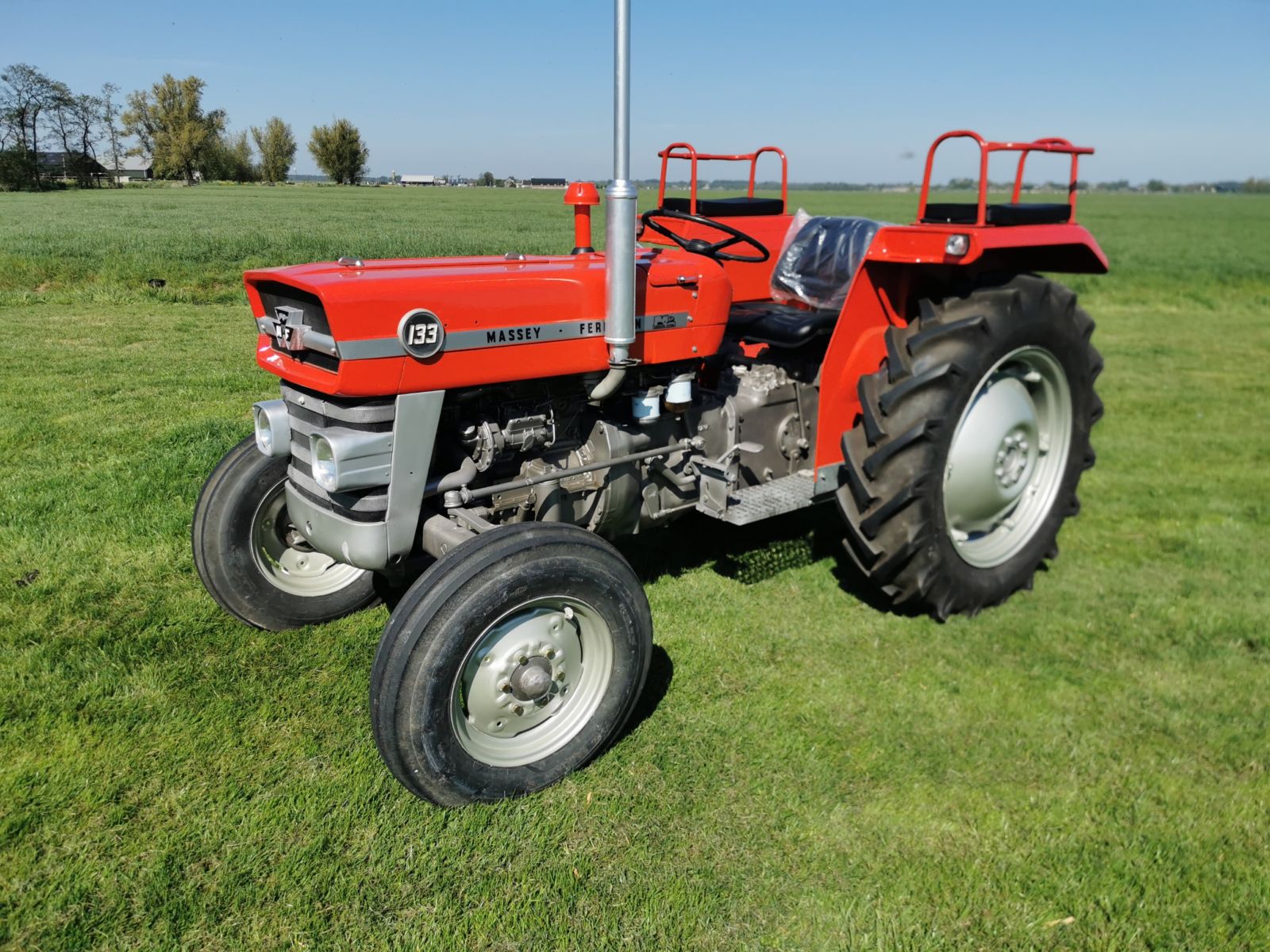

The Massey Ferguson 133 is a compact tractor with a 38 hp rating, making it a suitable option for smaller-scale operations. Manufactured from 1969 to 1974, this model features a 3-cylinder diesel liquid-cooled engine and a 6-speed gearbox in a two-wheel drive configuration. The listed weight for the tractor is 1440 kg, and it is intended for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1440 kg
Catalogue coverage
Variants represented
2
Richest spec table
59 rows
Recorded power
38 hp
Recorded weight
1440 kg
Transmissions
6-speed gear
Production years
1969-1974
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Beauvais, FranceReference
Two-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station. ROPS optional.Reference
Engine
Perkins 2.4L 3-cyl dieselReference
Engine28.0 kWReference
Perkins AD3.144Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke89 x 127 mmReference
Power28.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdry elementReference
Compression16.5:1Reference
Rated RPM2000Reference
Torque135.3 NmReference
Torque RPM1300Reference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity10.2 LReference
Transmission
6-speed gearReference
8-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Three gears, plus reverse, in two ranges.Reference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges.Reference
Capacities
Fuel47.7 LReference
PTO & Hydraulics
Hydraulic system26.9 LReference
Capacity26.9 LReference
Pressure171.7 barReference
Pump flow18.2 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1428 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1700Reference
Dimensions
Wheelbase188 cmReference
Weight1440 kgReference
Front tire6.00-16Reference
Rear tire12.4/11-28Reference
Ag front6.00-16Reference
Ag rear12.4/11-28Reference
Ag front4.00-19Reference
Ag rear11.2/10-28Reference
Length299 cmReference
Width162 cmReference
Height (steering wheel)138 cmReference
Clearance (drawbar)32 cmReference
Front tread121 to 203 cmReference
Rear tread121 to 189 cmReference
Speeds
With 11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
