Tractor · 1975Unverified

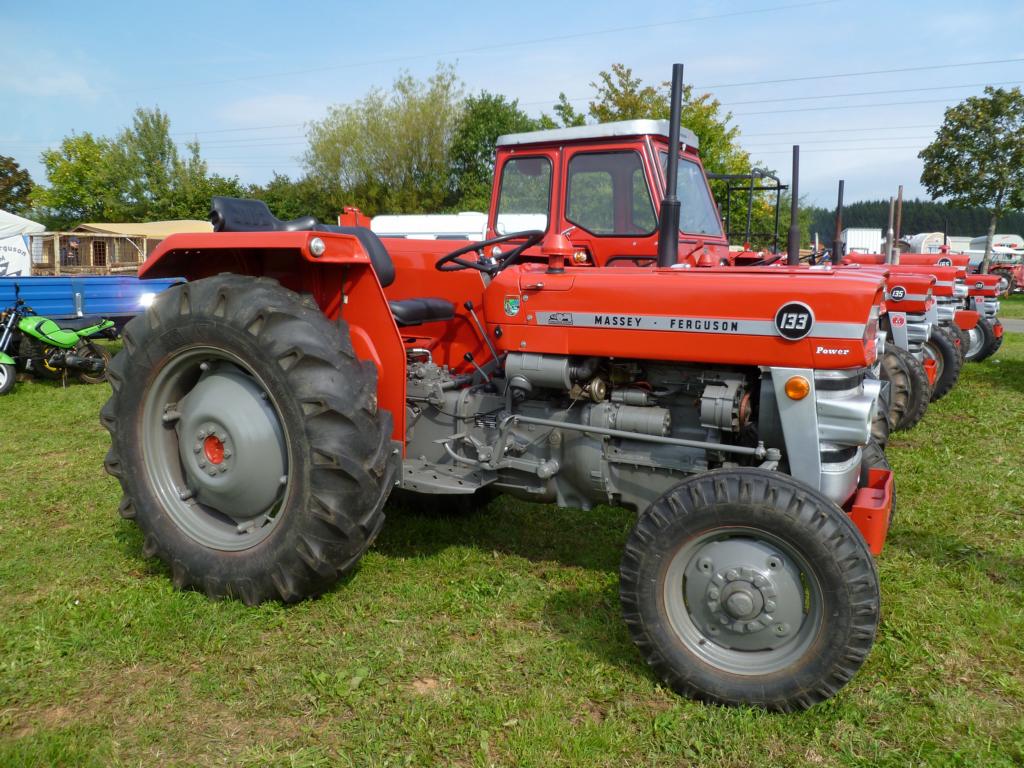

Massey Ferguson 133 Super
Massey Ferguson 133 Super — Utility tractor · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
1910 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Two-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station. ROPS optional.Reference
Engine
Perkins 2.4L 3-cyl dieselReference
Engine31.3 kWReference
Perkins AD3.144Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke89 x 127 mmReference
Power31.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdry elementReference
Compression16.5:1Reference
Rated RPM2150Reference
Torque135.3 NmReference
Torque RPM1300Reference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity10.2 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Capacities
Fuel47.7 LReference
PTO & Hydraulics
Hydraulic system26.9 LReference
Capacity26.9 LReference
Pressure171.7 barReference
Pump flow18.2 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1428 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1685Reference
Mid PTO Type1146:1875Reference
Dimensions
Wheelbase191 cmReference
Weight1910 kgReference
Front tire6.00-16Reference
Rear tire12.4/11-28Reference
Ag front6.00-16Reference
Ag rear12.4/11-28Reference
Ag front6.00-19Reference
Ag rear11.2/10-28Reference
Ag rear11-32Reference
Length303 cmReference
Width163 cmReference
Height (steering wheel)139 cmReference
Height (ROPS)232 cmReference
Ground clearance33 cmReference
Clearance (drawbar)32 cmReference
Front tread121 to 203 cmReference
Rear tread132 to 193 cmReference
Speeds
With 11-32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
