Tractor · 1972Unverified

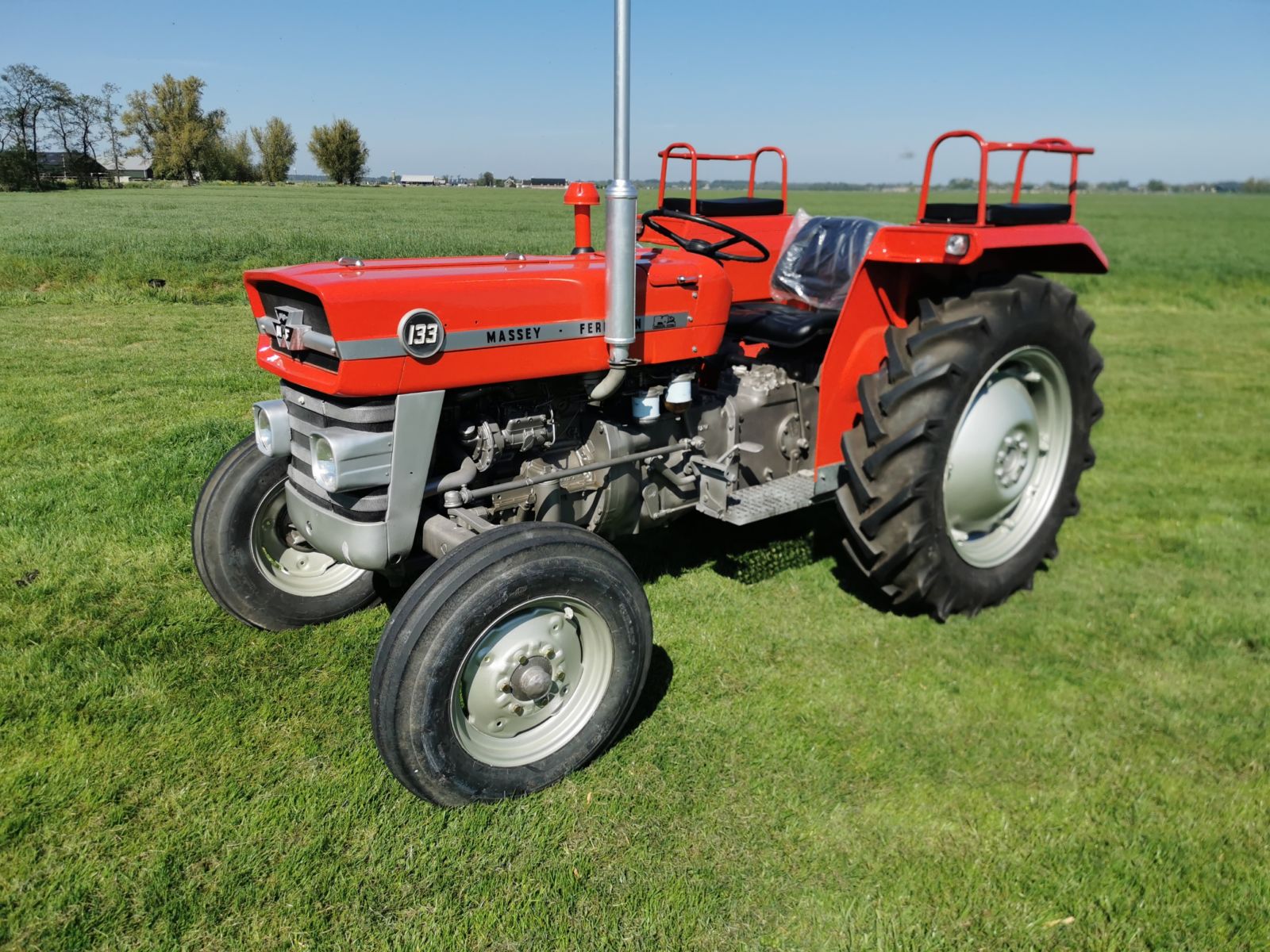

Massey Ferguson 133 Westland
Massey Ferguson 133 Westland — Utility tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
3541 to 3961 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Coventry, EnglandReference
Total built5000Reference
Original price was GBP1210 in 1974Reference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station. Cab optional.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank47.7 LReference
Engine (net)33.6 kWReference
Perkins AD3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Rated Power (net)33.6 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression18.5:1Reference
Rated RPM2250Reference
Torque177.6 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity1.7 LReference
Coolant capacity10.2 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch305mm mechanical dry discReference
Oil capacity25.0 LReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
PTO (claimed)25.0 kWReference
Typeopen centerReference
Pressure172.4 barReference
Pump flow18.2 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)1428 kgReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1500Reference
Engine RPM810@2250Reference
Dimensions
Wheelbase188 cmReference
Weight3541 to 3961 poundsReference
Front tire6.00-16Reference
Rear tire12.4/11-28Reference
Ag front6.00-16Reference
Ag rear12.4/11-28Reference
Length298 cmReference
Width162 cmReference
Height (steering wheel)140 cmReference
Height (exhaust)217 cmReference
Weight1606 kgReference
Weight1796 kgReference
Safety cab190 kgReference
Ground clearance33 cmReference
Front tread121 to 203 cmReference
Rear tread132 to 193 cmReference
Capacities
RPM2250Reference
Speed1062.53 meters/minReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH96Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
