Tractor · Unverified

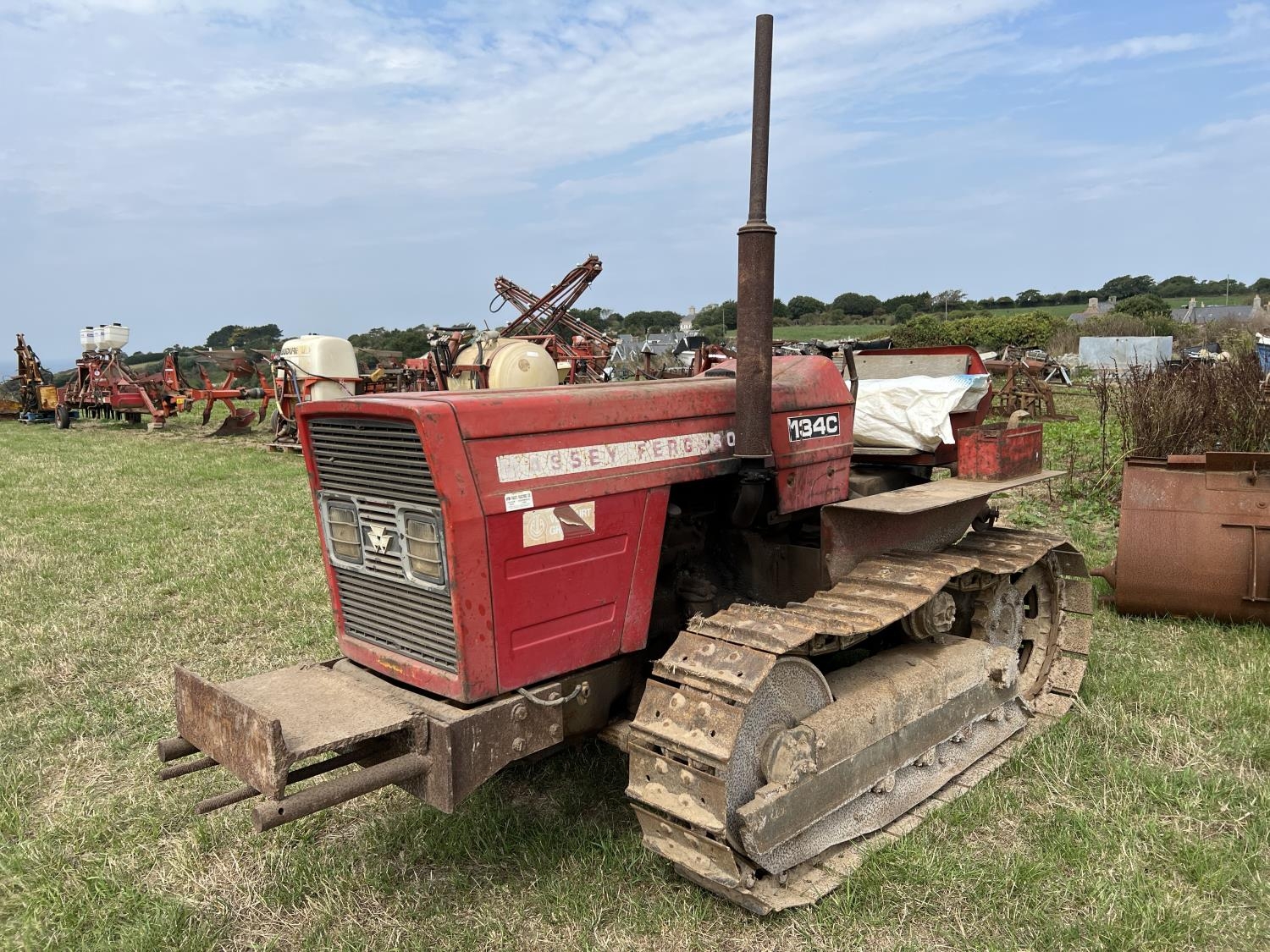

Massey Ferguson 134C
Massey Ferguson 134C — Agricultural Crawler tractor · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
2600 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Open operator station.Reference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank60.6 LReference
Engine34.6 kWReference
PerkinsReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power34.6 kWReference
Fuel systemdirect injectionReference
Compression17.4:1Reference
Rated RPM2200Reference
Starter typeelectricReference
Oil capacity6.8 LReference
Coolant capacity10.4 LReference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
Oil capacity14.0 LReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM1000@1916Reference
Dimensions
Wheelbase134 cmReference
Weight2600 kgReference
11-inch tracksReference
Length260 cmReference
Width132 cmReference
Height (hood)117 cmReference
Gauge103 cmReference
Massey Ferguson 134C Tracks
Width27 cmReference
Width24 cmReference
Width30 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
