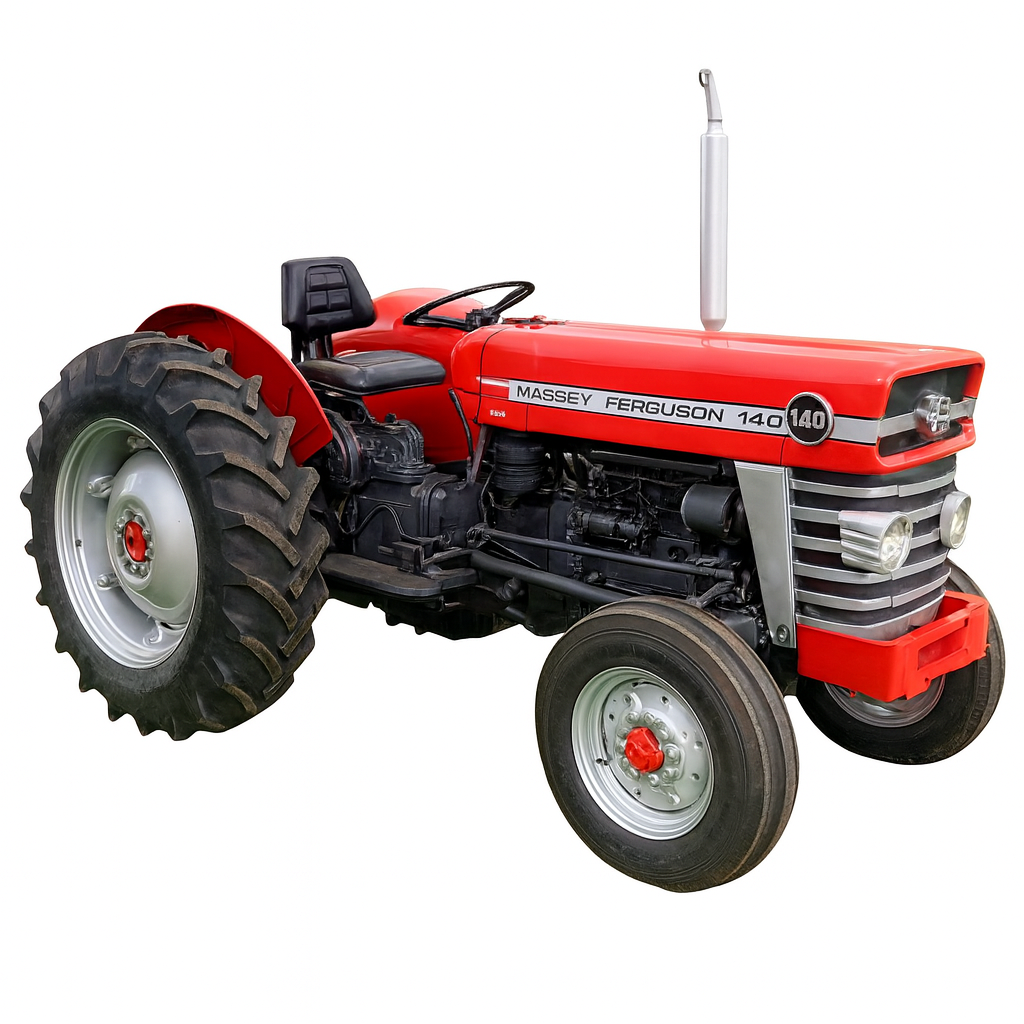

The Massey Ferguson 140 is a tractor model with a rated power output of 43 hp, situated at the lighter end of its class. It was manufactured from 1966 to 1975. It is equipped with a 3-cylinder diesel liquid-cooled engine, paired with two-wheel drive and a 6-speed gearbox. The operating weight of the Massey Ferguson 140 is listed at 1450 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
1450 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
43 hp
Recorded weight
1450 kg
Transmissions
6-speed
Production years
1966-1975
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Built in FranceReference
Two-wheel driveReference
Mechanical drum brakesReference
Open operator stationReference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank38.6 LReference
Engine32.1 kWReference
Perkins AD 3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power32.1 kWReference
Compression18.5:1Reference
Rated RPM2150Reference
Starter volts12Reference
Oil capacity6.5 LReference
Coolant capacity10.2 LReference
Transmission
6-speedReference
12-speedReference
Gears6 forward and 2 reverseReference
Oil capacity30.0 LReference
TransmissionMultiPowerReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Total flow19.5 lpmReference
Rear TypeIReference
Rear lift1031 kgReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Dimensions
Wheelbase182 cmReference
Weight1450 kgReference
Front tire6x16Reference
Rear tire11x28Reference
Ag front6x16Reference
Ag rear11x28Reference
Length299 cmReference
Width162 cmReference
Ground clearance32 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
