Tractor · 2003Unverified

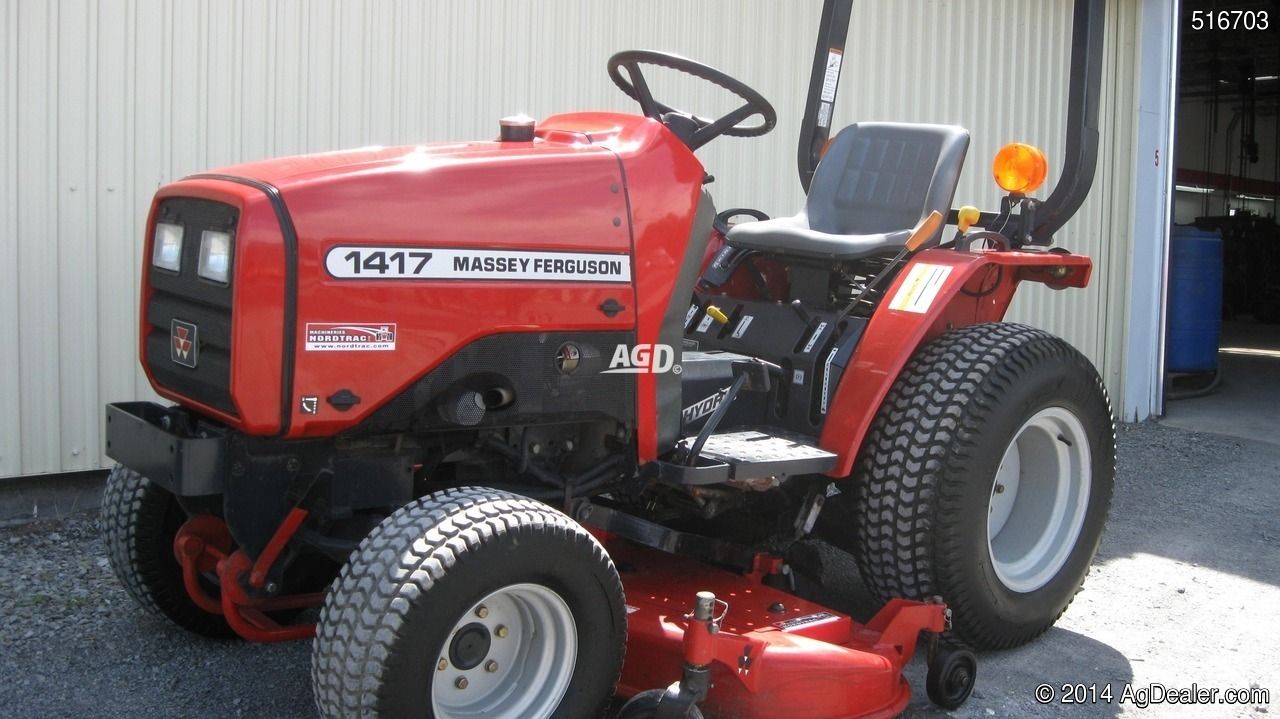

Massey Ferguson 1417
Massey Ferguson 1417 — Compact Utility tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
645 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Power steeringReference
Dry shoe brakesReference
Two-post fixed ROPS.Reference
Engine
Iseki 0.9L 3-cyl dieselReference
Fuel tank13.6 LReference
Engine (gross)12.4 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
EmissionsTier 2Reference
Power (gross)12.4 kWReference
Fuel systemindirect injectionReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
6-speed gearReference
hydrostaticReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Gear PTO (claimed)9.9 kWReference
Hydro PTO (claimed)9.4 kWReference
Typeopen centerReference
Pressure137.2 barReference
Pump flow18.2 lpmReference
Total flow23.8 lpmReference
Steering flow5.7 lpmReference
Rear TypeIReference
Controlposition and response controlReference
Rear lift (at ends)479 kgReference
Rear Armsfixed link ends with turn-buckle stabilizersReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOstandardReference
Mid PTO Type2000Reference
Dimensions
Wheelbase142 cmReference
Weight645 kgReference
Rear tire8-16Reference
Ag rear8-16Reference
Length254 cmReference
Width99 cmReference
Height (ROPS)188 cmReference
Front tread74 cmReference
Rear tread76 to 94 cmReference
Massey Ferguson 1417 attachments
54" mid-mount mower deckReference
bladeReference
front-end loaderReference
1417 Serial Numbers
2002LA0001Reference
2003MA0001Reference
2004NA0001Reference
2005P0001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
BladeReference
Front-end loaderReference
The Massey Ferguson 1417 was advertised as compatible with 48-inch rear rotary mowers, 60-inch rear finish mowers, 48-inch box blades, and 48-inch tillers.Reference
54" Mower deck
Typemid-mount Massey Ferguson 1232Reference
Type3-bladeReference
Cutting width137 cmReference
Overall width171 cmReference
Cut height5 to 10 cmReference
Cut positions5Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
