Tractor · 2002Unverified

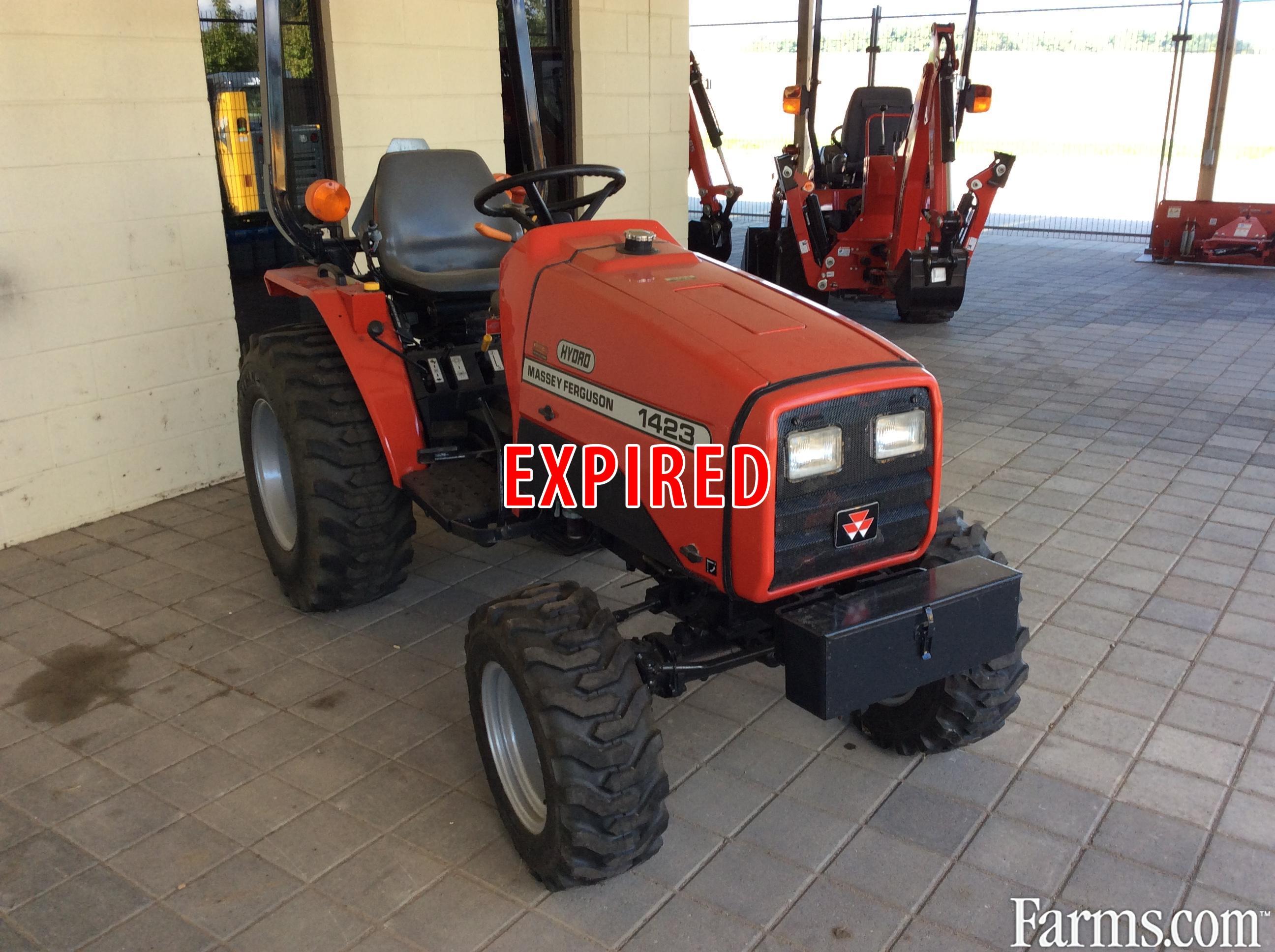

Massey Ferguson 1423
Massey Ferguson 1423 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
679 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Power steeringReference
Dry shoe brakesReference
Two-post fixed ROPS.Reference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine (gross)17.4 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
EmissionsTier 2Reference
Power (gross)17.4 kWReference
Fuel systemindirect injectionReference
Rated RPM2800Reference
Starter volts12Reference
Transmission
6-speed gearReference
hydrostaticReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)14.5 kWReference
PTO (claimed)14.2 kWReference
Typeopen centerReference
Pressure137.2 barReference
Pump flow20.2 lpmReference
Total flow30.3 lpmReference
Steering flow10.0 lpmReference
Rear TypeIReference
Controlposition and response controlReference
Rear lift (at ends)548 kgReference
Rear Armsfixed link ends with turn-buckle stabilizersReference
Rear PTOtransmission (gear)Reference
Rear PTOindependent (hydro)Reference
Rear PTO Type540Reference
Mid PTOstandardReference
Mid PTO Type2000Reference
Dimensions
Wheelbase152 cmReference
Weight679 kgReference
Rear tire12-16.5Reference
Ag rear12-16.5Reference
Length267 cmReference
Width104 cmReference
Height (ROPS)191 cmReference
Front tread74 cmReference
Rear tread80 to 91 cmReference
Massey Ferguson 1423 attachments
60" mid-mount mower deckReference
bladeReference
front-end loaderReference
1423 Serial Numbers
2002LM0001Reference
2003MM0001Reference
2004NM0001Reference
2005P0001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
BladeReference
Front-end loaderReference
The Massey Ferguson 1423 was advertised as compatible with 48-inch rear rotary mowers, 60-inch rear finish mowers, 48-inch box blades, and 48-inch tillers.Reference
60" Mower deck
Typemid-mount Massey Ferguson 1232Reference
Type3-bladeReference
Cutting width152 cmReference
Overall width189 cmReference
Cut height5 to 10 cmReference
Cut positions5Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
