Tractor · 2002Unverified

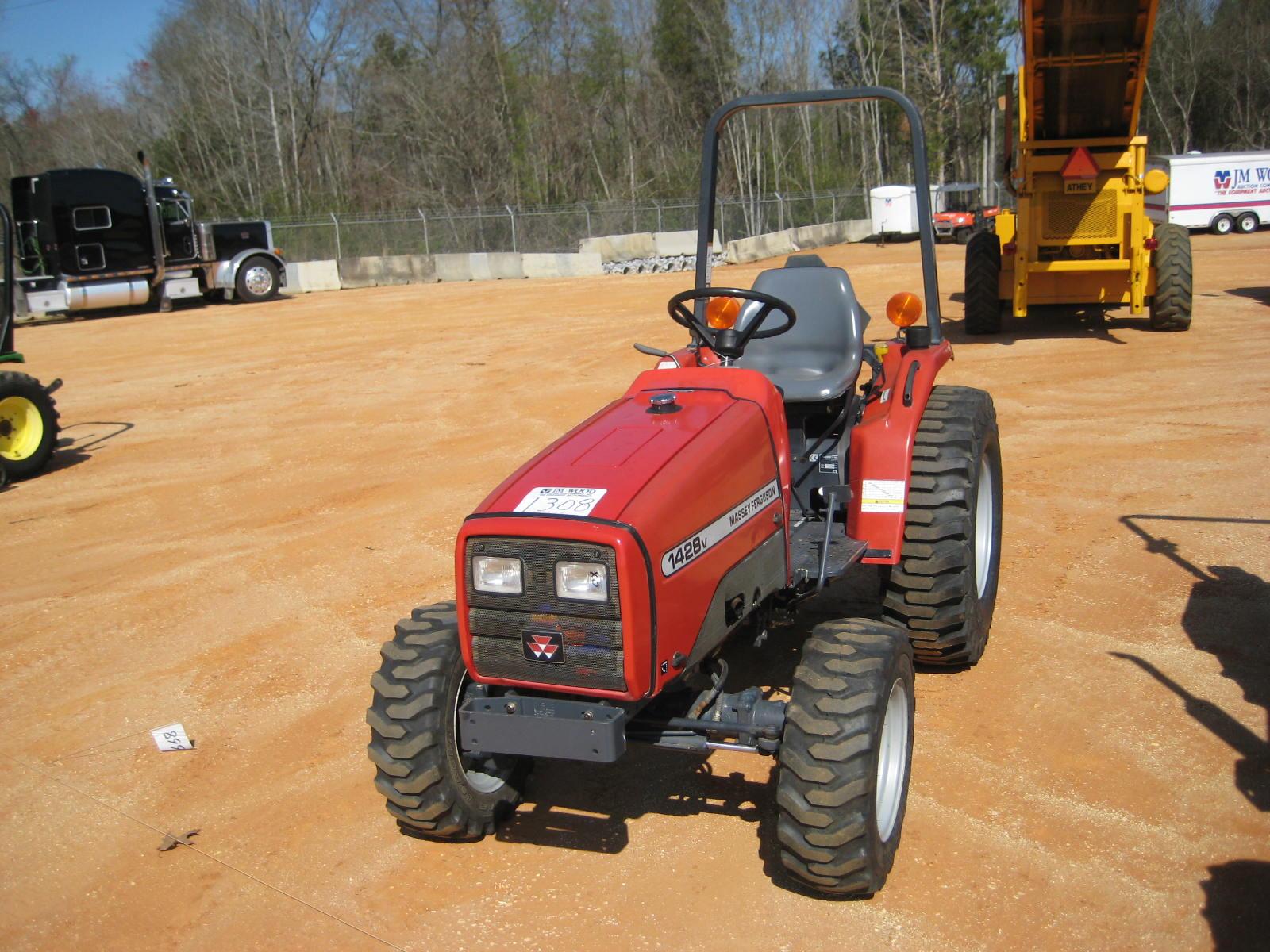

Massey Ferguson 1428
Massey Ferguson 1428 — Compact Utility tractor · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
2013 to 2345 pounds
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS. Soft-side weather cab optional.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine (gross)21.2 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
EmissionsTier 2Reference
Power (gross)21.2 kWReference
Fuel systemindirect injectionReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
9-speed gearReference
hydrostaticReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)18.3 kWReference
PTO (claimed)16.6 kWReference
Typeopen centerReference
Pressure147.1 barReference
Pump flow28.0 lpmReference
Total flow37.9 lpmReference
Steering flow9.8 lpmReference
Rear TypeIReference
Controlposition and response control, draft control optionalReference
Rear lift (at ends)899 kgReference
Rear lift (at ends)1099 kgReference
Rear lift (at 24"/610mm)600 kgReference
Rear Armsfixed link ends with turn-buckle stabilizersReference
Rear PTOlive (gear)Reference
Rear PTOindependent (hydro)Reference
Clutchdual-stage dry disc (gear)Reference
Clutchwet discs (hydro)Reference
Rear PTO Type540 (1.375)Reference
Mid PTOoptionalReference
Mid PTOstandard (with hydro)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase166 cmReference
Weight2013 to 2345 poundsReference
Rear tire12.5/80-18Reference
Ag rear12.5/80-18Reference
Industrial front12.5/80-18Reference
Length295 cmReference
Width139 cmReference
Height (ROPS)201 cmReference
Weight913 kgReference
Weight1063 kgReference
2WD Front tread91 to 101 cmReference
4WD Front tread96 cmReference
Rear tread109 cmReference
Massey Ferguson 1428 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
1428 Serial Numbers
2002LP0001Reference
2003MP0001Reference
2004NP0001Reference
2005P0001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
The Massey Ferguson 1428 was advertised as compatible with 60-inch rear rotary mowers, 72-inch rear finish mowers, 60-inch box blades, and 60-inch tillers.Reference
Massey Ferguson 1470 Backhoe
Backhoe typeMassey Ferguson 1470 BackhoeReference
Digging depth198 cmReference
Reach from pivot259 cmReference
Bucket Rotation165°Reference
Swing Arc180°Reference
Bucket force1088 kgReference
Dipperstick force657 kgReference
Massey Ferguson 1475 Backhoe
Backhoe typeMassey Ferguson 1475 BackhoeReference
Digging depth228 cmReference
Reach from pivot284 cmReference
Bucket Rotation165°Reference
Swing Arc180°Reference
Bucket force1474 kgReference
Dipperstick force861 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
