Tractor · 2004Unverified

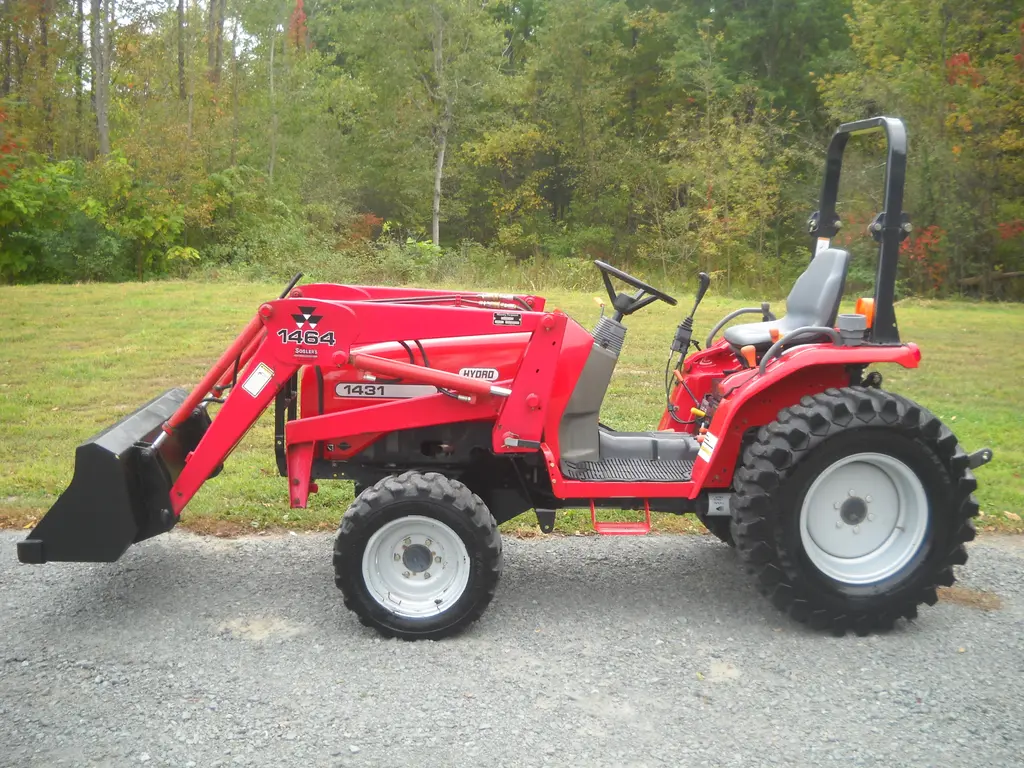

Massey Ferguson 1431
Massey Ferguson 1431 — Compact Utility tractor · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1068 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine (gross)24.6 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
EmissionsTier 2Reference
Power (gross)24.6 kWReference
Fuel systemindirect injectionReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)19.3 kWReference
Typeopen centerReference
Pressure147.1 barReference
Pump flow29.1 lpmReference
Total flow39.4 lpmReference
Steering flow10.2 lpmReference
Rear TypeIReference
Controlposition and response control, draft control optionalReference
Rear lift (at ends)1099 kgReference
Rear Armsfixed link ends with turn-buckle stabilizersReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540Reference
Mid PTOstandardReference
Mid PTO Type2000Reference
Dimensions
Wheelbase166 cmReference
Weight1068 kgReference
Industrial front12.5/80-18Reference
Length295 cmReference
Width129 cmReference
Height201 cmReference
Front tread107 cmReference
Rear tread96 cmReference
Massey Ferguson 1431 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
1431 Serial Numbers
2004NY0001Reference
2005P0001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
The Massey Ferguson 1431 was advertised as compatible with 60-inch rear rotary mowers, 72-inch rear finish mowers, 60-inch box blades, and 60-inch tillers.Reference
Massey Ferguson 1470 Backhoe
Backhoe typeMassey Ferguson 1470 BackhoeReference
Digging depth198 cmReference
Reach from pivot259 cmReference
Bucket Rotation165°Reference
Swing Arc180°Reference
Bucket force1088 kgReference
Dipperstick force657 kgReference
Massey Ferguson 1475 Backhoe
Backhoe typeMassey Ferguson 1475 BackhoeReference
Digging depth228 cmReference
Reach from pivot284 cmReference
Bucket Rotation165°Reference
Swing Arc180°Reference
Bucket force1474 kgReference
Dipperstick force861 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
