Tractor · 2002Unverified

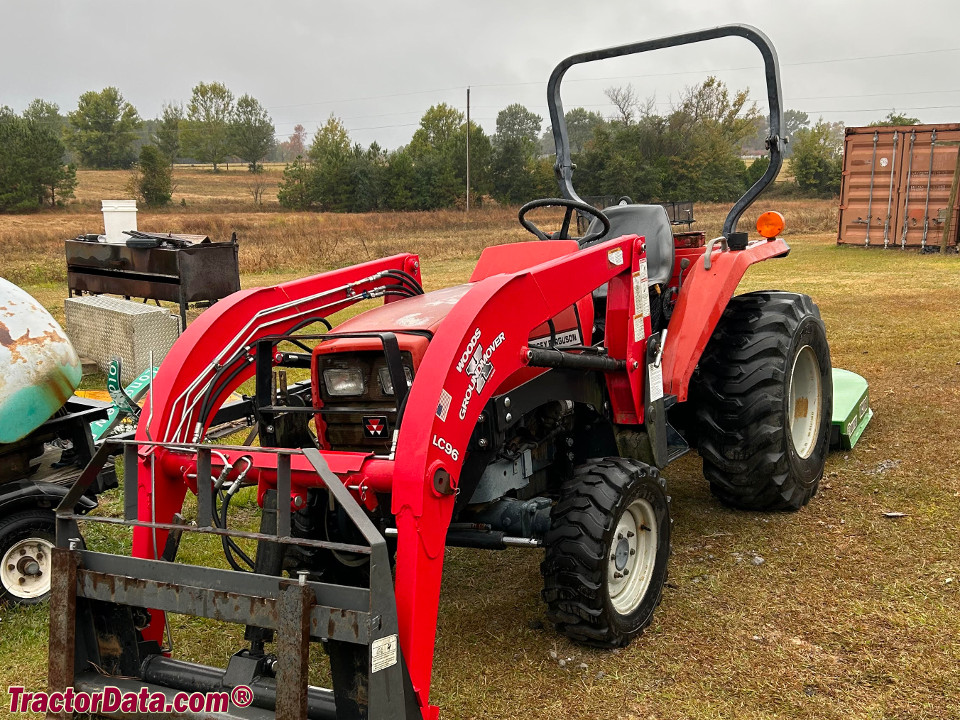

Massey Ferguson 1433
Massey Ferguson 1433 — Compact Utility tractor · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1274 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Soft-side weather cab optional. Fixed ROPS on 1433V.Reference
Variants
1433Vvalue modelReference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine (gross)24.6 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
EmissionsTier 2Reference
Power (gross)24.6 kWReference
Fuel systemindirect injectionReference
Rated RPM2600Reference
Starter volts12Reference
Transmission
16-speedReference
hydrostaticReference
8-speedReference
TransmissionSynchroShuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
TransmissionPowerShuttleReference
Clutchwet discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Gears8 forward and reverseReference
The 8-speed shuttle was used on the 1433V.Reference
PTO & Hydraulics
Gear PTO (claimed)20.1 kWReference
Hydro PTO (claimed)19.6 kWReference
Typeopen centerReference
Pressure146.9 barReference
Pump flow29.1 lpmReference
Total flow46.2 lpmReference
Steering flow17.0 lpmReference
Rear TypeIReference
Controlposition and response control, draft control optionalReference
Rear lift (at ends)1250 kgReference
Rear Armstelescopic stabilizersReference
Rear Armsfixed link ends (1433V)Reference
Rear Armstelescopic link ends (deluxe)Reference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase173 cmReference
Weight1274 kgReference
Rear tire15-19.5Reference
Ag rear15-19.5Reference
Length308 cmReference
Width140 cmReference
Height (ROPS)234 cmReference
Height (Folded ROPS)176 cmReference
Front tread108 cmReference
Rear tread109 to 141 cmReference
Massey Ferguson 1433 attachments
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
1433 Serial Numbers
2002LG0001Reference
2003MG0001Reference
2004NG0001Reference
2005P0001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
The Massey Ferguson 1433 was advertised as compatible with 72-inch rear rotary mowers, 84-inch rear finish mowers, 72-inch box blades, and 72-inch tillers.Reference
72" Mower deck
Typemid-mount Massey Ferguson 1432Reference
Type3-bladeReference
Cutting width182 cmReference
Overall width228 cmReference
Cut height5 to 10 cmReference
Cut positions5Reference
Massey Ferguson 1475 Backhoe
Backhoe typeMassey Ferguson 1475 BackhoeReference
Digging depth228 cmReference
Reach from pivot284 cmReference
Bucket Rotation165°Reference
Swing Arc180°Reference
Bucket force1474 kgReference
Dipperstick force861 kgReference
Massey Ferguson 1480 Backhoe
Backhoe typeMassey Ferguson 1480 BackhoeReference
Digging depth254 cmReference
Reach from pivot322 cmReference
Bucket Rotation165°Reference
Swing Arc180°Reference
Bucket force1886 kgReference
Dipperstick force1179 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
