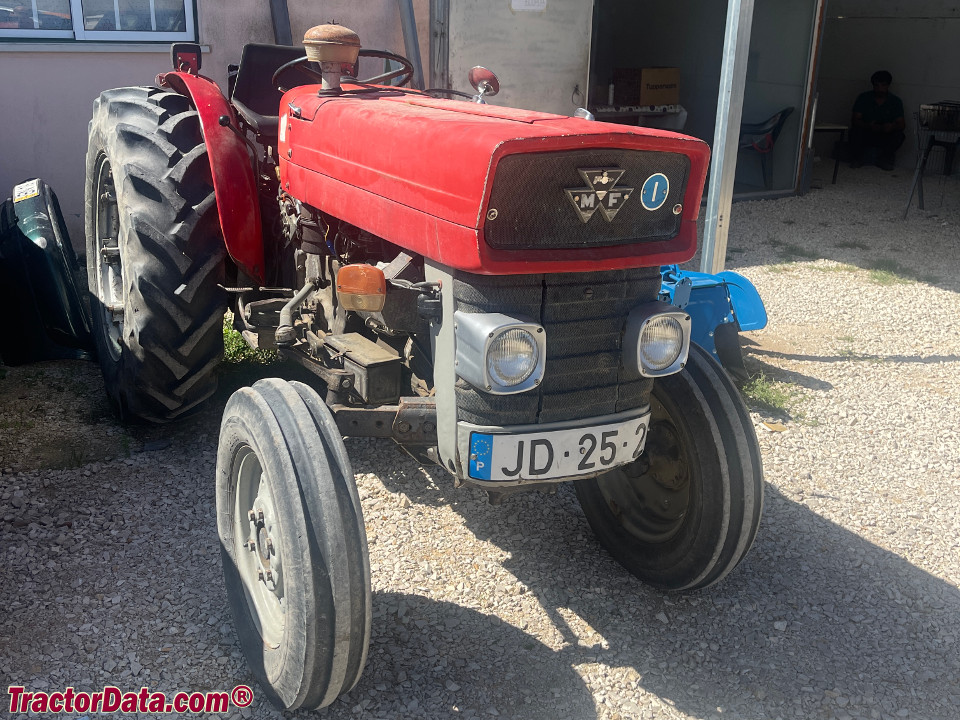

The Massey Ferguson 145 is a 47 hp tractor, positioning it at the lighter end of its class. First introduced in 1965, it features a 3-cylinder diesel liquid-cooled engine, paired with two-wheel drive and a powershift transmission. The tractor has an operating weight of 1650 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
1650 kg
Catalogue coverage
Variants represented
2
Richest spec table
54 rows
Recorded power
47 hp
Recorded weight
1650 kg
Transmissions
6-speed gear
Production years
1965-1965
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in FranceReference
Two-wheel driveReference
Final drivesplanetaryReference
Disc brakesReference
Open operator stationReference
Variants
145Vnarrow chassisReference
Engine
Perkins 2.5L 3-cyl dieselReference
Fuel tank48.1 LReference
Engine35.0 kWReference
Perkins AD 3.152Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power35.0 kWReference
Compression18.5:1Reference
Rated RPM2250Reference
Torque166.8 NmReference
Torque RPM1300Reference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity10.2 LReference
Transmission
6-speed gearReference
12-speed two-speed power shiftReference
TypegearReference
Gears6 forward and 2 reverseReference
TransmissionMulti-PowerReference
Typetwo-speed power shiftReference
Gears12 forward and 2 reverseReference
PTO & Hydraulics
Total flow20.4 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1236 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase182 cmReference
Weight1650 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Ag front6.00-19Reference
Ag rear12-28Reference
Ag rear11-32Reference
Length299 cmReference
Width173 cmReference
Height138 cmReference
Ground clearance32 cmReference
Front tread121 to 202 cmReference
Rear tread132 to 202 cmReference
Speeds
With 11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
