Tractor · Unverified

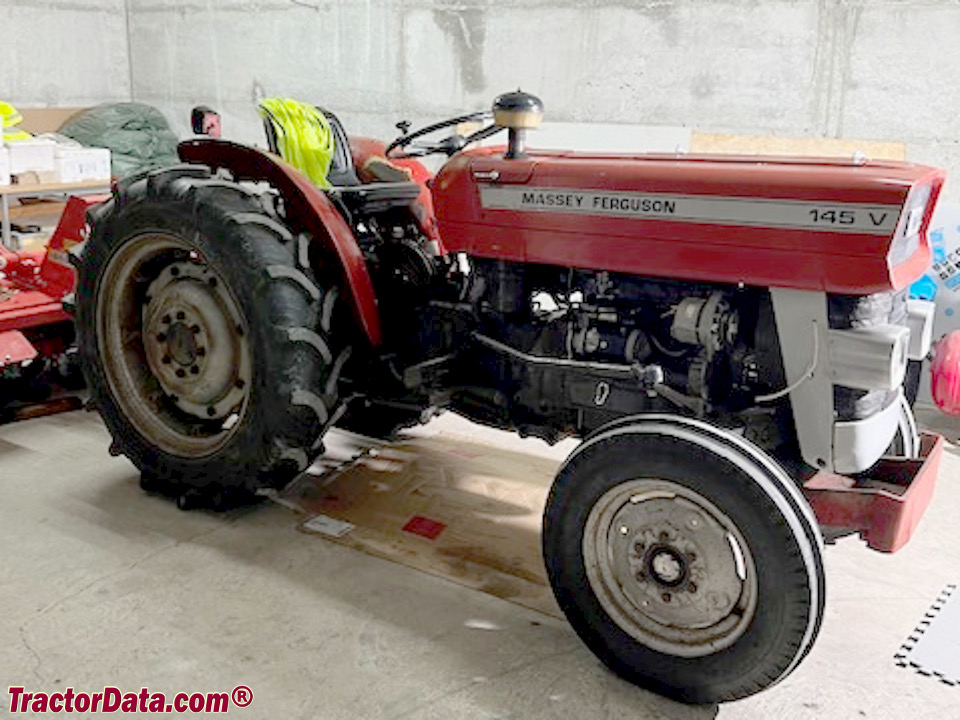

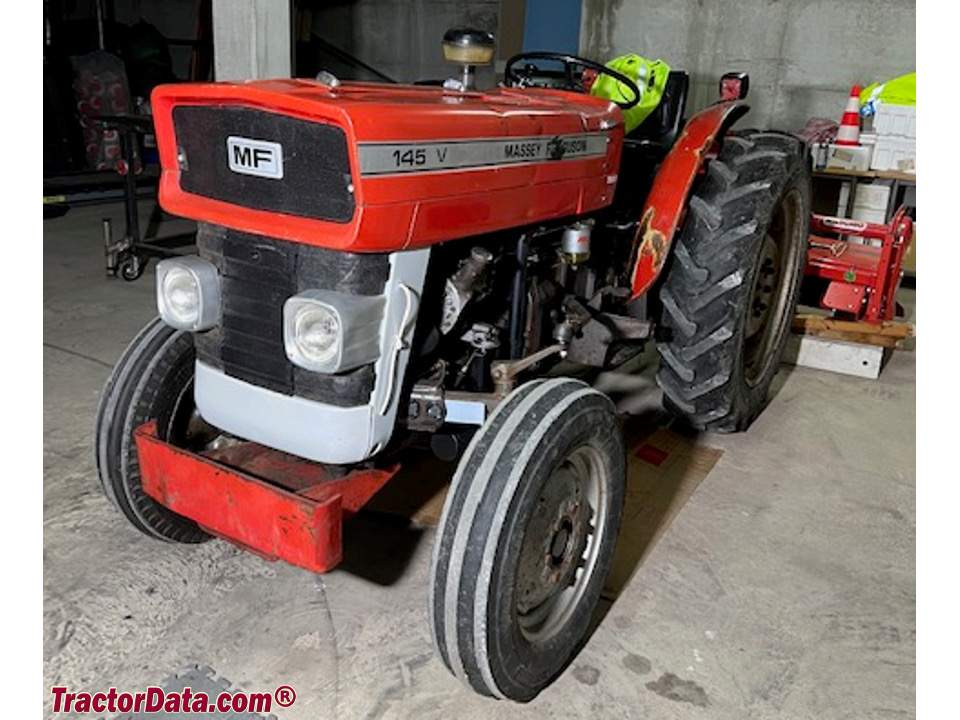

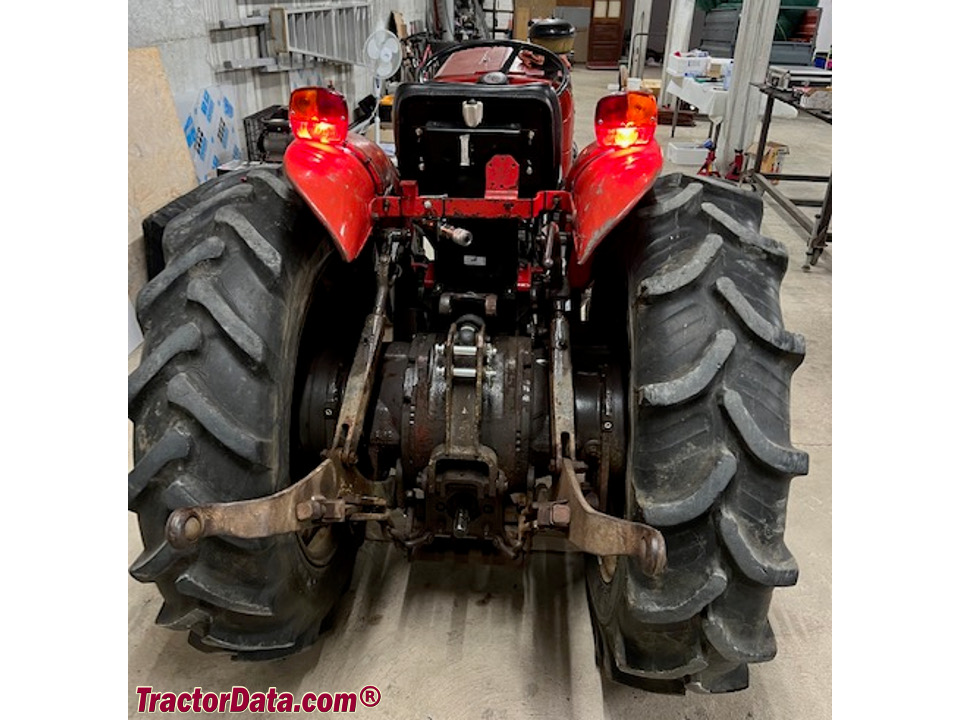

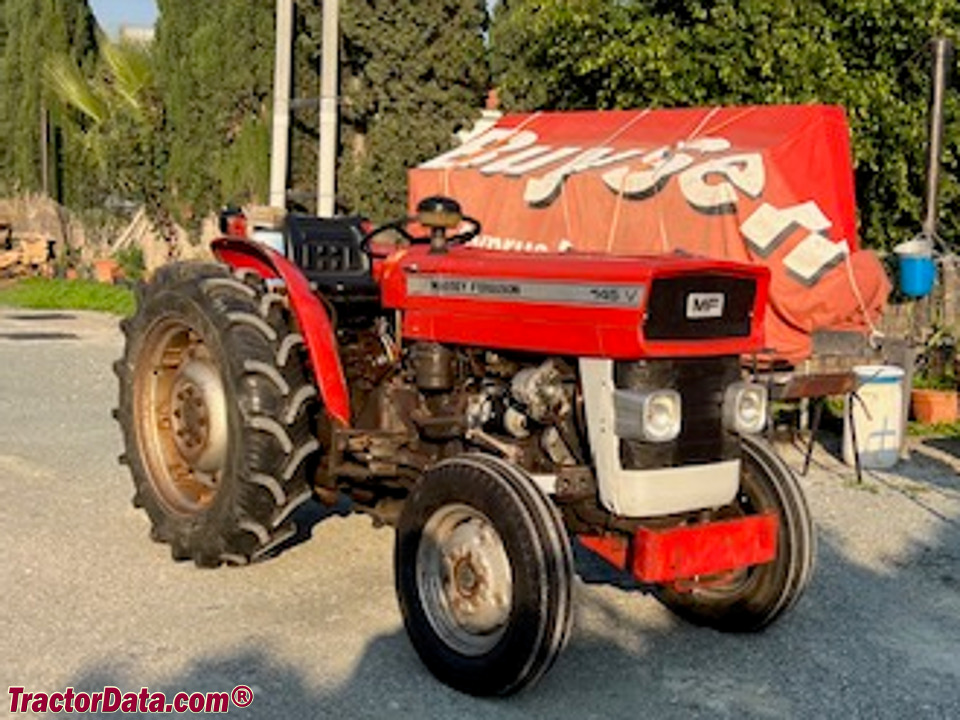

Massey Ferguson 145V

Name: Massey Ferguson 145V
Brand: Massey Ferguson

Massey Ferguson 145V — Orchard/Vineyard tractor · 38 hp. Reference specifications; pending source verification.

The Massey Ferguson 145V is a tractor with a rated output of 38 hp — making it one of the more compact options in its class. It is powered by a 3-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 8-speed gearbox. Listed weight is 1692 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

38 hp

Weight

1692 kg

Catalogue coverage

Variants represented

Richest spec table

45 rows

Recorded power

38 hp

Recorded weight

1692 kg

Transmissions

8-speed

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Orchard/Vineyard tractorReference

Two-wheel driveReference

Manual steeringReference

Wet disc brakesReference

Open operator station.Reference

Engine

Perkins 2.5L 3-cyl dieselReference

Fuel tank48.1 LReference

Engine33.0 kWReference

Perkins AD 3.152Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.5 LReference

Bore/Stroke91 x 127 mmReference

Power33.0 kWReference

Fuel systemdirect injectionReference

Pre-heatingthermostartReference

Compression18.5:1Reference

Rated RPM2250Reference

Torque166.8 NmReference

Torque RPM1300Reference

Starter typeelectricReference

Oil capacity6.6 LReference

Coolant capacity11.4 LReference

Transmission

8-speedReference

Gears8 forward and 2 reverseReference

Oil capacity39.0 LReference

PTO & Hydraulics

PTO (claimed)28.1 kWReference

Pressure172.4 barReference

Pump flow17.0 lpmReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1684Reference

Dimensions

Wheelbase182 cmReference

Weight1692 kgReference

Front tire6.00-16Reference

Rear tire11.2/10-28Reference

Ag front6.00-16Reference

Ag rear11.2/10-28Reference

Length304 cmReference

Width104 cmReference

Height (steering wheel)137 cmReference

Front tread93 to 114 cmReference

Rear tread76 to 132 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
