Tractor · 1980Unverified

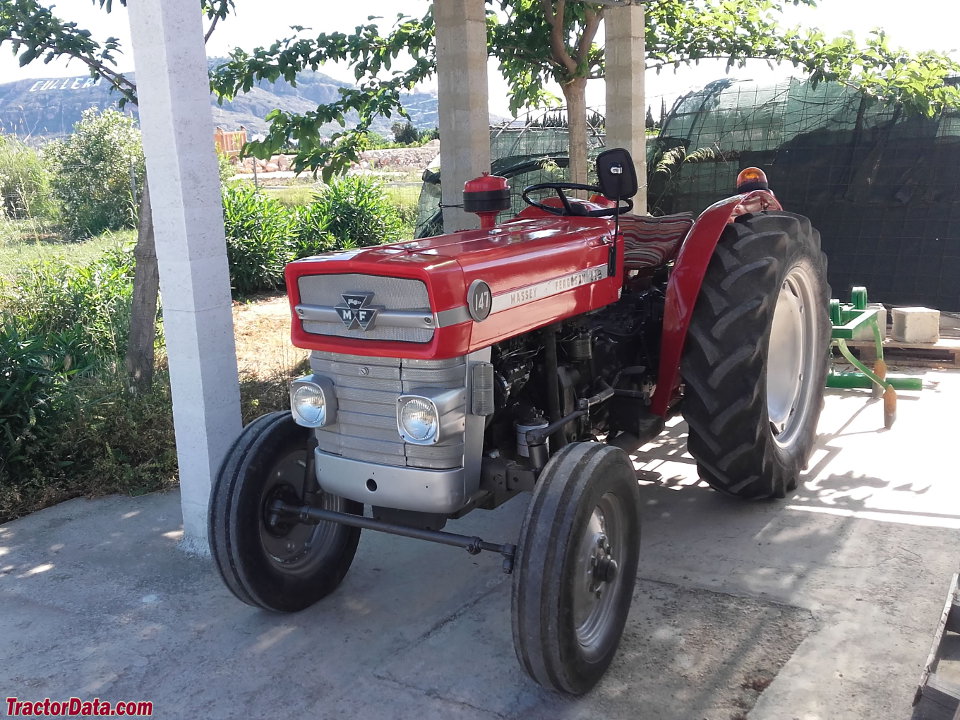

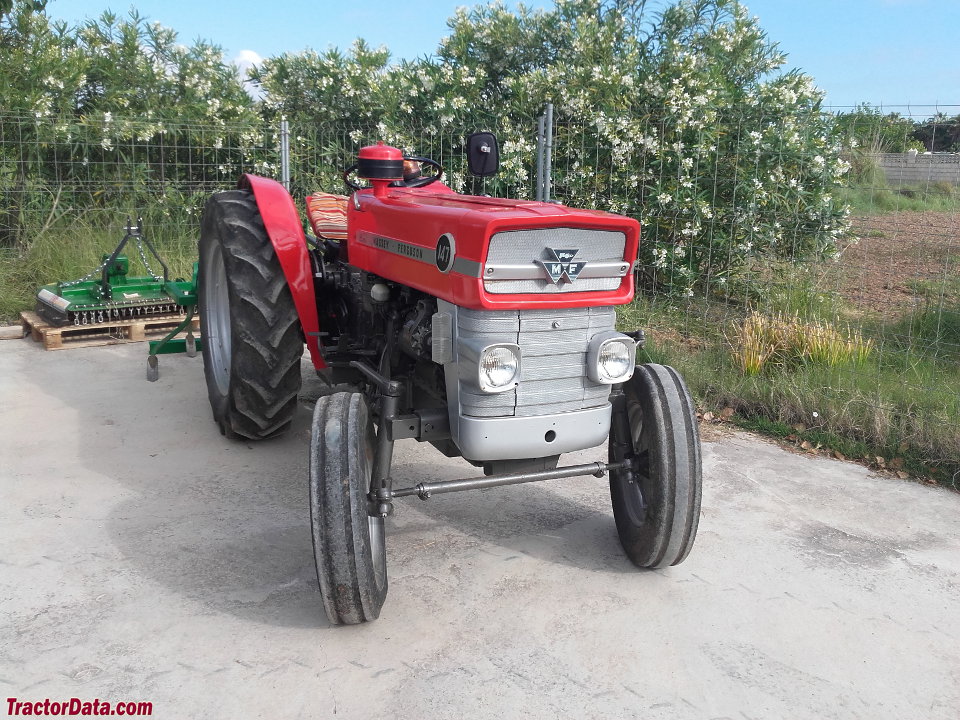

Massey Ferguson 147

Name: Massey Ferguson 147
Brand: Massey Ferguson

Massey Ferguson 147 · 45 hp. Reference specifications; pending source verification.

The Massey Ferguson 147 is a tractor model rated at 45 hp — making it one of the more compact options in its class. This model was manufactured in 1980. Power comes from a 3-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 8-speed gearbox. It is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Catalogue coverage

Variants represented

Richest spec table

39 rows

Recorded power

45 hp

Transmissions

8-speed

Production years

1980-1980

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Built in SpainReference

Two-wheel driveReference

Drum brakesReference

Open operator station.Reference

Engine

Perkins 2.5L 3-cyl dieselReference

Perkins AD3.152SReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.5 LReference

Bore/Stroke91 x 127 mmReference

Air cleaneroil bathReference

Compression18.5:1Reference

Starter volts12Reference

Oil capacity6.0 LReference

Coolant capacity10.3 LReference

Transmission

8-speedReference

Gears8 forward and 2 reverseReference

Clutchdry discReference

PTO & Hydraulics

PTO (claimed)33.6 kWReference

Hydraulic system29.9 LReference

Capacity29.9 LReference

Rear PTOlive (two-stage clutch)Reference

Rear PTO Type540Reference

Capacities

Fuel38.6 LReference

Dimensions

Wheelbase182 cmReference

Front tire5x15Reference

Rear tire11x28Reference

Ag front5x15Reference

Ag rear11x28Reference

Ag front5.5x16Reference

Ag rear10x28Reference

Ag rear12x28Reference

Length299 cmReference

Width124 cmReference

Height (steering wheel)138 cmReference

Front tread101 to 130 cmReference

Rear tread92 to 130 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
