Tractor · 2018Unverified

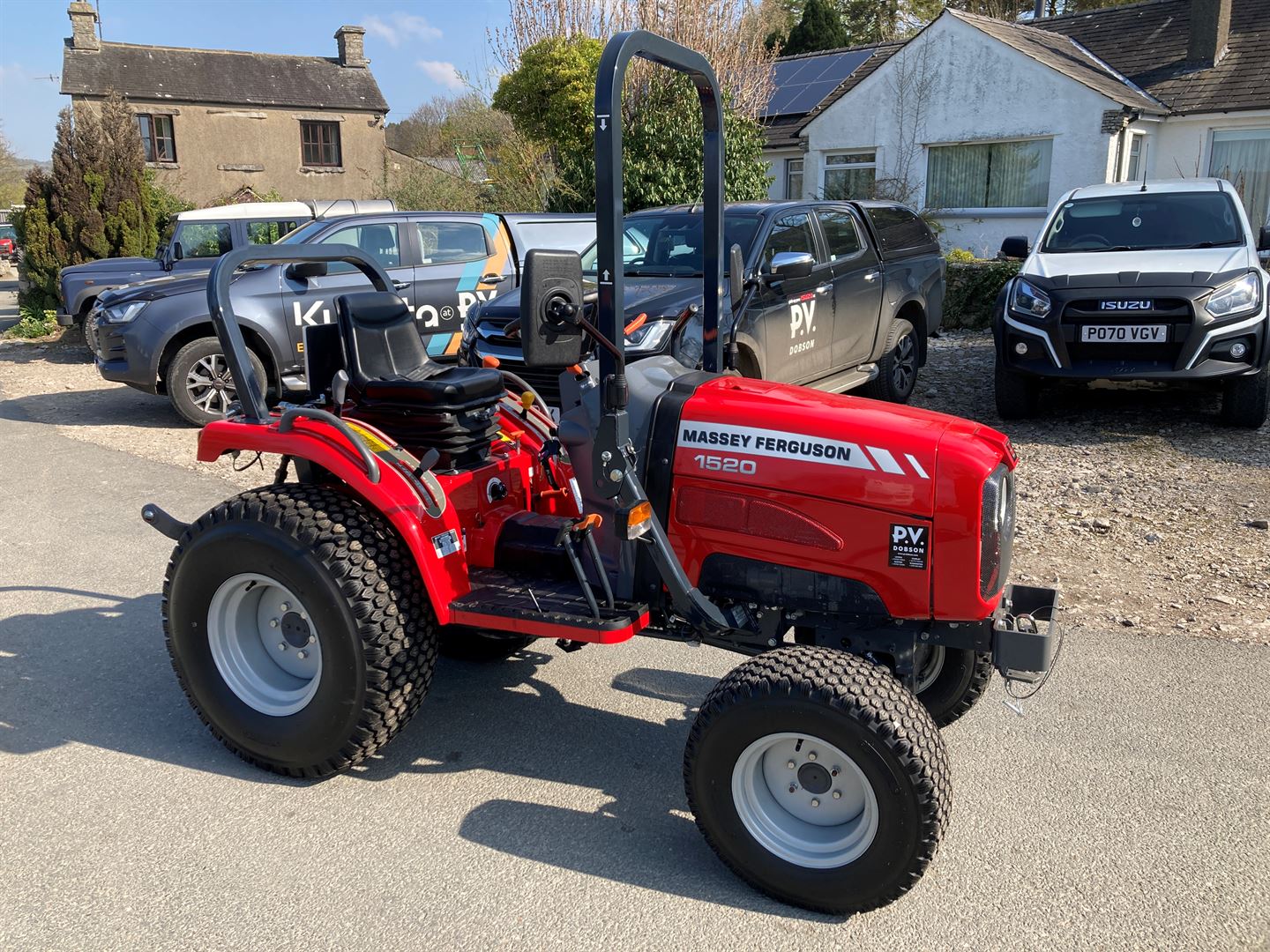

Massey Ferguson 1520
Massey Ferguson 1520 — Compact Utility tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
669 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post mid-mount ROPS.Reference
Variants
TM3215similar Iseki modelReference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine14.5 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
EmissionsStage 5Reference
Power14.5 kWReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
Clutchmechanical dry discReference
PTO & Hydraulics
PTO (claimed)12.4 kWReference
Typeopen centerReference
Pump flow20.1 lpmReference
Rear TypeIReference
Rear lift (at ends)539 kgReference
Rear lift (at 24"/610mm)400 kgReference
Rear PTOliveReference
ClutchmechanicalReference
Rear PTO Type540 (1.375)Reference
Mid PTOliveReference
Dimensions
Wheelbase157 cmReference
Weight669 kgReference
Front tire6.0-12Reference
Rear tire9.5-16Reference
Standard tires (ag)Front: 6.0-12. Rear: 9.5-16Reference
Optional tires (ag)Front: 5.0-12. Rear: 8.0-16Reference
Lawn/turf front24x8.5-12Reference
Lawn/turf rear315x75D-15Reference
Length276 cmReference
Width100 cmReference
Height (ROPS)201 cmReference
Ground clearance27 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
