Tractor · 2005Unverified

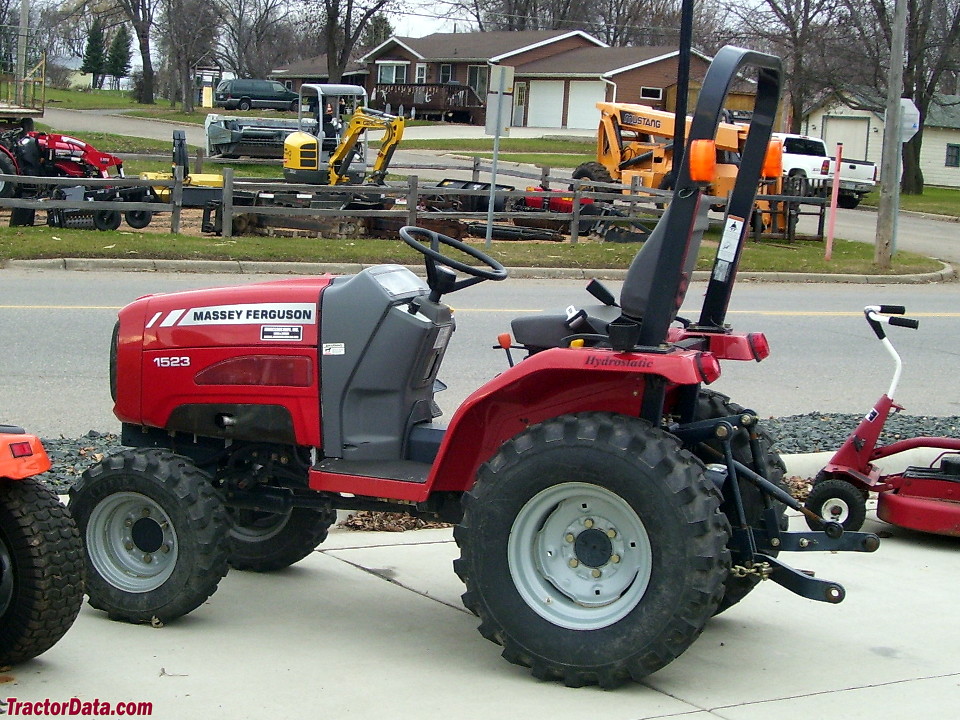

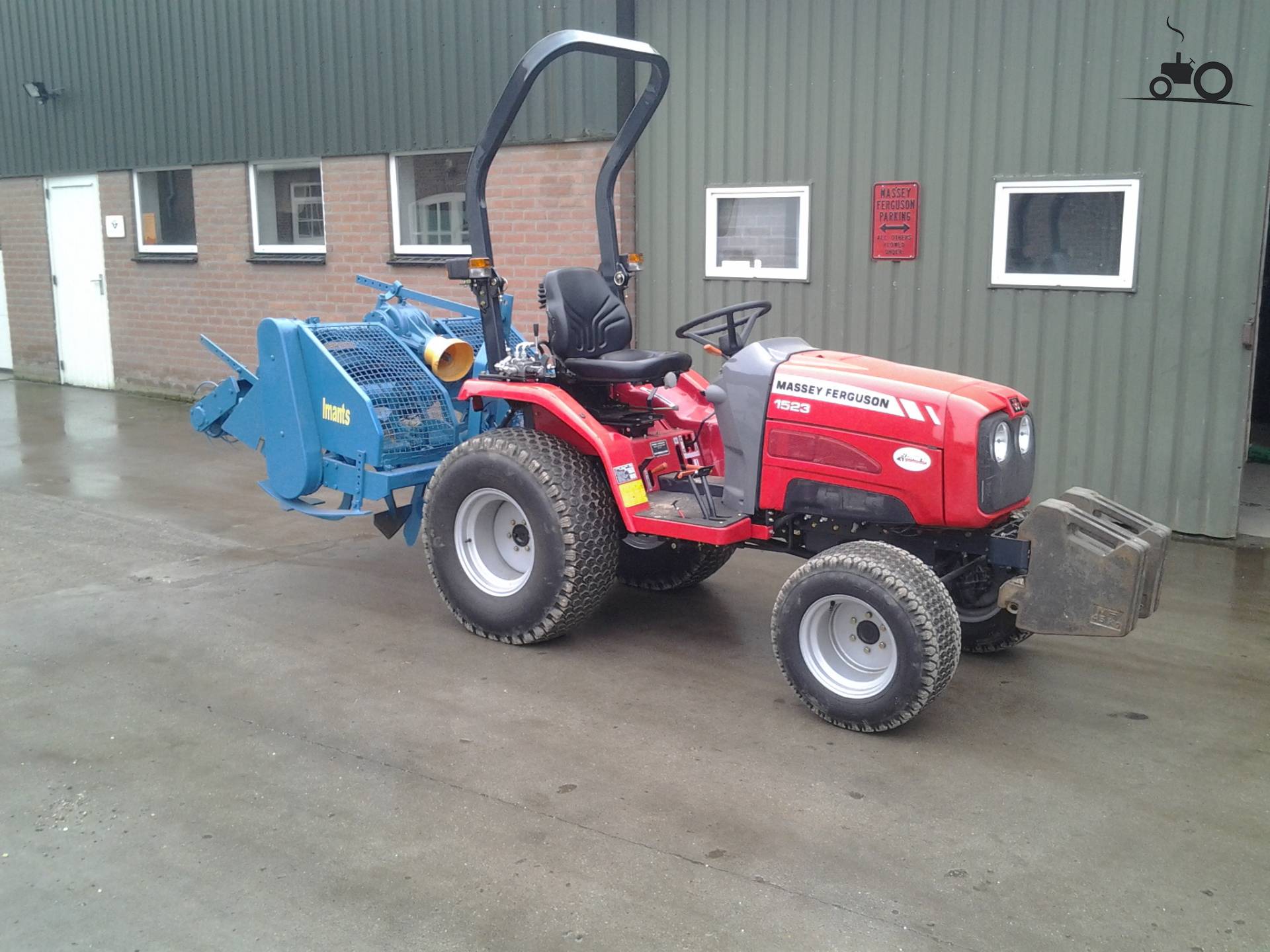

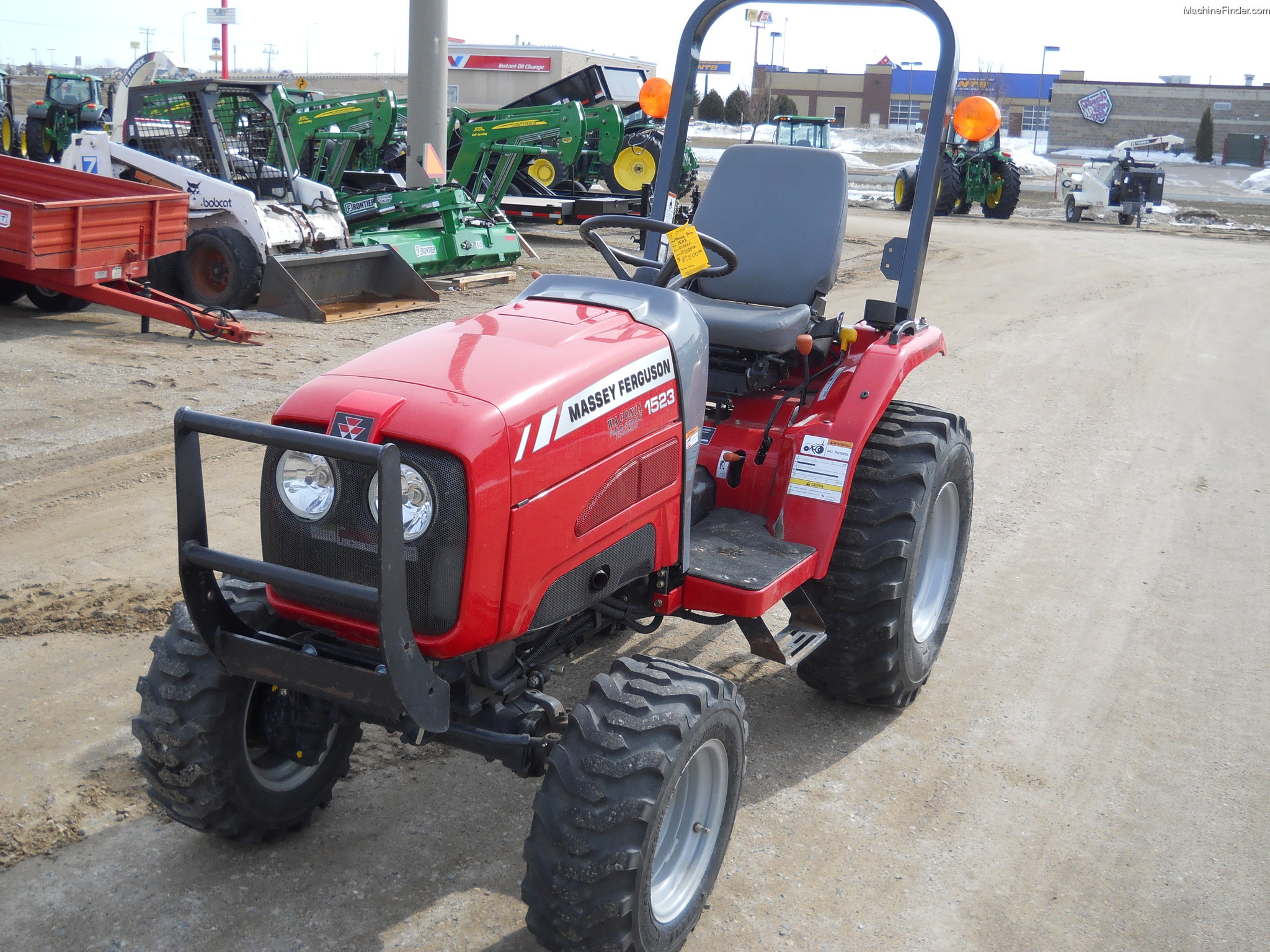

Massey Ferguson 1523
Massey Ferguson 1523 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
694 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Original price$10,661 (2009 gear )Reference
Original price$12,186 (2009 hydrostatic )Reference
Four-wheel driveReference
Wet disc brakesReference
Two-post fixed ROPS.Reference
Engine
Iseki 1.1L 3-cyl dieselReference
Engine (gross)16.8 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)16.8 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.7 LReference
Coolant capacity7.1 LReference
Transmission
6-speed gearReference
hydrostaticReference
TypegearReference
Gears6 forward and 2 reverseReference
Oil capacity13.5 LReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity14.0 LReference
PTO & Hydraulics
Gear PTO (claimed)13.9 kWReference
Hydro PTO (claimed)13.1 kWReference
Typeopen centerReference
ValvesNoneReference
Pump flow20.4 lpmReference
Total flow30.4 lpmReference
Steering flow10.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)539 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Capacities
Fuel25.0 LReference
Front axle2.7 LReference
Max capacity1399 kgReference
Dimensions
Wheelbase151 cmReference
Weight694 kgReference
Front tire6.00-12Reference
Rear tire9.5-16Reference
Standard tires (ag)Front: 6.00-12. Rear: 9.5-16Reference
Lawn/turf front23x10.50-12Reference
Lawn/turf rear33x12.50-16.5Reference
Industrial front23x8.50-12Reference
Industrial rear12x16.5Reference
Length259 cmReference
Width107 cmReference
Height195 cmReference
Ground clearance26 cmReference
Front tread77 cmReference
Rear tread81 cmReference
Shipping694 kgReference
Max front axle650 kgReference
Max rear axle1399 kgReference
Massey Ferguson 1523 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery CCA433Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
