Tractor · 2018Unverified

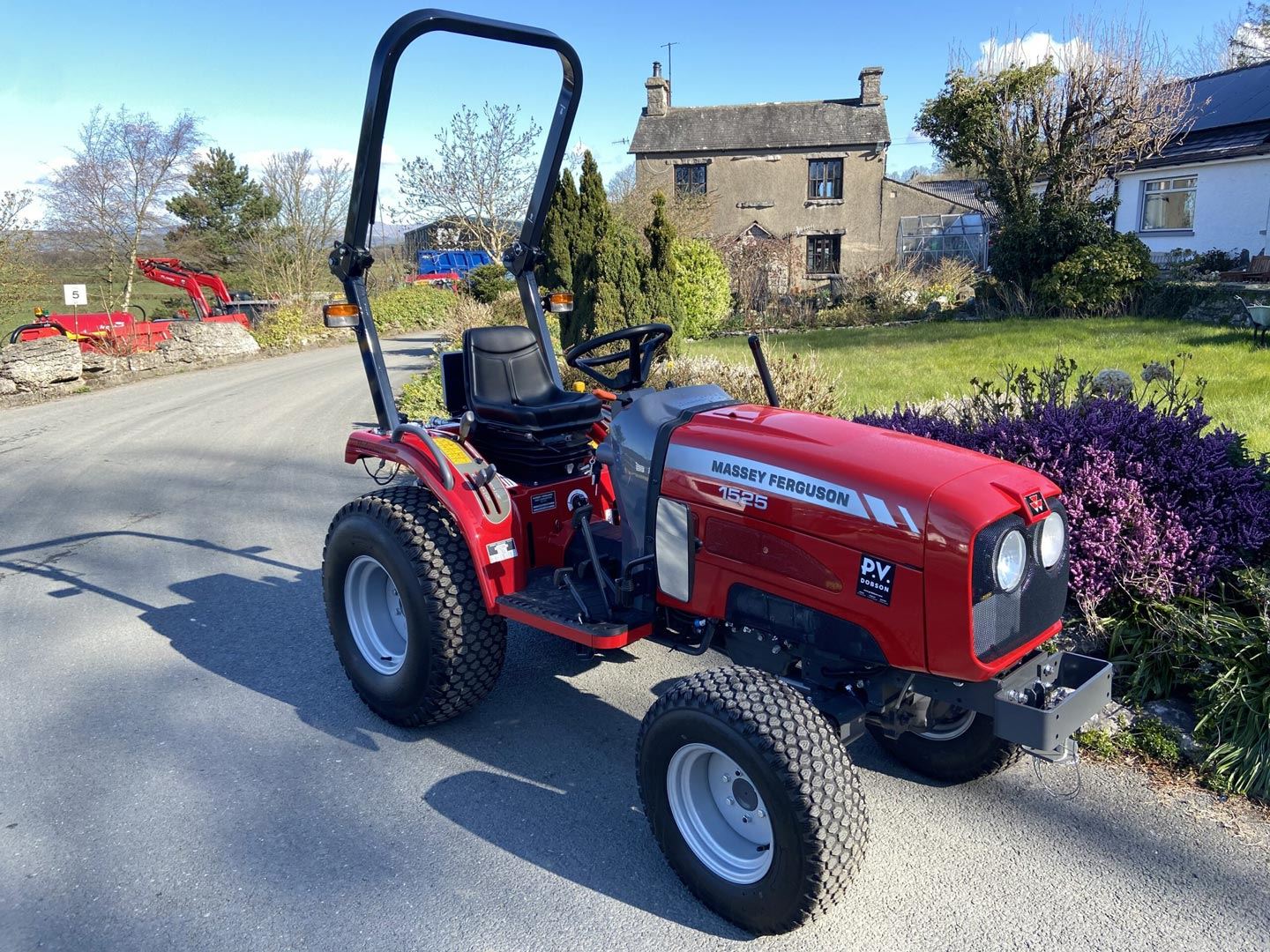

Massey Ferguson 1525
Massey Ferguson 1525 — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
850 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Two-post folding ROPS.Reference
Variants
TM3265similar Iseki modelReference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine18.6 kWReference
IsekiReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
EmissionsStage 5Reference
Power18.6 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow20.8 lpmReference
Rear TypeIReference
Rear lift (at ends)600 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Dimensions
Wheelbase155 cmReference
Weight850 kgReference
Front tire6.0-12Reference
Rear tire9.5-16Reference
Standard tires (ag)Front: 6.0-12. Rear: 9.5-16Reference
Lawn/turf front24x8.5-12Reference
Lawn/turf rear315x75D-15Reference
Length293 cmReference
Width109 cmReference
Height (ROPS)242 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
