Tractor · 2011Unverified

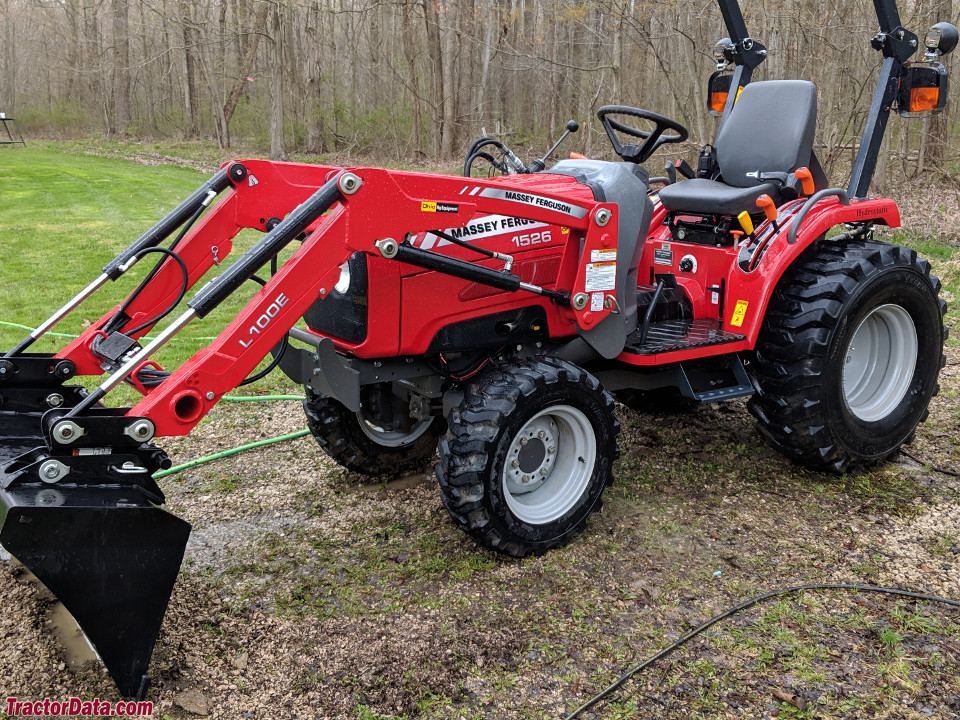

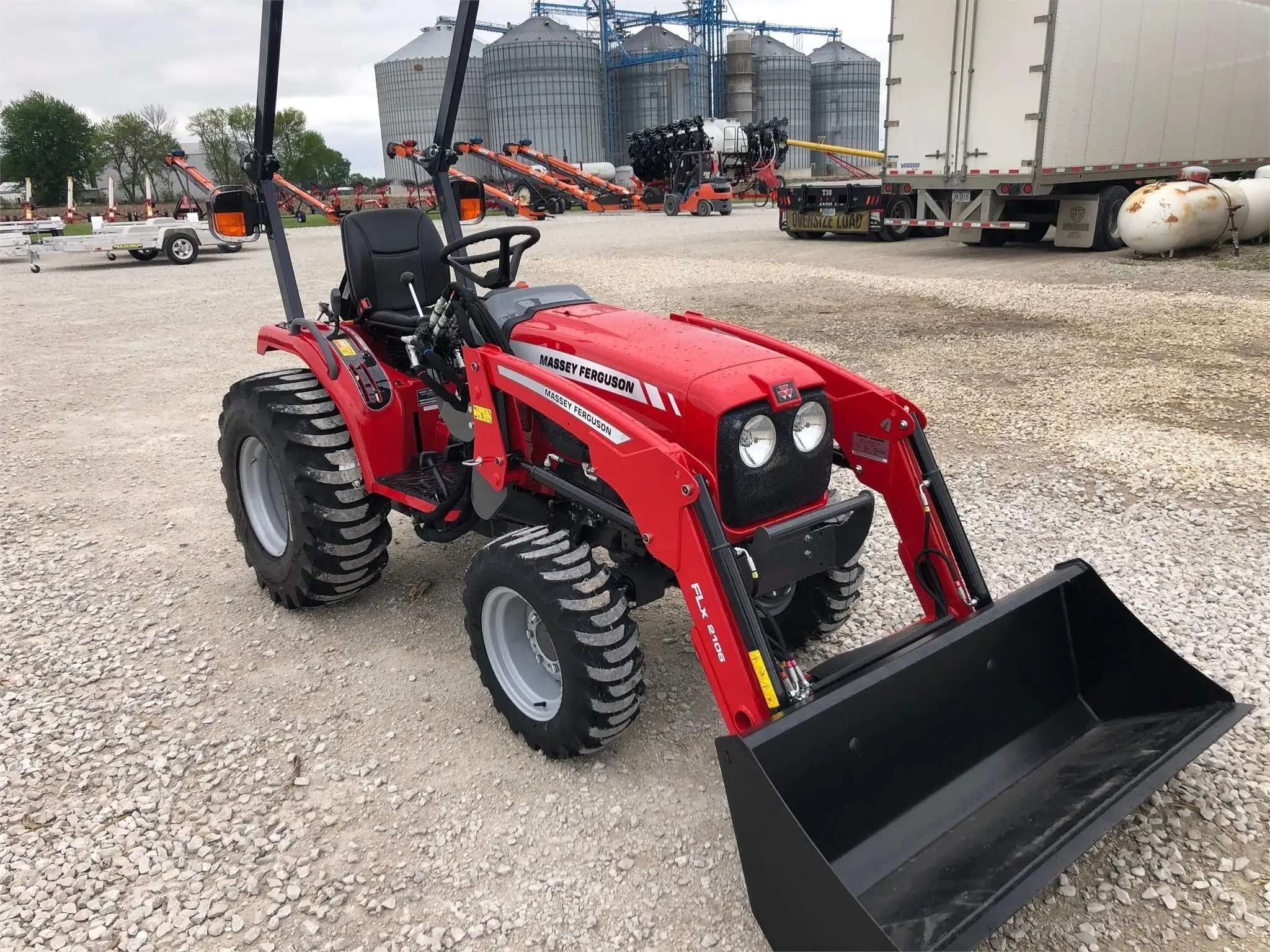

Massey Ferguson 1526

Name: Massey Ferguson 1526
Brand: Massey Ferguson

Massey Ferguson 1526 — Model year 2011-20142016-2024 · 25 hp. Reference specifications; pending source verification.

The Massey Ferguson 1526 is a tractor model with a power output of approximately 25 hp, positioning it within the lighter category of its class. Produced between 2011 and 2024, it is equipped with a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. The operating weight of the tractor ranges from 1873 to 2077 pounds, and it is suitable for operations on areas up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

1873 to 2077 pounds

Catalogue coverage

Variants represented

Richest spec table

90 rows

Recorded power

25 hp

Recorded weight

849 kg

Transmissions

hydrostatic

Production years

2011-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Compact Utility tractorReference

Original price was $15,968 in 2017Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Iseki 1.5L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine (gross)18.5 kWReference

IsekiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke87 x 84 mmReference

EmissionsTier IVReference

Power (gross)18.5 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.43x3.31 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeHSTReference

forward and reverse optionsInfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)15.0 kWReference

Typeopen centerReference

Rear valves1Reference

SCV flow20.8 lpmReference

Total flow32.9 lpmReference

Steering flow12.1 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)599 kgReference

Rear lift (at 24"/610mm)449 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase155 cmReference

Weight1873 to 2077 poundsReference

Front tire7-12Reference

Rear tire35x12.00-16.5Reference

Standard tires (ag)Front: 7-12. Rear: 35x12.00-16.5Reference

Standard tires (ag)Front: 7-12. Rear: 9.5-16Reference

Lawn/turf front25x8.50-14Reference

Lawn/turf rear36x13.50-15Reference

Industrial front25x8.50-14Reference

Industrial rear14-17Reference

Length281 cmReference

Width139 cmReference

Height (ROPS)244 cmReference

Shipping weight849 kgReference

Operating weight942 kgReference

Ground clearance29 cmReference

Massey Ferguson 1526 attachments

60" mid-mount mower deckReference

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

Front-end loaderReference

60" Mower deck

Typemid-mount Massey FergusonReference

Cutting width152 cmReference

General

Make & ModelMassey FergusonReference

Rollover protective structureTwo-post foldable ROPS.Reference

Capacities

Capacity91.4 ciReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

BrakesWet disc brakesReference

Steering typePower steeringReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves1 ValveReference

Steering & Implements flow3.2 gpm (5.5 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity599.6 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Height Over ROPS244.1 cmReference

Overall Height242.6 cmReference

Overall Length281.9 cmReference

Overall Width140 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
